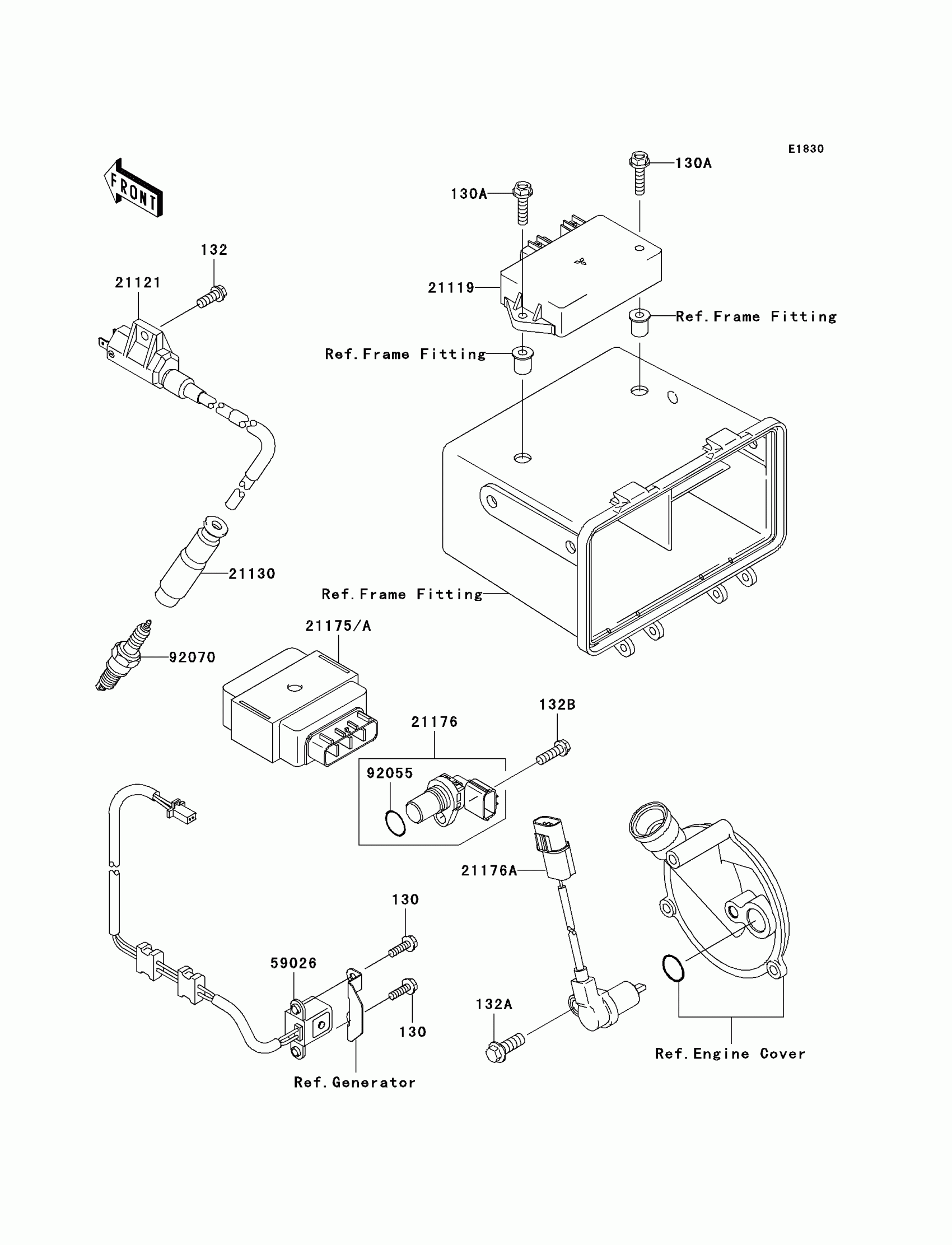

Kawasaki Prairie 360 4X4 Hardwoods Green HD Ignition System Diagram

Description

Price

130

BOLT-FLANGED

130G0516

$0.85

130A

BOLT-FLANGED,6X25

130J0625

$2.62

132

BOLT-FLANGED-SMALL

132H0616

$1.47

132A

BOLT-FLANGED-SMALL,8X22

132H0822

$2.52

132B

BOLT-FLANGED-SMALL,6X20

132Y0620

$3.84

21119

IGNITER

21119-1627

$640.45

21121

COIL-IGNITION

21121-1160

$156.27

21130

CAP-SPARK PLUG

21130-1071

$37.46

21175

CONTROL UNIT-ELECTRONIC

21175-0045

$580.42

21176

SENSOR,SPEED

21176-1104

$118.31

21176A

SENSOR,REVERSE

21176-1109

$109.78

59026

COIL-PULSING

59026-1110

$138.14

92055

RING-O

92055-1718

$2.41

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

$3.46
