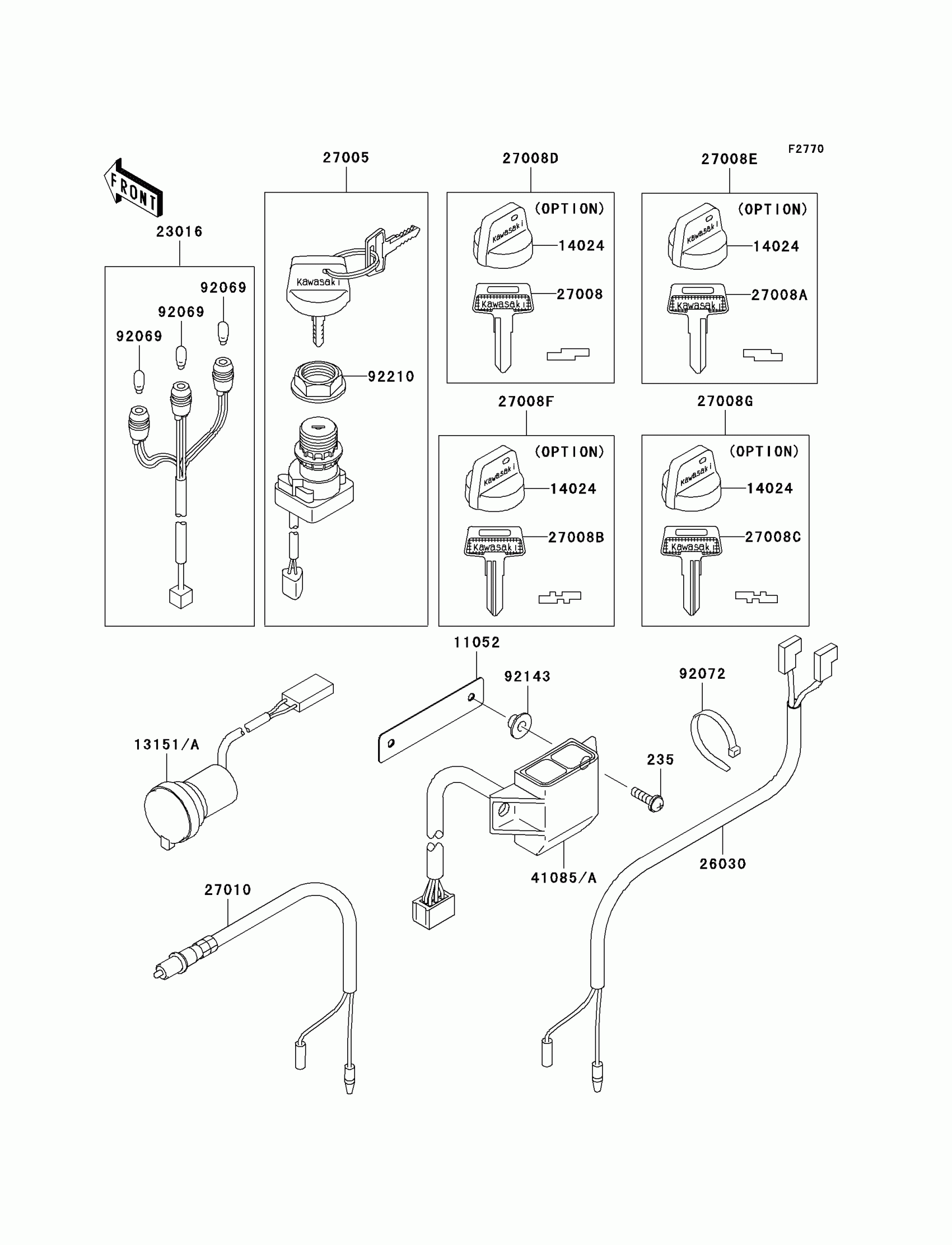

Kawasaki Prairie 360 4X4 Hardwoods Green HD Ignition Switch Diagram

Description

Price

235

SCREW-PAN-WP-CROS

235C0516

$1.20

11052

BRACKET

11052-7530

$7.99

13151

SWITCH-COMP,D.C.TERMINAL

13151-0004

$135.00

14024

COVER,KEY

14024-1551

$6.29

23016

LAMP-ASSY

23016-1151

$69.27

26030

HARNESS

26030-1058

$17.71

27005

SWITCH-ASSY-IGNITION

27005-1229

$122.45

27008

KEY-LOCK,BLANK

27008-1041

$17.98

27008A

KEY-LOCK,BLANK

27008-1042

$17.98

27008B

KEY-LOCK,BLANK

27008-1043

$17.98

27008C

KEY-LOCK,BLANK

27008-1044

$17.98

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$18.72

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$18.72

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$18.72

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$18.72

27010

SWITCH,BRAKE

27010-1294

$35.18

41085

INDICATOR

41085-0003

$498.76

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=149

92072-031

$5.00

92143

COLLAR

92143-1057

$5.00

92210

NUT,IGNITION SWITCH

92210-1109

$6.22
