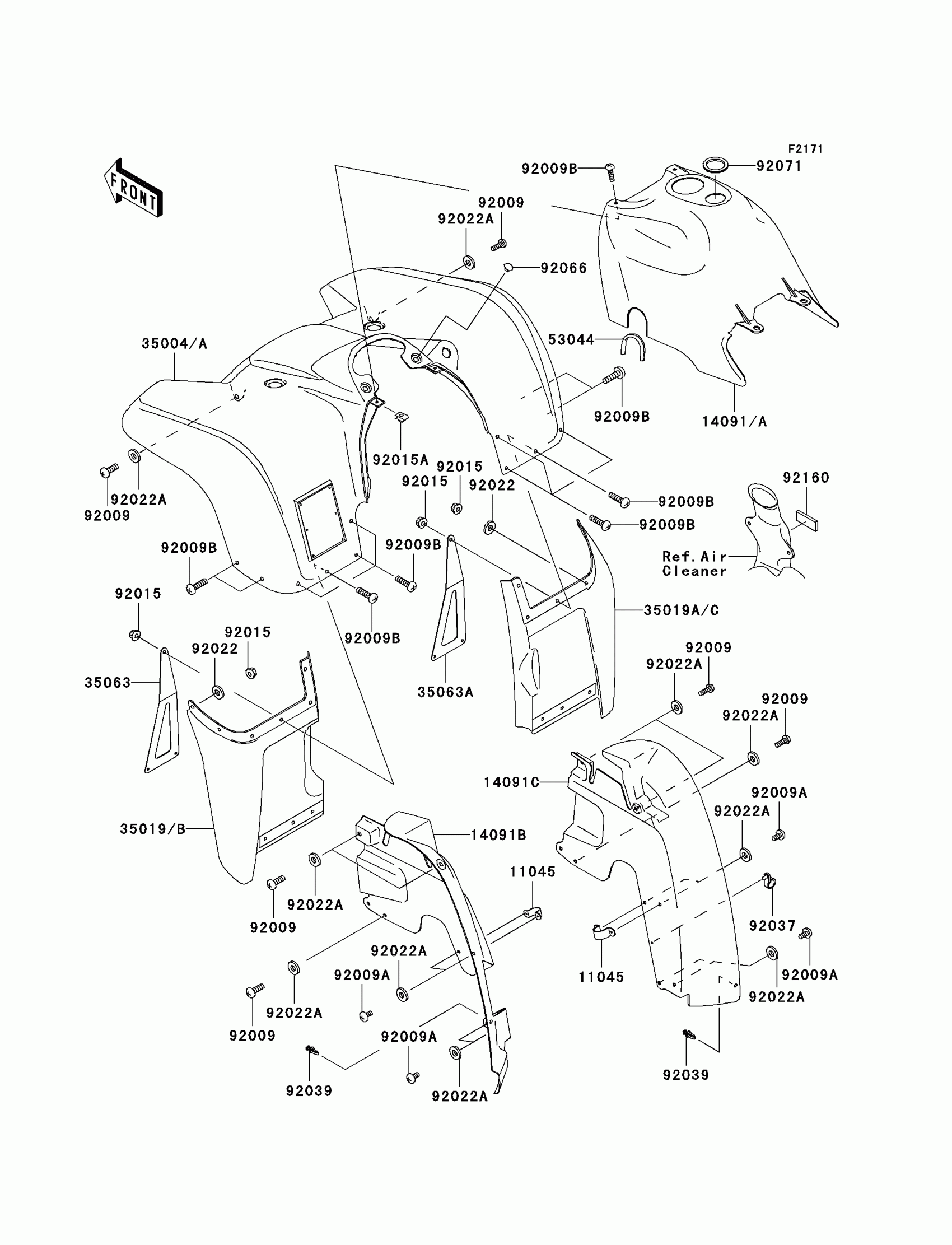

Kawasaki Prairie 360 4X4 Hardwoods Green HD Front Fender(s) Diagram

Description

Price

11045

BRACKET,FENDER

11045-1882

$7.69

14091A

COVER,FUEL TANK,C.H.GREEN

14091-0007-374

$38.32

14091B

COVER,INNER FLAP,LH

14091-7521

$30.00

14091C

COVER,INNER FLAP,RH

14091-7527

$30.00

35004A

FENDER-FRONT,C.H.GREEN

35004-0001-374

Unavailable

35019

FLAP,FR,LH,F.BLACK

35019-0021-6Z

$22.71

35019A

FLAP,FR,RH,F.BLACK

35019-0022-6Z

$22.71

35063

STAY,FRONT FENDER,LH

35063-7506

$9.22

35063A

STAY,FRONT FENDER,RH

35063-7507

$9.22

53044

TRIM,L=150

53044-1303

$4.38

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,TAPPING,5X10

92009-1332

$3.92

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92039

RIVET

92039-1229

$1.19

92066

PLUG

92066-1485

$2.44

92071

GROMMET,FUEL TANK COVER

92071-7503

$5.32

92160

DAMPER

92160-1834

$5.78
