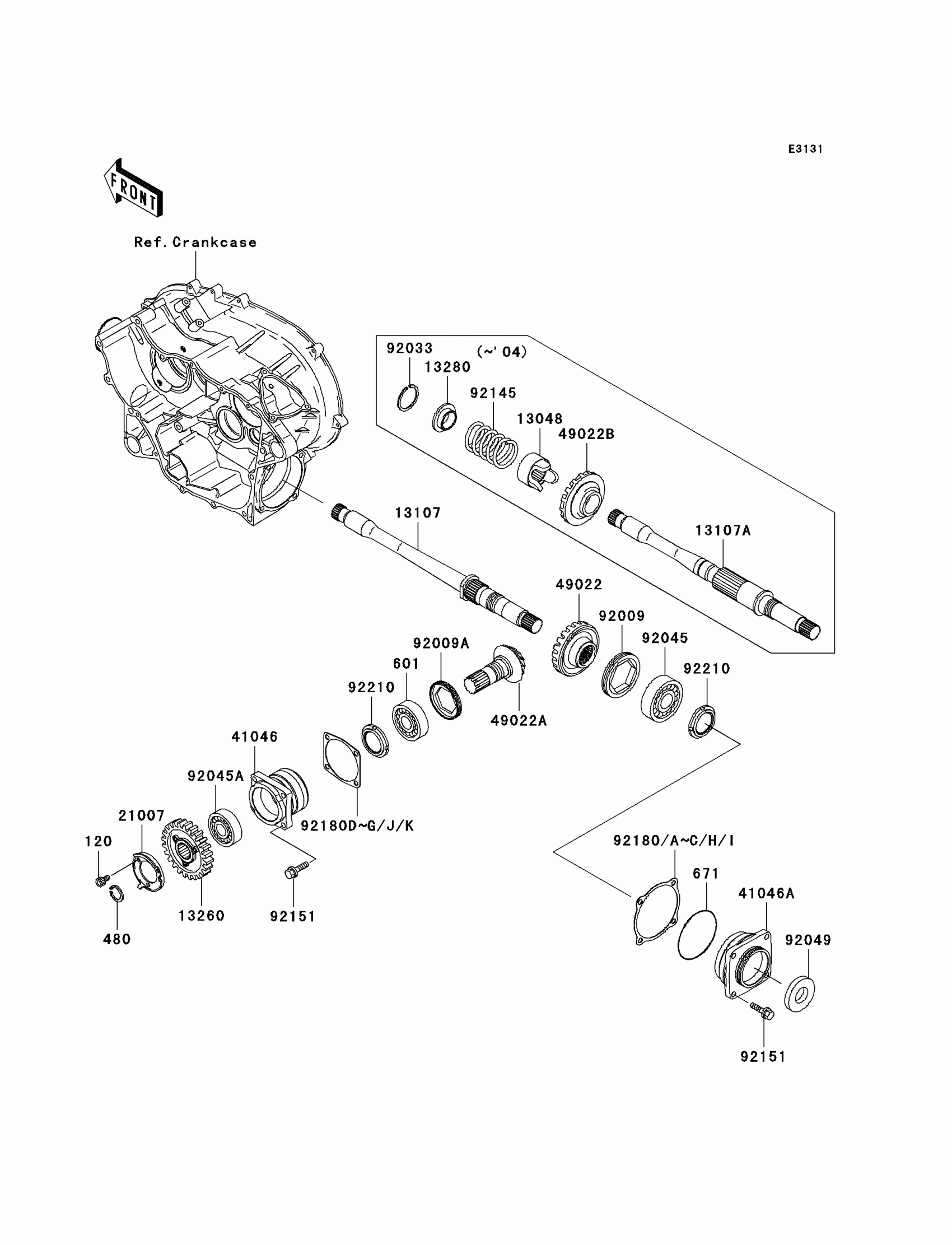

Kawasaki Prairie 360 4X4 Hardwoods Green HD Front Bevel Gear Diagram

Description

Price

120

BOLT-SOCKET,6X12

120P0612

Unavailable

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

601

BALL BEARING,#6206

601B6206

$17.84

671

O RING

671D2585

$6.08

13107

SHAFT

13107-0027

$339.48

13260

GEAR,OUTPUT 29T

13260-1922

Unavailable

21007

ROTOR,REVERSE SENSOR

21007-1416

$9.14

41046

HOUSING-BEARING

41046-1101

$142.81

41046A

HOUSING-BEARING

41046-1102

Unavailable

49022

GEAR-BEVEL,DRIVEN,21T

49022-0020

$235.70

49022A

GEAR-BEVEL,DRIVE,20T

49022-1184

$245.64

92009

SCREW-SET-SOCKET,75X10

92009-1667

$90.10

92009A

SCREW,64MM

92009-1914

$30.20

92045

BEARING-BALL,6306SH2

92045-1190

$36.30

92045A

BEARING-BALL,62/28

92045-1207

$14.34

92049

SEAL-OIL

92049-1529

$13.66

92151

BOLT-FLANGED-SMALL,8X30

92151-1688

$1.98

92180

SHIM,DRIVEN,T=0.15

92180-1307

$7.54

92180A

SHIM,DRIVEN,T=0.20

92180-1308

$7.54

92180B

SHIM,DRIVEN,T=0.50

92180-1309

$7.54

92180C

SHIM,DRIVEN,T=0.80

92180-1310

$7.51

92180D

SHIM,DRIVE,T=0.15

92180-1311

$5.71

92180E

SHIM,DRIVE,T=0.20

92180-1312

$5.71

92180F

SHIM,DRIVE,T=0.50

92180-1313

$5.71

92180G

SHIM,DRIVE,T=0.80

92180-1314

$5.71

92180H

SHIM,DRIVEN,T=1.00

92180-1349

$6.38

92180I

SHIM,DRIVEN,T=1.20

92180-1350

$6.38

92180J

SHIM,DRIVE,T=1.00

92180-1351

$8.19

92180K

SHIM,DRIVE,T=1.20

92180-1352

$8.19

92210

NUT,30MM

92210-1294

$41.60
