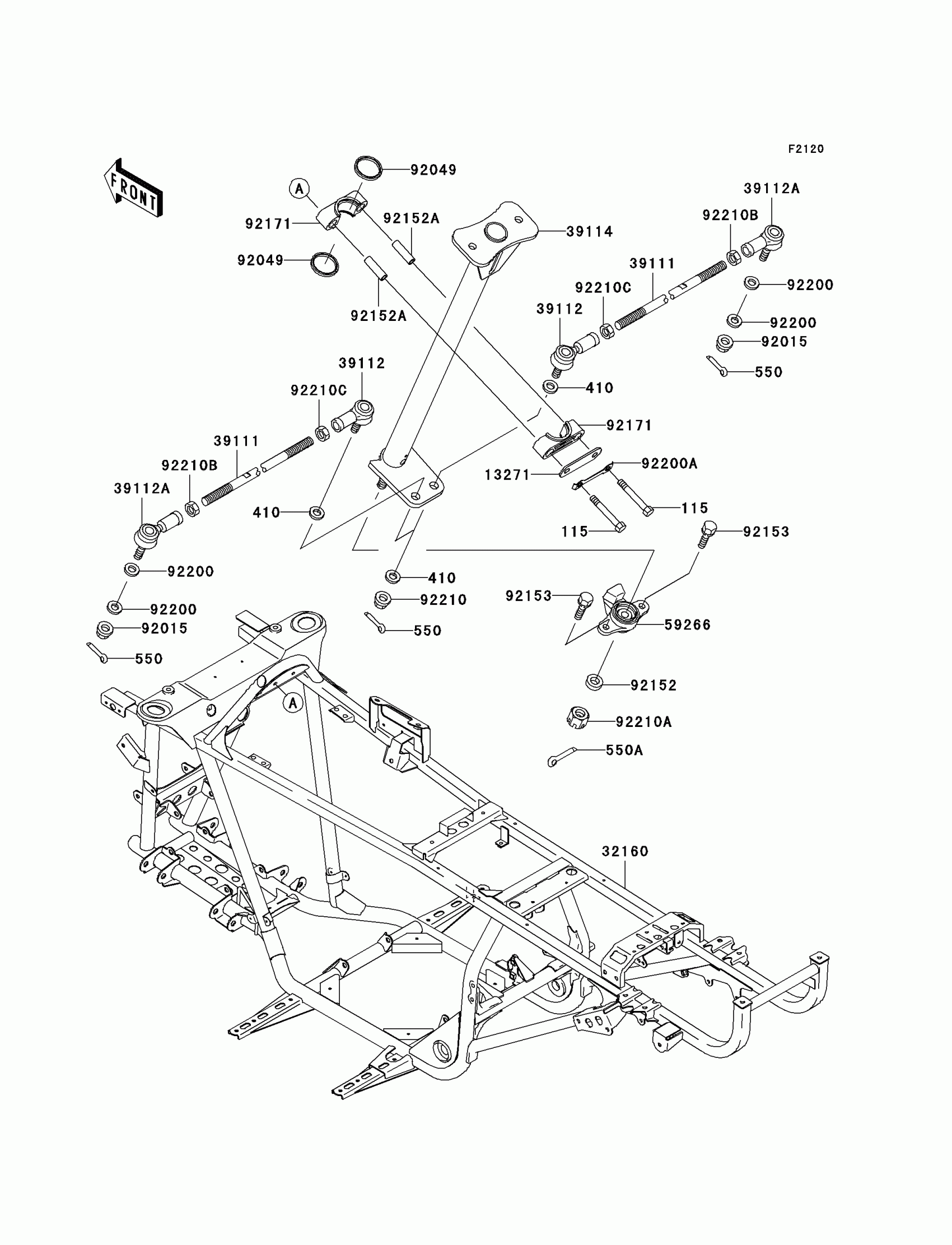

Kawasaki Prairie 360 4X4 Hardwoods Green HD Frame Diagram

Description

Price

115

BOLT-SMALL-UPSET,8X55

115S0855

$3.29

410

WASHER-PLAIN-SMALL,12MM

410B1200

$0.70

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,3.0X25

550D3025

$0.58

13271

PLATE,STEERING,CLAMP

13271-7506

$1.94

32160

FRAME-COMP

32160-7501

$965.76

39111

ROD-TIE

39111-7501

$18.46

39112

RODEND-TIE

39112-7501

$37.94

39112A

RODEND-TIE

39112-7504

$37.94

39114

SHAFT-COMP-STRG

39114-7502

$230.06

59266

JOINT-BALL

59266-1125

$156.46

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$5.00

92152

COLLAR,12X21.3X7

92152-1351

$12.83

92152A

COLLAR,9.1X13.95X42

92152-7501

$7.65

92153

BOLT,8X30

92153-1065

$2.93

92171

CLAMP,STEERING

92171-7501

$7.65

92200

WASHER,12.2X22X1.5

92200-7502

$2.93

92200A

WASHER,STEERING CLAMP

92200-7503

$5.92

92210

NUT,LOCK,12MM

92210-1249

$7.71

92210A

NUT,12MM

92210-7501

$3.73

92210B

NUT,LH THREAD

92210-7502

$4.12

92210C

NUT,RH THREAD

92210-7503

$4.12
