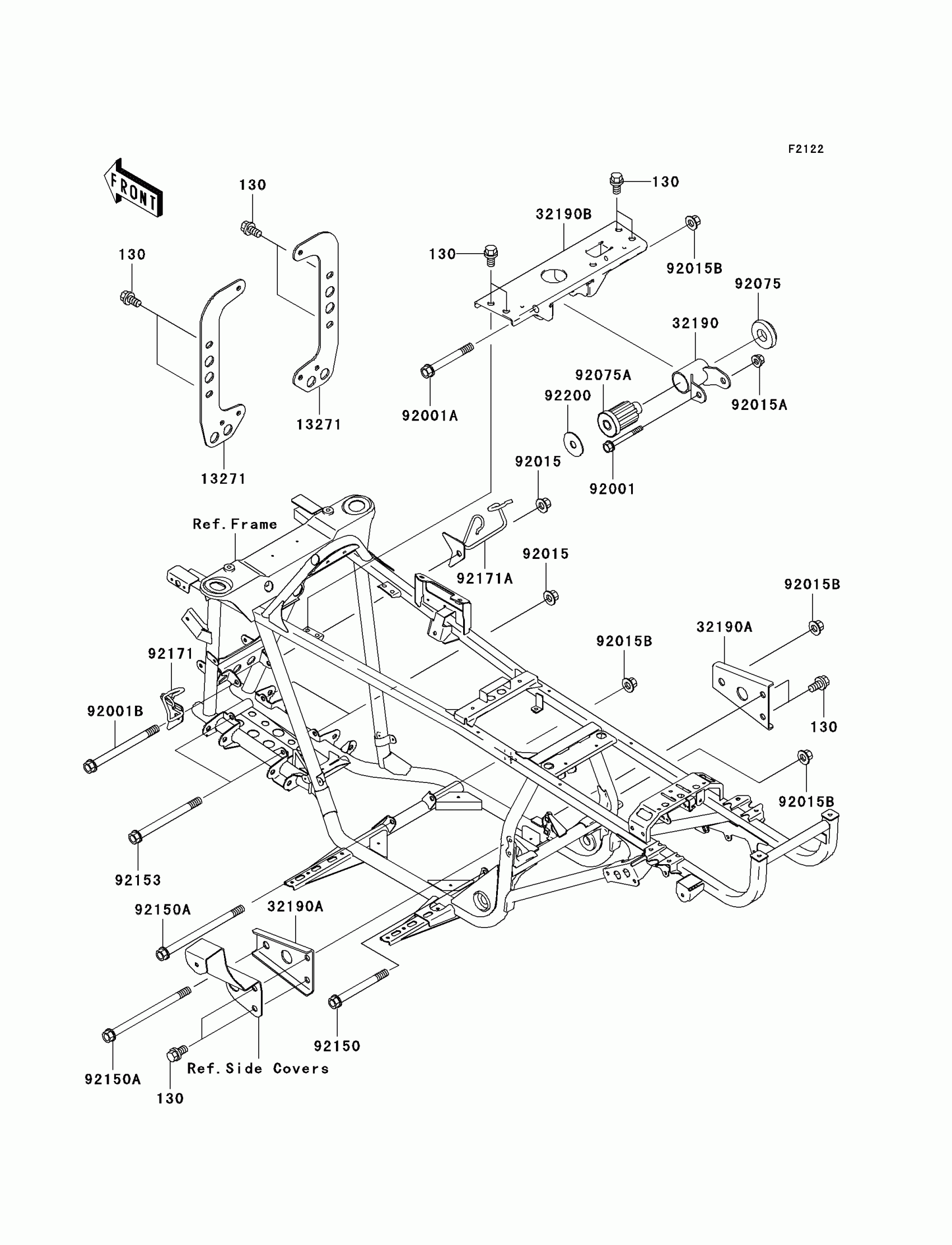

Kawasaki Prairie 360 4X4 Hardwoods Green HD Engine Mount Diagram

Description

Price

130

BOLT-FLANGED,8X14

130J0814

$3.84

13271

PLATE,OIL COOLER

13271-7519

$17.97

32190

BRACKET-ENGINE

32190-1141

$32.41

32190A

BRACKET-ENGINE,RR

32190-7505

$4.37

32190B

BRACKET-ENGINE,HEAD

32190-7507

$19.52

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

$6.88

92001A

BOLT,FLANGED,10X80

92001-1709

$10.37

92001B

BOLT,FLANGED,10X125

92001-1720

$11.39

92015

NUT,FLANGED,10MM

92015-1335

$2.61

92015A

NUT,LOCK,FLANGED,8MM

92015-1397

$4.31

92015B

NUT,FLANGED,10MM

92015-1727

$4.31

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$17.60

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$30.82

92150

BOLT,FLANGED,10X95

92150-1230

$13.71

92150A

BOLT,FLANGED,10X150

92150-1686

$16.01

92153

BOLT,FLANGED,10X120

92153-7502

$8.36

92171

CLAMP,BRAKE HOSE,LH

92171-1535

$17.31

92171A

CLAMP,BRAKE HOSE,RH

92171-1540

$22.35

92200

WASHER,10.5X38.1X1.52

92200-7504

$5.37
