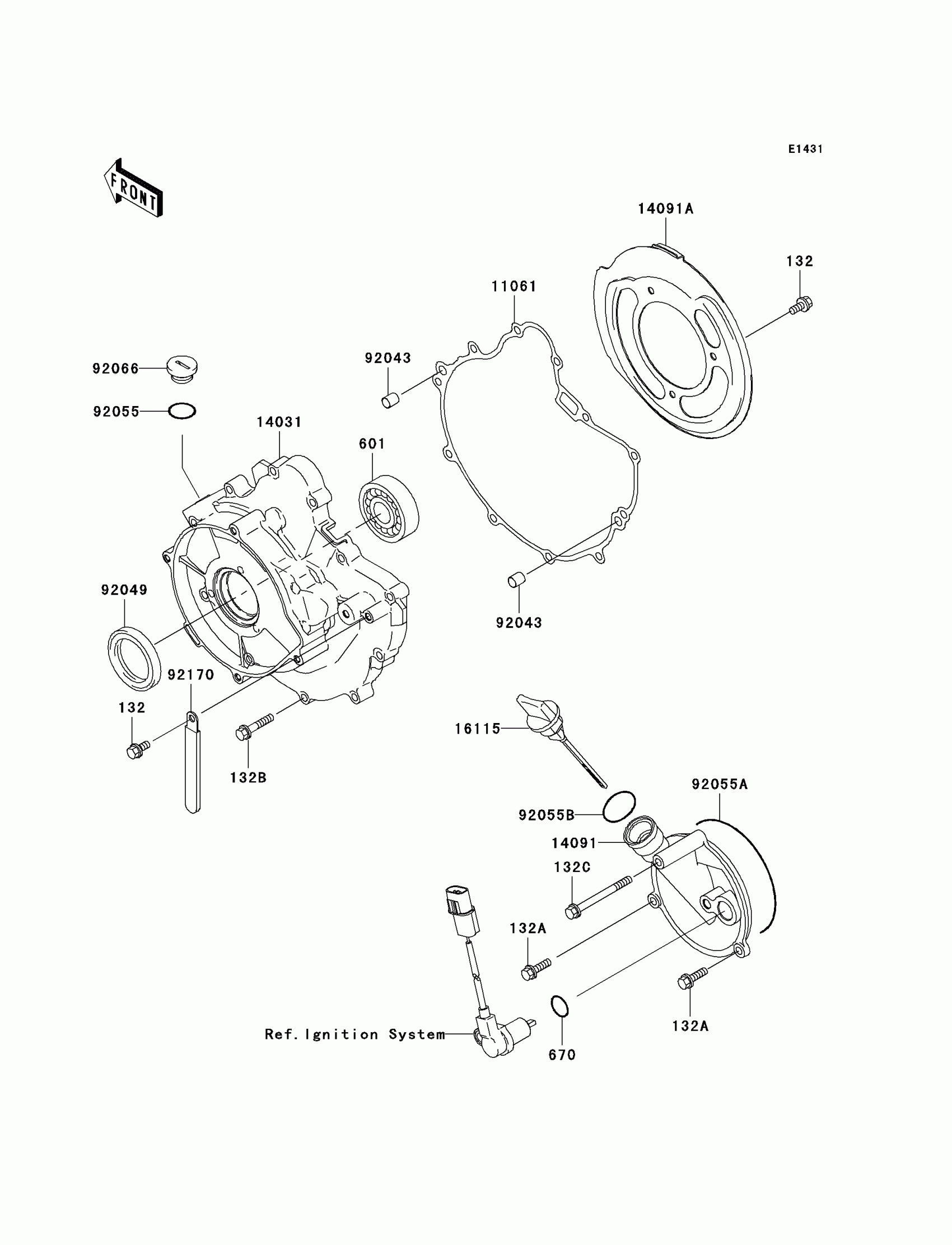

Kawasaki Prairie 360 4X4 Hardwoods Green HD Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

132C

BOLT-FLANGED-SMALL

132Y0665

Unavailable

601

BEARING-BALL,#6004

601A6004

$9.04

670

O RING,18MM

670D2018

$1.39

11061

GASKET,GENERATOR COVER

11061-1086

$7.25

14031

COVER-GENERATOR

14031-1389

$137.91

14091

COVER

14091-1365

$75.02

14091A

COVER,BELT CONVERTER

14091-1571

$20.42

16115

CAP-OIL FILLER

16115-1072

$11.29

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,HTC 28X45X7

92049-1576

$11.17

92055

RING-O,20X2

92055-1146

$6.55

92055A

RING-O,99.5X2.0

92055-1632

$8.49

92055B

RING-O,20X3

92055-2185

$0.84

92066

PLUG,COVER

92066-1163

$11.20

92170

CLAMP

92170-1925

$1.98
