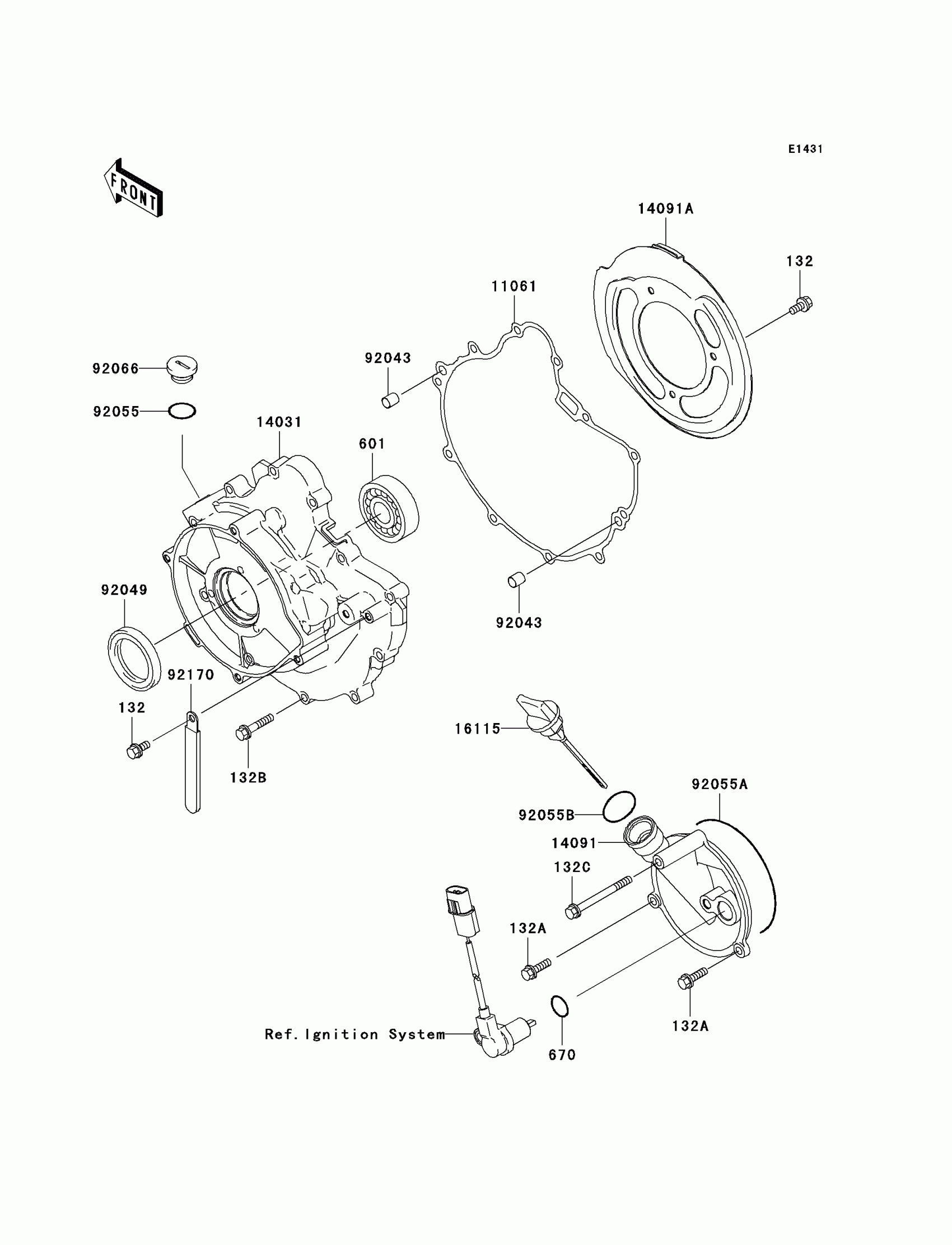

Kawasaki Prairie 360 4X4 Hardwoods Green HD Engine Cover(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

132A

BOLT-FLANGED-SMALL,6X20

132Y0620

$3.84

132B

BOLT-FLANGED-SMALL,6X30

132Y0630

$3.41

132C

BOLT-FLANGED-SMALL

132Y0665

$4.44

601

BEARING-BALL,#6004

601A6004

$11.91

670

O RING,18MM

670D2018

$1.91

11061

GASKET,GENERATOR COVER

11061-1086

$8.66

14031

COVER-GENERATOR

14031-1389

$135.23

14091

COVER

14091-1365

$73.61

14091A

COVER,BELT CONVERTER

14091-1571

$21.80

16115

CAP-OIL FILLER

16115-1072

$14.87

92043

PIN,6.2X8X14

92043-1263

$0.43

92049

SEAL-OIL,HTC 28X45X7

92049-1576

$14.71

92055

RING-O,20X2

92055-1146

$8.58

92055A

RING-O,99.5X2.0

92055-1632

$11.16

92055B

RING-O,20X3

92055-2185

$1.03

92066

PLUG,COVER

92066-1163

$14.76

92170

CLAMP

92170-1925

$2.40
