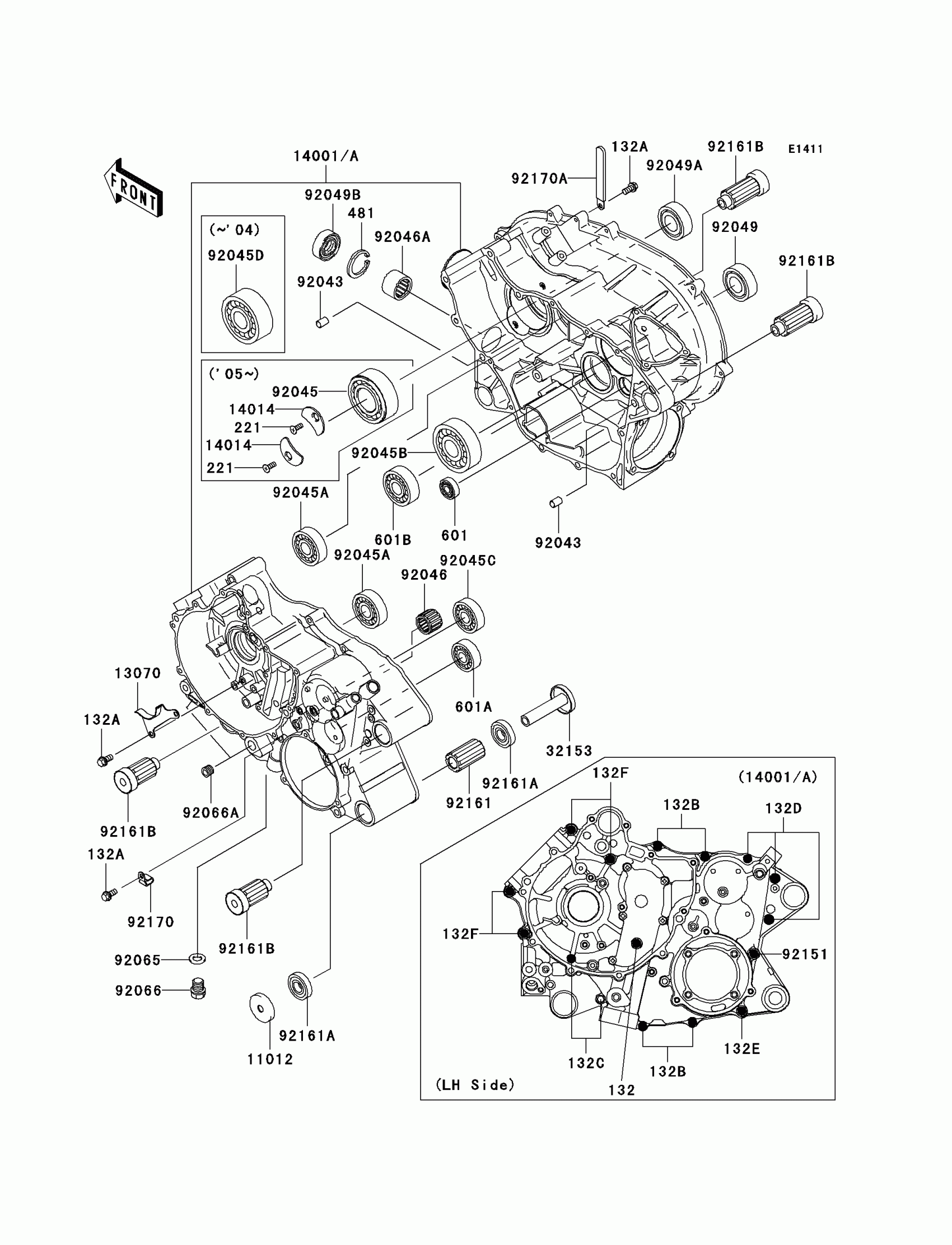

Kawasaki Prairie 360 4X4 Hardwoods Green HD Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132J0885

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

Unavailable

132C

BOLT-FLANGED-SMALL

132Y0665

Unavailable

132D

BOLT-FLANGED-SMALL

132Y0685

Unavailable

132E

BOLT-FLANGED-SMALL,8X110

132Y08110

Unavailable

132F

BOLT-FLANGED-SMALL,8X75

132Y0875

Unavailable

221

SCREW-CSK-CROS,6X16

221B0616

$0.54

481

CIRCLIP-TYPE-C,37MM

481J3700

$2.04

601

BEARING-BALL

601A6000

$9.76

601A

BEARING-BALL,#6004

601A6004

$9.04

601B

BEARING-BALL,#6304

601A6304

$11.00

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

13070

GUIDE,CHAIN

13070-1255

$5.61

14001

SET-CRANKCASE

14001-0031

$777.68

14014

PLATE-POSITION

14014-0016

$14.19

32153

PIPE

32153-1873

$14.47

92043

PIN,10X14

92043-1506

$2.30

92045

BEARING-BALL,5207-X1ECG45

92045-0027

$88.50

92045A

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045B

BEARING-BALL,6306SH2

92045-1190

$36.30

92045C

BEARING-BALL,6303LUA

92045-1389

$17.52

92046

BEARING-NEEDLE

92046-1143

Unavailable

92046A

BEARING-NEEDLE

92046-1277

$20.25

92049

SEAL-OIL,TC30458

92049-1451

$11.59

92049A

SEAL-OIL,TC 35X50X8

92049-1452

$10.44

92049B

SEAL-OIL,TCY 28X42X8

92049-1570

$13.05

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066A

PLUG,PT3/8X10

92066-1262

$2.66

92151

BOLT,8X110

92151-1689

$4.42

92161

DAMPER,BACK UNDER,PIPE

92161-1257

$7.83

92161A

DAMPER,BACK UNDER

92161-1258

$4.61

92161B

DAMPER,L=63.5

92161-1259

$21.56

92170

CLAMP

92170-1577

$2.85

92170A

CLAMP

92170-1925

$1.98
