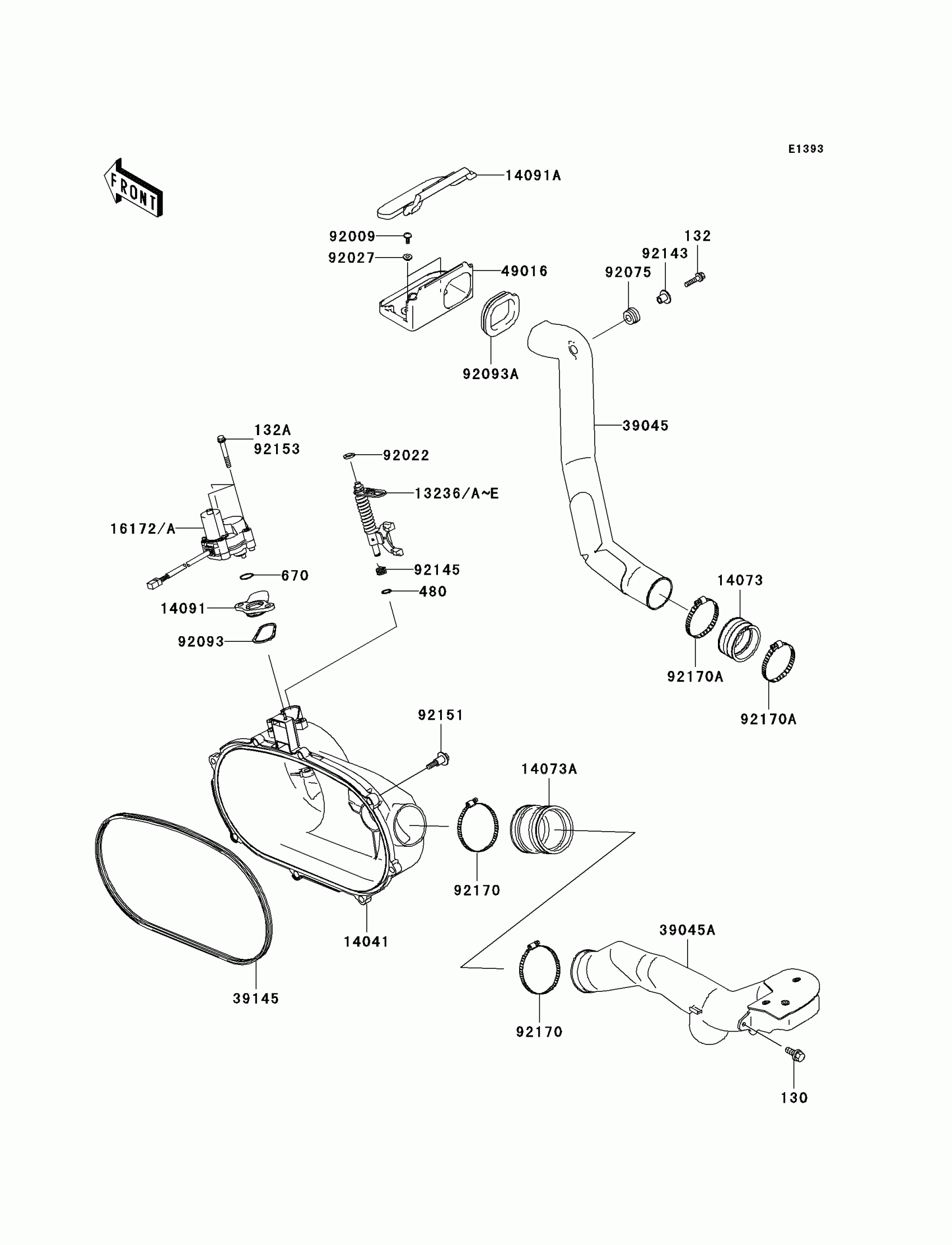

Kawasaki Prairie 360 4X4 Hardwoods Green HD Converter Cover/Drive Belt Diagram

Description

Price

130

BOLT,FLANGED,6X14

130G0614

Unavailable

132

BOLT-FLANGED-SMALL

132G0625

Unavailable

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.57

670

O RING

670D3022

$1.98

13236

LEVER-COMP,YELLOW

13236-0046

Unavailable

13236A

LEVER-COMP,GREEN

13236-0047

Unavailable

13236B

LEVER-COMP,PAINT LESS

13236-0048

$134.44

14041

COVER-COMP,BELT CONVERTER

14041-1156

Unavailable

14073

DUCT,JOINT

14073-1775

$3.32

14073A

DUCT,JOINT

14073-1805

Unavailable

14091

COVER

14091-1421

Unavailable

14091A

COVER,MUDGUARD

14091-1500

$21.37

16172

ACTUATOR

16172-0002

$388.62

39045

DUCT-ASSY,SNORKEL,IN

39045-1067

$28.98

39045A

DUCT-ASSY,SNORKEL,EX

39045-1068

$32.59

39145

TRIM-SEAL

39145-1135

Unavailable

49016

COVER-SEAL,BELT CONVERTER

49016-1218

$47.82

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92022

WASHER,10.2X16X1

92022-1829

$3.29

92027

COLLAR,L=4.6

92027-1168

$3.81

92075

DAMPER,RUBBER

92075-1123

$3.81

92093

SEAL

92093-1548

$9.73

92093A

SEAL,COVER MUDGUARD

92093-1572

$3.88

92143

COLLAR

92143-1353

$6.54

92145

SPRING

92145-1567

$2.27

92151

BOLT,FLANGED,6X30

92151-1686

$7.18

92153

BOLT,6X47

92153-0678

$2.47

92170

CLAMP

92170-1763

$4.29

92170A

CLAMP

92170-1764

$8.62
