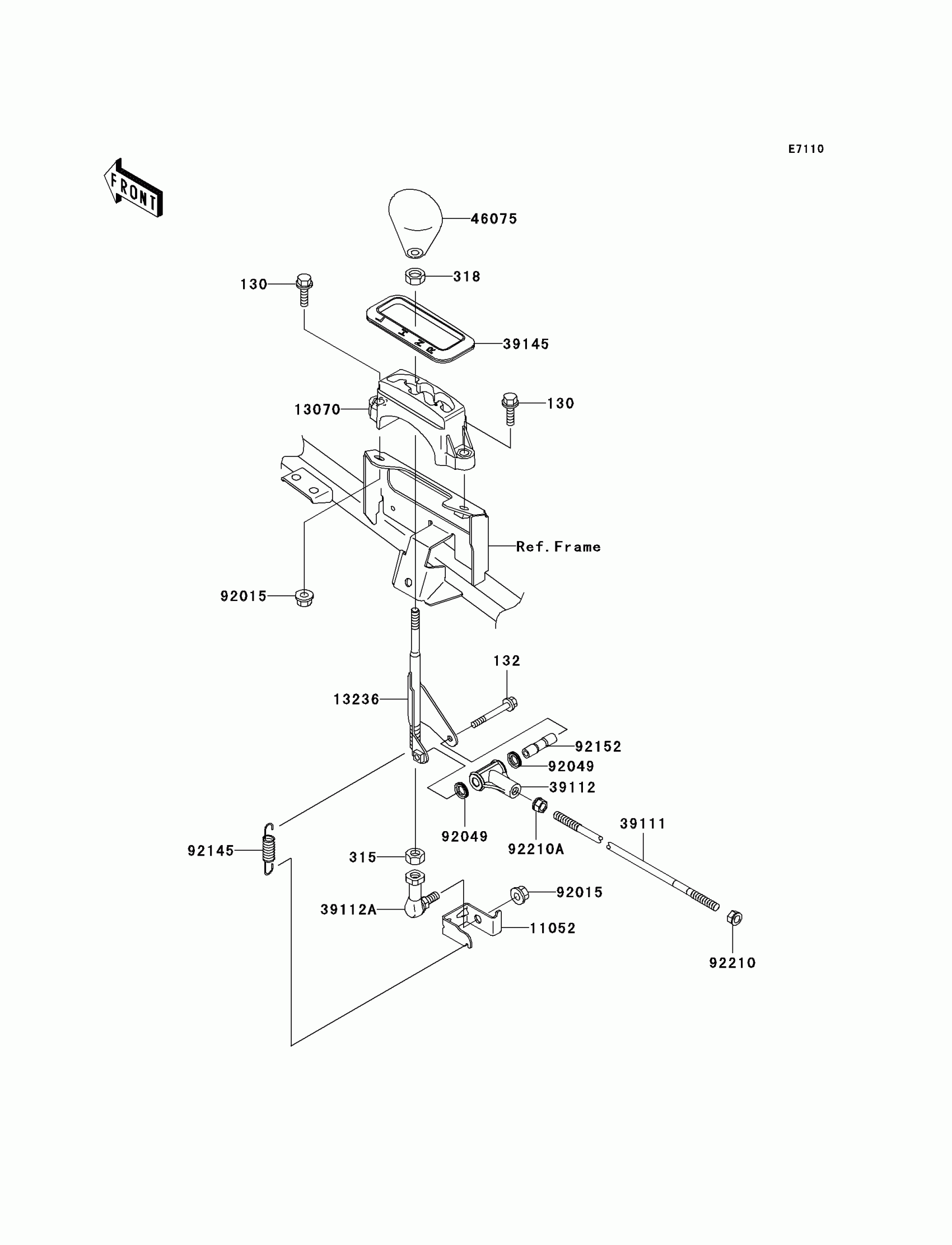

Kawasaki Prairie 360 4X4 Hardwoods Green HD Control Diagram

Description

Price

130

BOLT-FLANGED,8X25

130Z0825

Unavailable

132

BOLT-FLANGED-SMALL,6X50

132J0650

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

11052

BRACKET,CONTROL

11052-1476

$5.39

13070

GUIDE,CONTROL SHAFT

13070-1382

$43.40

13236

LEVER-COMP,SHIFT

13236-1384

$27.18

39111

ROD-TIE,SHIFT

39111-1175

$21.86

39112

RODEND-TIE

39112-1079

$25.83

39112A

RODEND-TIE,CONTROL PIVOT

39112-1084

Unavailable

39145

TRIM-SEAL,CONTROL GUIDE

39145-1121

$4.24

46075

GRIP,SHIFT

46075-1185

$26.99

92015

NUT,8MM

92015-1432

$4.93

92049

SEAL-OIL

92049-1458

$8.89

92145

SPRING,CONTROL

92145-1441

$3.69

92152

COLLAR,RODEND-TIE

92152-1222

$8.19

92210

NUT,8MM

92210-1242

$1.73

92210A

NUT,LH,THREAD 8MM

92210-1284

$2.29
