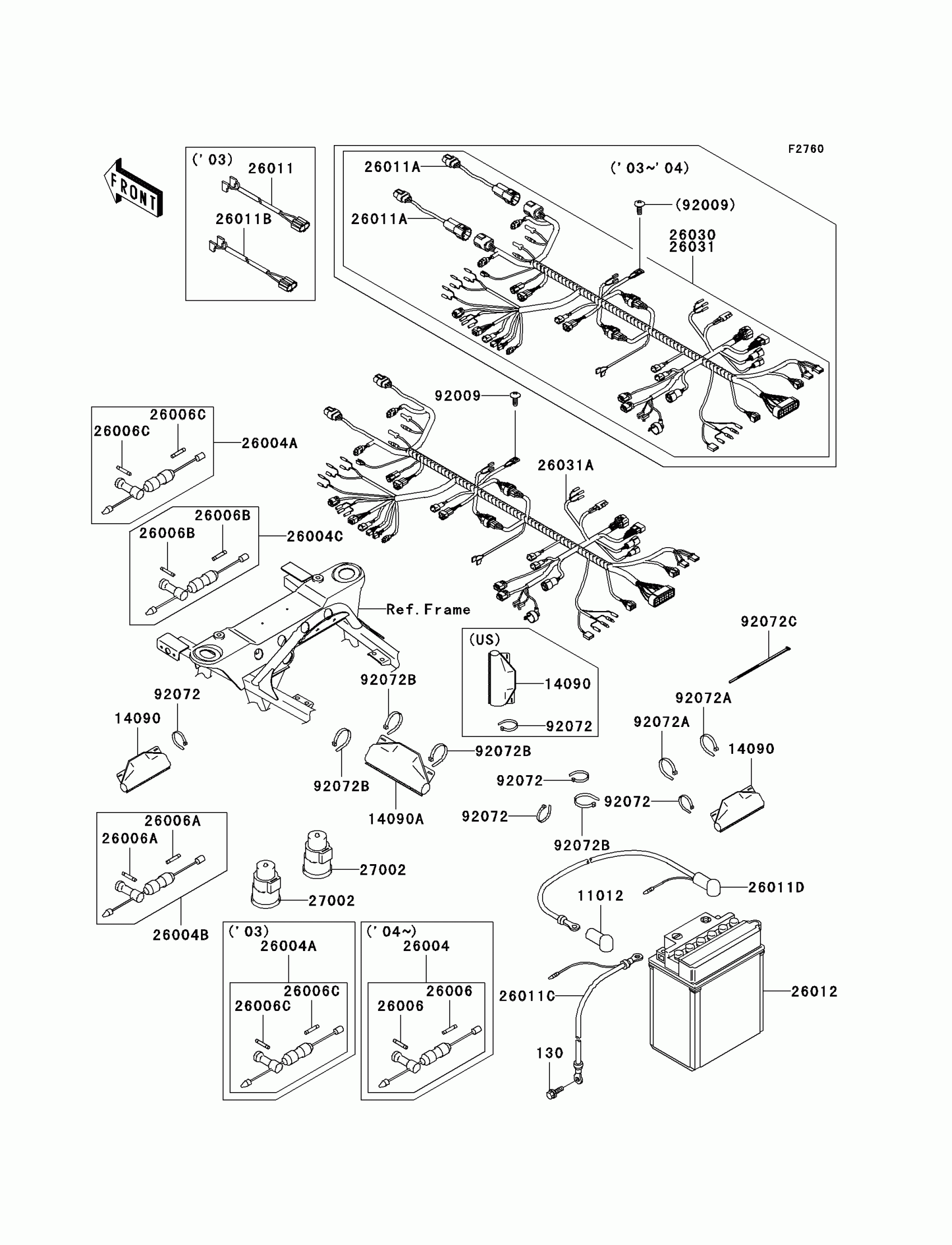

Kawasaki Prairie 360 4X4 Hardwoods Green HD Chassis Electrical Equipment Diagram

Description

Price

130

BOLT

130B0612

Unavailable

11012

CAP,TERMINAL

11012-1354

$9.85

14090A

COVER,COUPLER

14090-1611

$8.31

26004

FUSE-ASSY

26004-0005

$55.96

26004A

FUSE-ASSY

26004-1114

$55.78

26004B

FUSE-ASSY

26004-1127

$55.96

26004C

FUSE-ASSY

26004-7501

$55.96

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-0003

$4.33

26006A

FUSE,30A,L=30

26006-1059

Unavailable

26006B

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.14

26006C

FUSE,GLASS TUBE,6.4X30,5A,BRN

26006-1074

$5.37

26011C

WIRE-LEAD,BATTERY(-)

26011-7503

$24.64

26011D

WIRE-LEAD,BATTERY(+)

26011-7507

$24.64

26012

BATTERY,YB14A-A2,12V 14AH

26012-0006

$107.01

26031A

HARNESS,MAIN

26031-0088

$396.41

27002

RELAY-ASSY

27002-1095

$51.80

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=186

92072-056

$3.81

92072C

BAND,L=188

92072-1239

$1.30

14090

COVER,COUPLER

14090-1331

$8.31

14090

COVER,COUPLER

14090-1331

$8.31

92072

BAND,L=123

92072-030

$3.81

92072

BAND,L=123

92072-030

$3.81
