2005 Kawasaki Prairie 360 4X4 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2005 Kawasaki Prairie 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

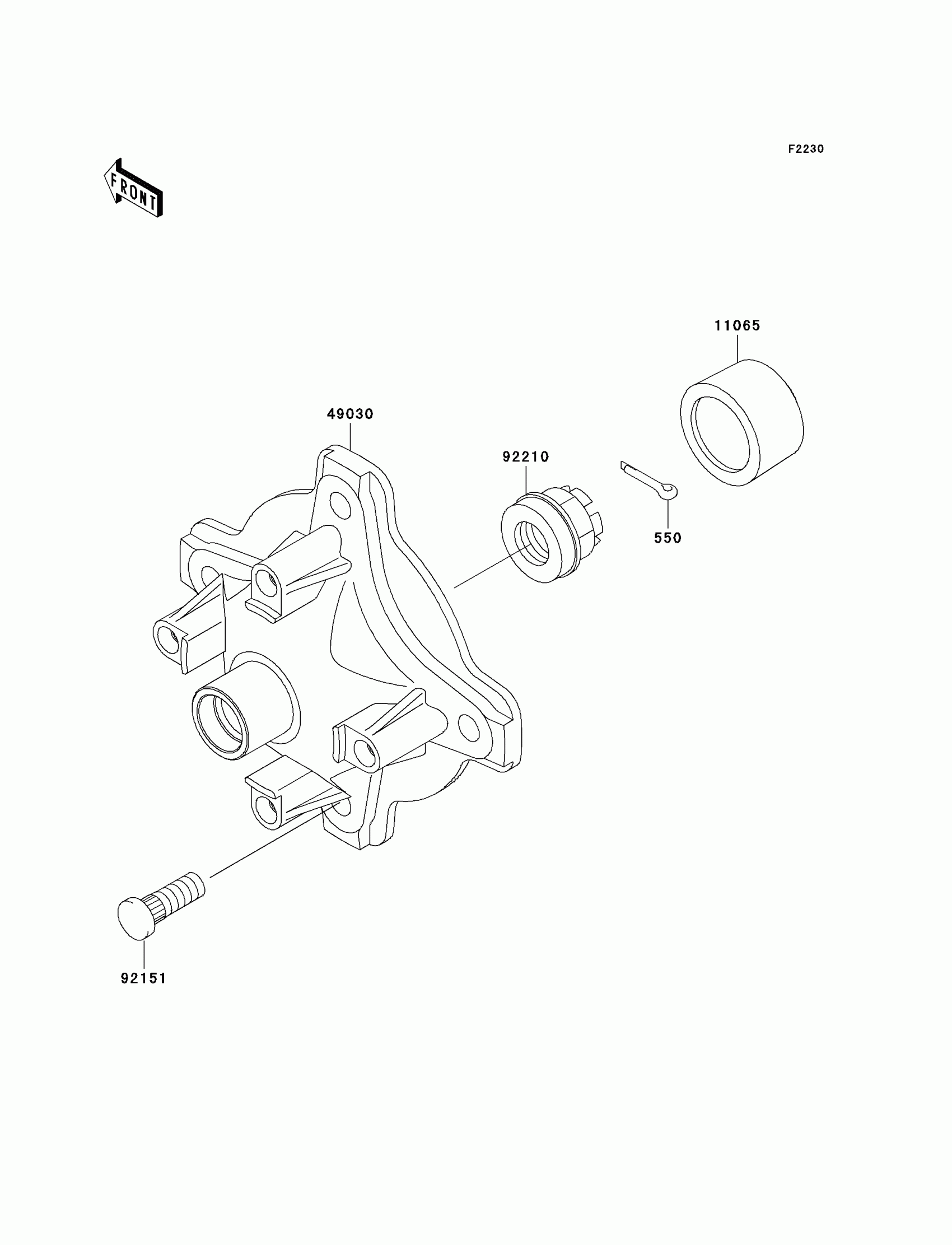

2005 Kawasaki Prairie 360 4X4 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,4.0X25

550D4025

1
Out of stock

11065

CAP,WHEEL

11065-1153

1
Out of stock

49030

HUB,FR

49030-7508

1
Out of stock

92151

BOLT,10X29.5

92151-1392

1
Out of stock

92210

NUT,CASTLE,18MM

92210-1349

1
Out of stock
