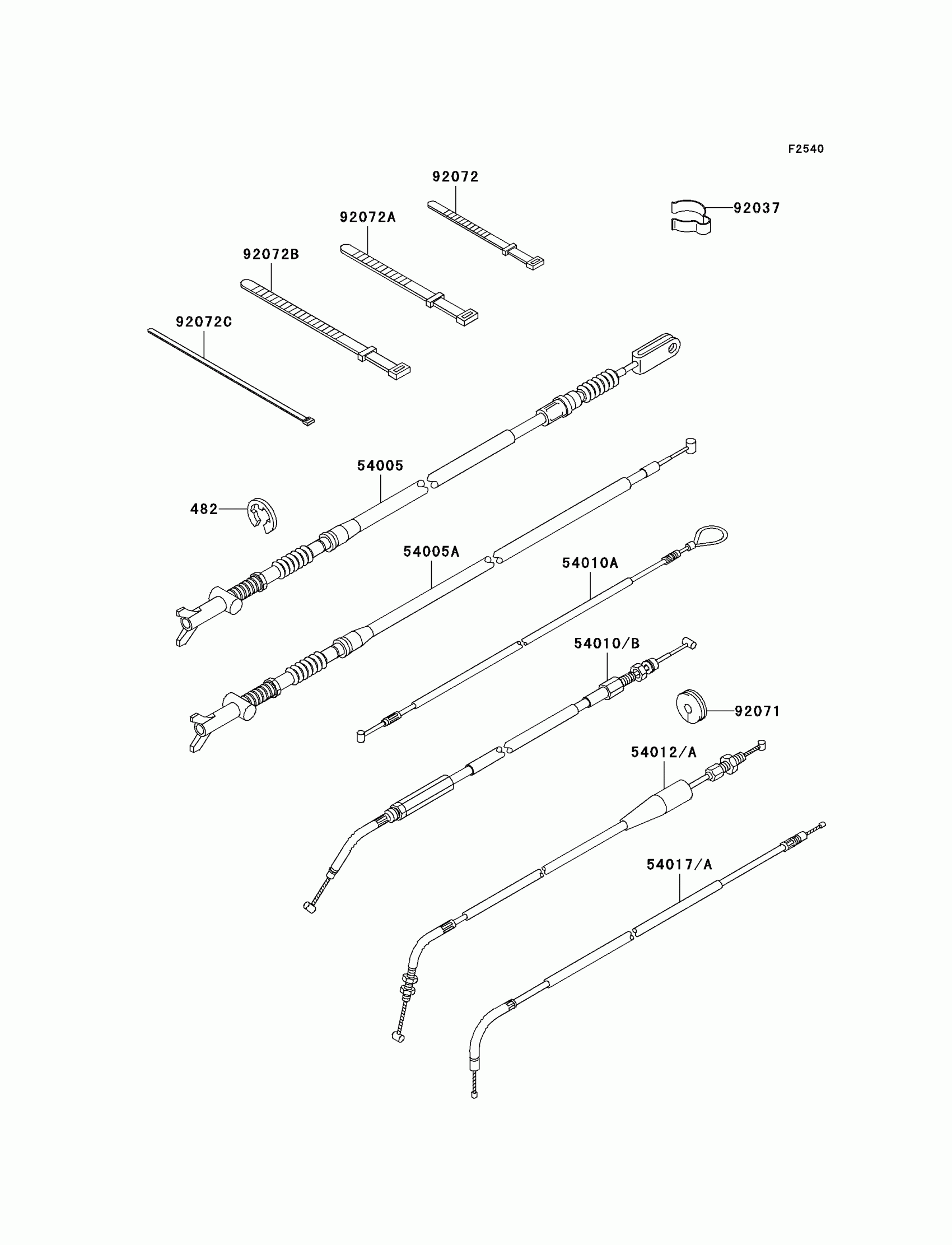

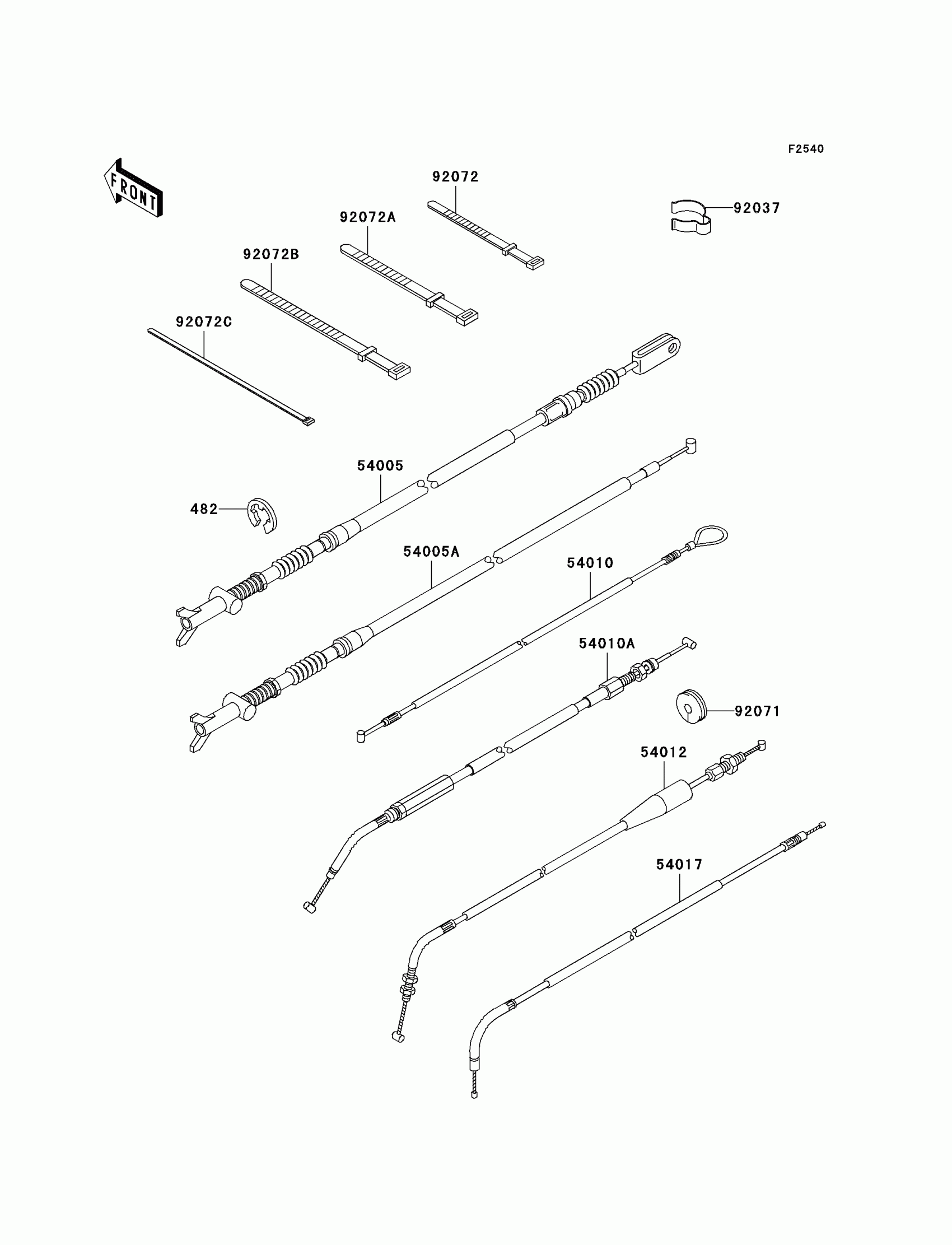

Kawasaki Prairie 360 4X4 Cables Diagram

Description

Price

482

CIRCLIP-TYPE-E,8MM

482L8000

Unavailable

54005

CABLE-BRAKE,REAR

54005-1203

$25.15

54005A

CABLE-BRAKE,PARKING

54005-1211

$25.15

54010

CABLE,SEAT HOOK

54010-7501

$36.58

54010A

CABLE,FRONT DIFF LOCK

54010-7502

Unavailable

54012

CABLE-THROTTLE

54012-7503

$33.71

54017

CABLE-STARTER

54017-7501

Unavailable

92037

CLAMP,AIR VENT HOSE

92037-1092

$7.08

92071

GROMMET,SENSOR LEAD

92071-1058

$5.02

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.81

92072B

BAND,L=186

92072-056

$3.81

92072C

BAND,L=188

92072-1239

$1.30
