2010 Kawasaki Prairie® 360 4X4 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2010 Kawasaki Prairie® 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

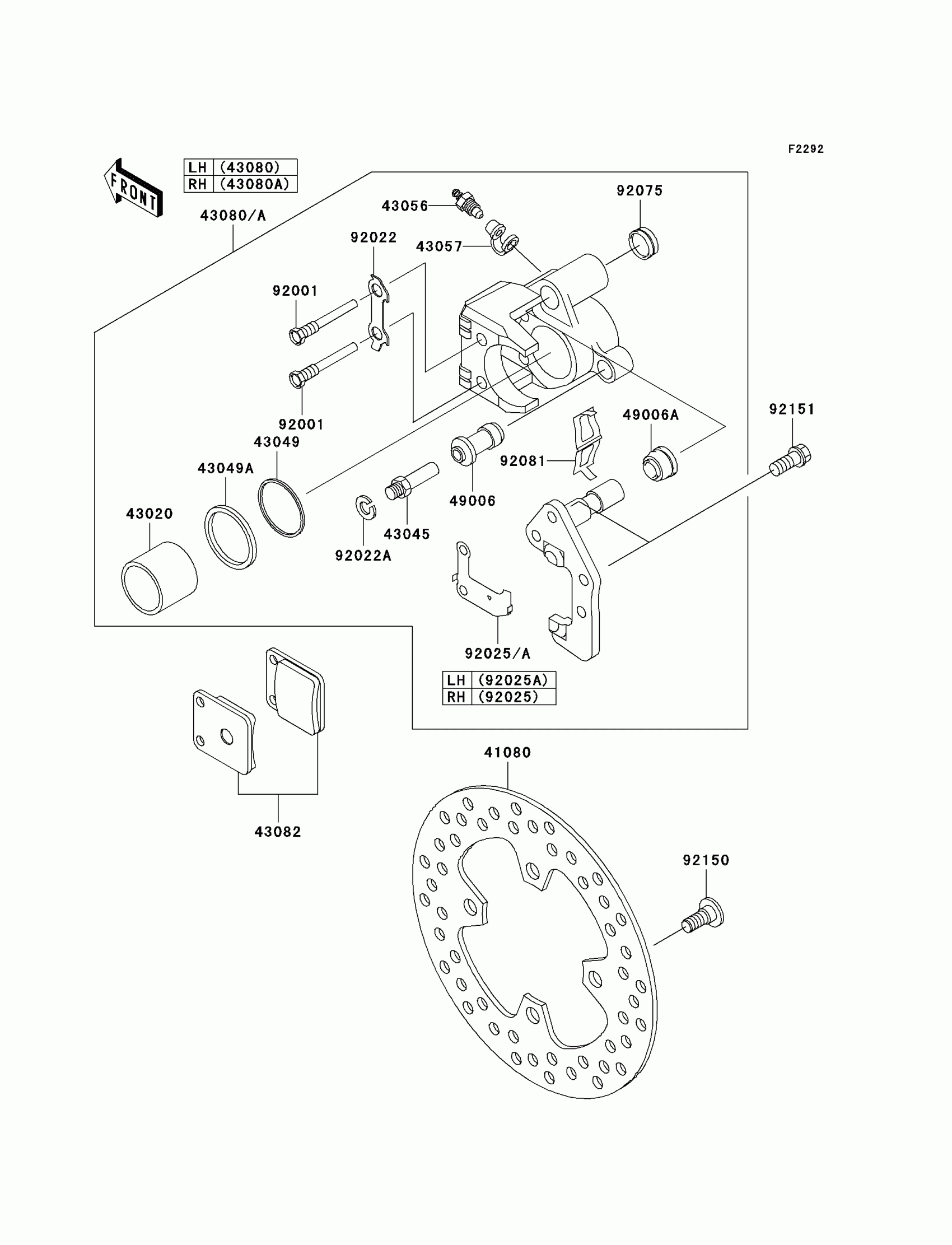

2010 Kawasaki Prairie® 360 4X4 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-1513

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1114

1
Out of stock

43045

SHAFT-CALIPER

43045-1010

1
Out of stock

43049

PACKING

43049-1081

1
Out of stock

43049A

PACKING

43049-1082

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH

43080-5135

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH

43080-5136

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0084

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1089

1
Out of stock

92001

BOLT,PAD HOLDER

92001-1723

1
Out of stock

92022

WASHER,LOCK

92022-1372

1
Out of stock

92022A

WASHER,WAVE

92022-1373

1
Out of stock

92025

SHIM,PAD

92025-1344

1
Out of stock

92025A

SHIM,PAD

92025-1817

1
Out of stock

92075

DAMPER

92075-1414

1
Out of stock

92081

SPRING,PAD

92081-1502

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1800

1
Out of stock

92151

BOLT,FLANGED,8X19

92151-1793

1
Out of stock
