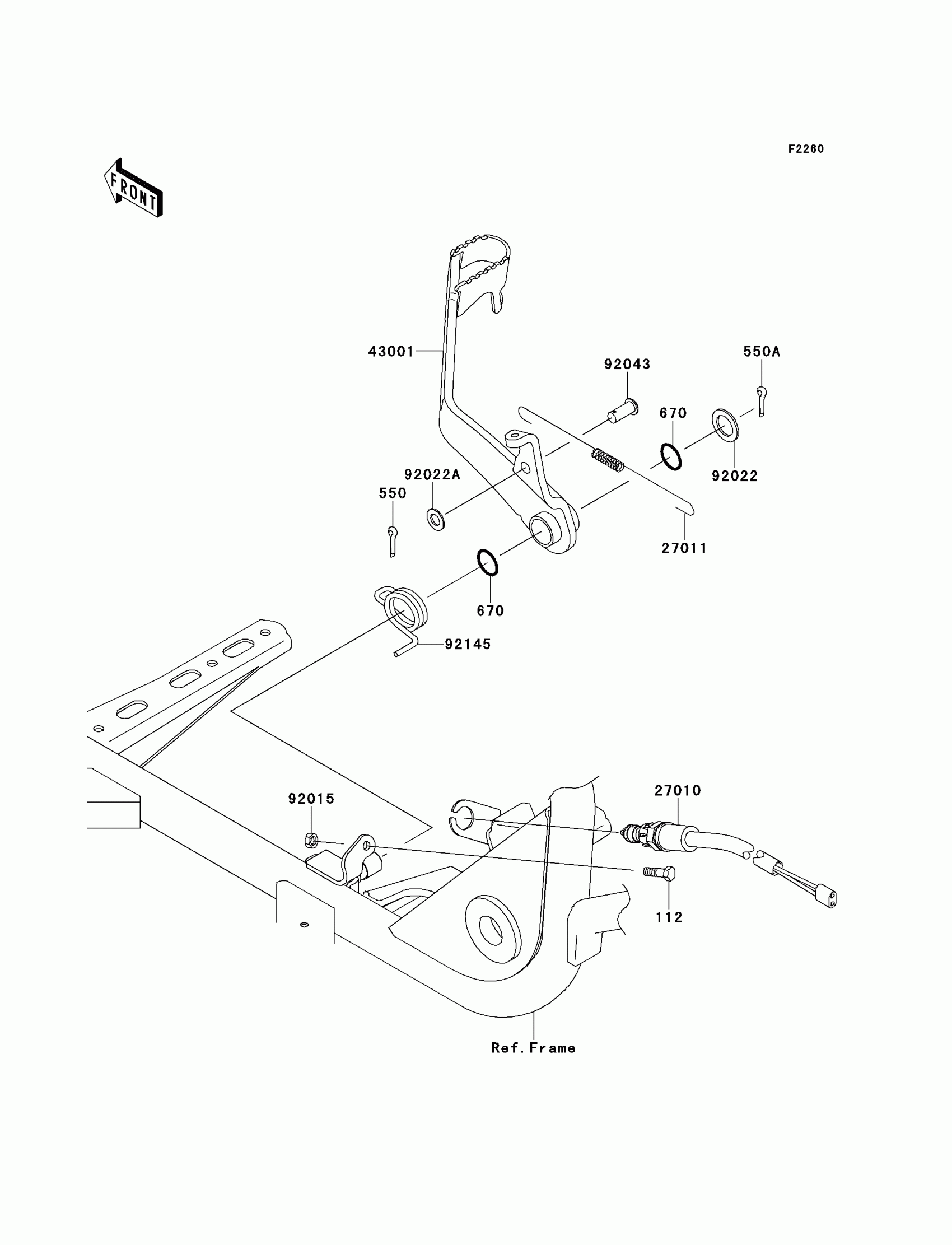

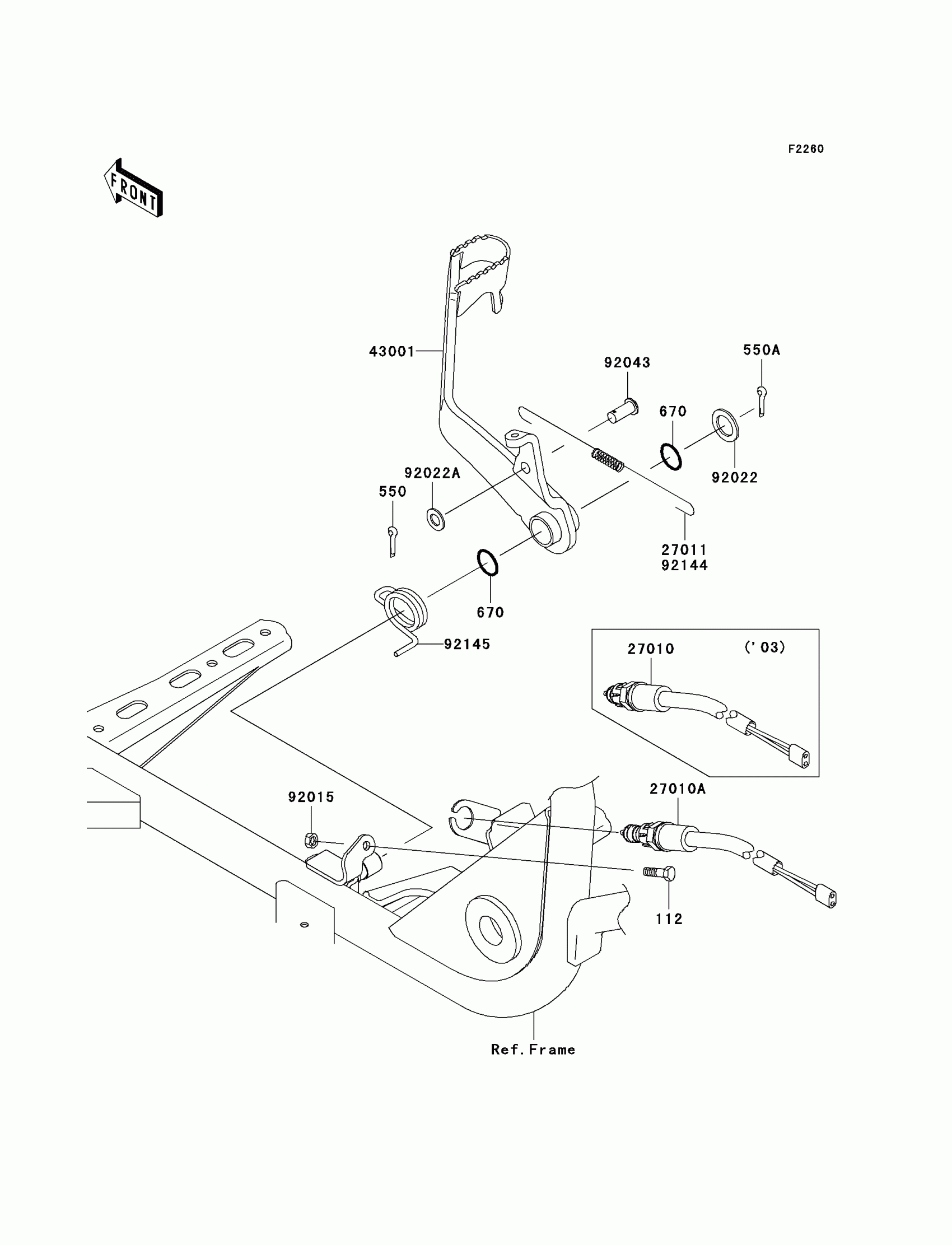

Kawasaki Prairie 360 4X4 Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112D0622

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,2.0X22

550D2022

$1.80

670

O RING,15MM

670B2015

$1.08

27010A

SWITCH,BRAKE

27010-1494

$51.47

27011

SPRING,BRAKE LIGHT SW

27011-015

$9.93

43001

LEVER-BRAKE,PEDAL

43001-7501

$43.48

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,15.5X24X1.6

92022-1049

$5.71

92022A

WASHER,8.5X16X1.2

92022-1582

$0.81

92043

PIN,8X16

92043-1013

$7.54

92145

SPRING,BRAKE PEDAL RETURN

92145-7503

$4.98
