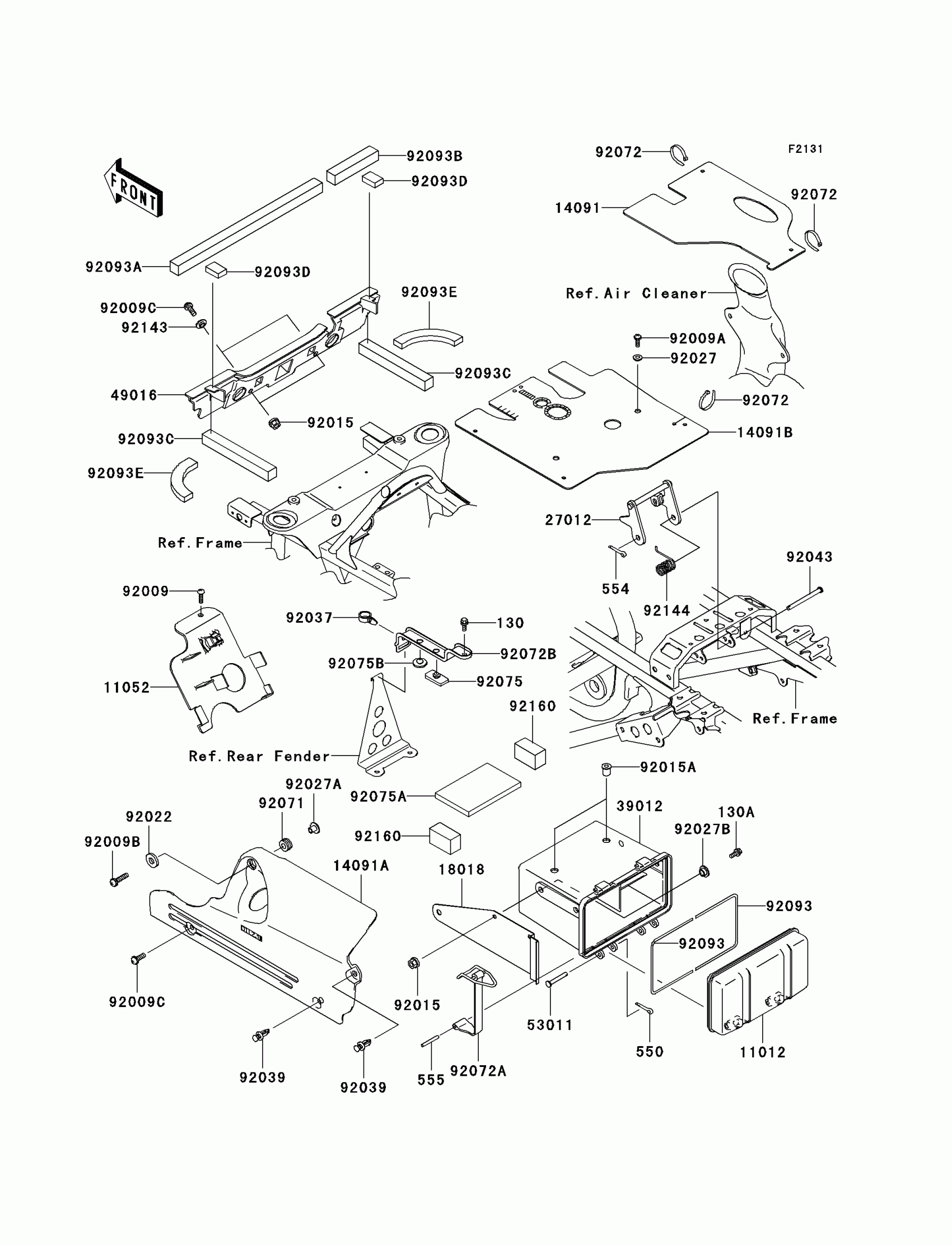

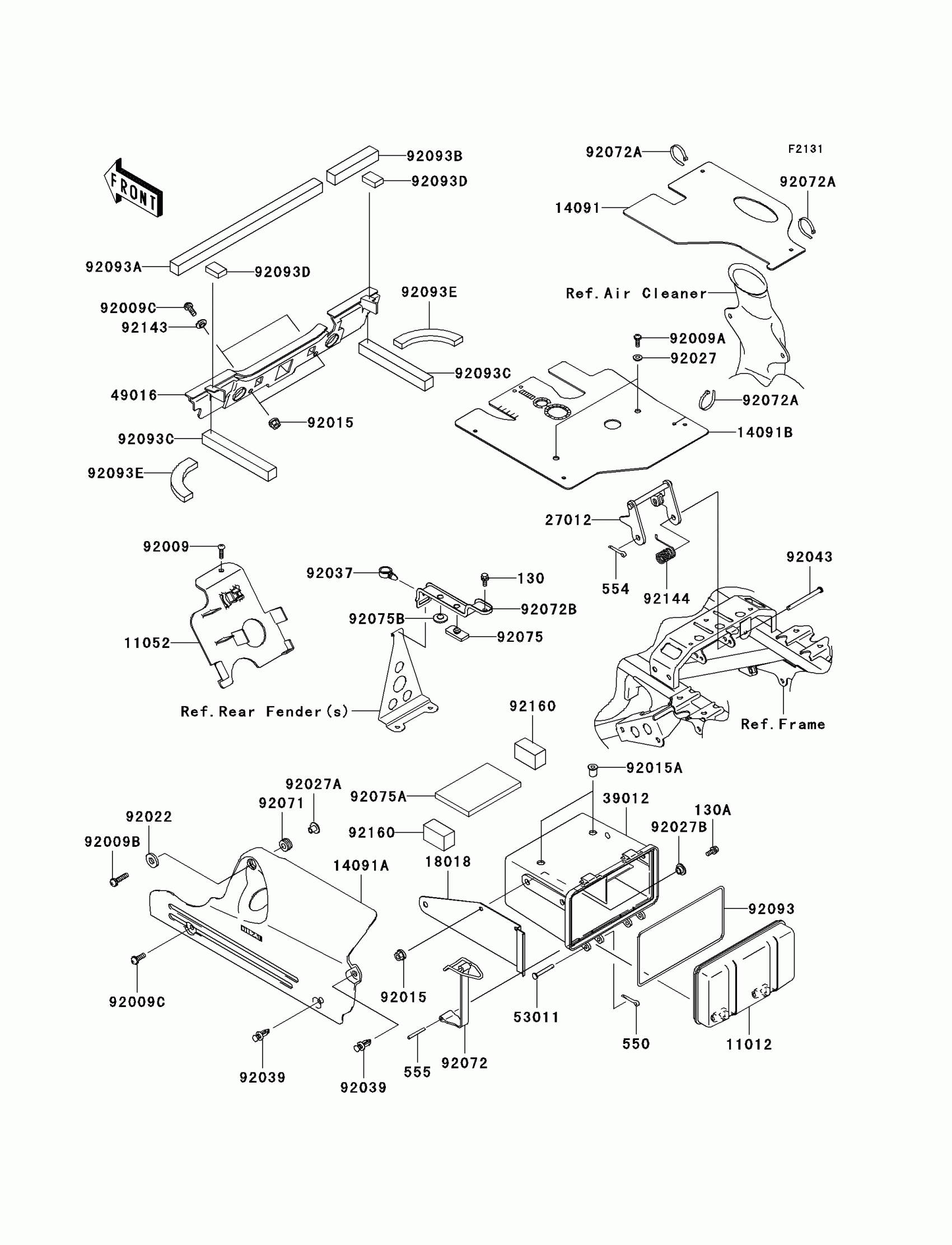

Kawasaki Prairie 360 4X4 Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

11012

CAP,STORAGE CASE

11012-1951

$6.76

11052

BRACKET,ELECTRIC BASE

11052-7529

$7.90

14091

COVER,CARBURETOR

14091-7516

$14.54

14091A

COVER,ENGINE,F.BLACK

14091-7524-6Z

$19.24

14091B

COVER,CYLINDER HEAD BRACKET

14091-7526

$18.36

18018

PLATE-HEAT GUARD

18018-7501

$5.31

27012

HOOK,SEAT

27012-1381

$36.50

39012

CASE-STORAGE

39012-7501

$21.02

49016

COVER-SEAL

49016-1221

$19.10

53011

PIN, DUAL SEAT PIVOT

53011-006

$4.61

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,TAPPING,5X10

92009-1332

$2.99

92009B

SCREW,6X25

92009-1465

$2.99

92009C

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT

92015-1700

$6.55

92022

WASHER,7X18X1.2

92022-1545

$0.84

92027

COLLAR,L=4.6

92027-1168

$3.81

92027A

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92027B

COLLAR,L=5.6

92027-1933

$4.37

92037

CLAMP,HOSE

92037-1827

$5.69

92039

RIVET

92039-1229

$0.80

92043

PIN,6X77

92043-1367

$7.64

92071

GROMMET

92071-3716

$4.39

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,STORAGE CASE

92072-1337

$27.26

92072B

BAND,BATTERY

92072-7501

$5.41

92075

DAMPER

92075-1054

$3.81

92075A

DAMPER,BATTERY

92075-1997

$8.75

92075B

DAMPER,RUBBER

92075-261

$3.85

92093

SEAL

92093-1457

$6.81

92093A

SEAL

92093-1577

$7.78

92093B

SEAL

92093-1578

$3.58

92093C

SEAL

92093-1580

$3.04

92093D

SEAL

92093-1581

$2.05

92093E

SEAL

92093-1582

$7.76

92143

COLLAR

92143-1087

$2.98

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92160

DAMPER

92160-1744

$4.85

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

550

PIN-COTTER,2.0X12

550D2012

$0.89

554

PIN,SNAP

554A0600

Unavailable

555

PIN-SPRING

555A0436

$3.74
