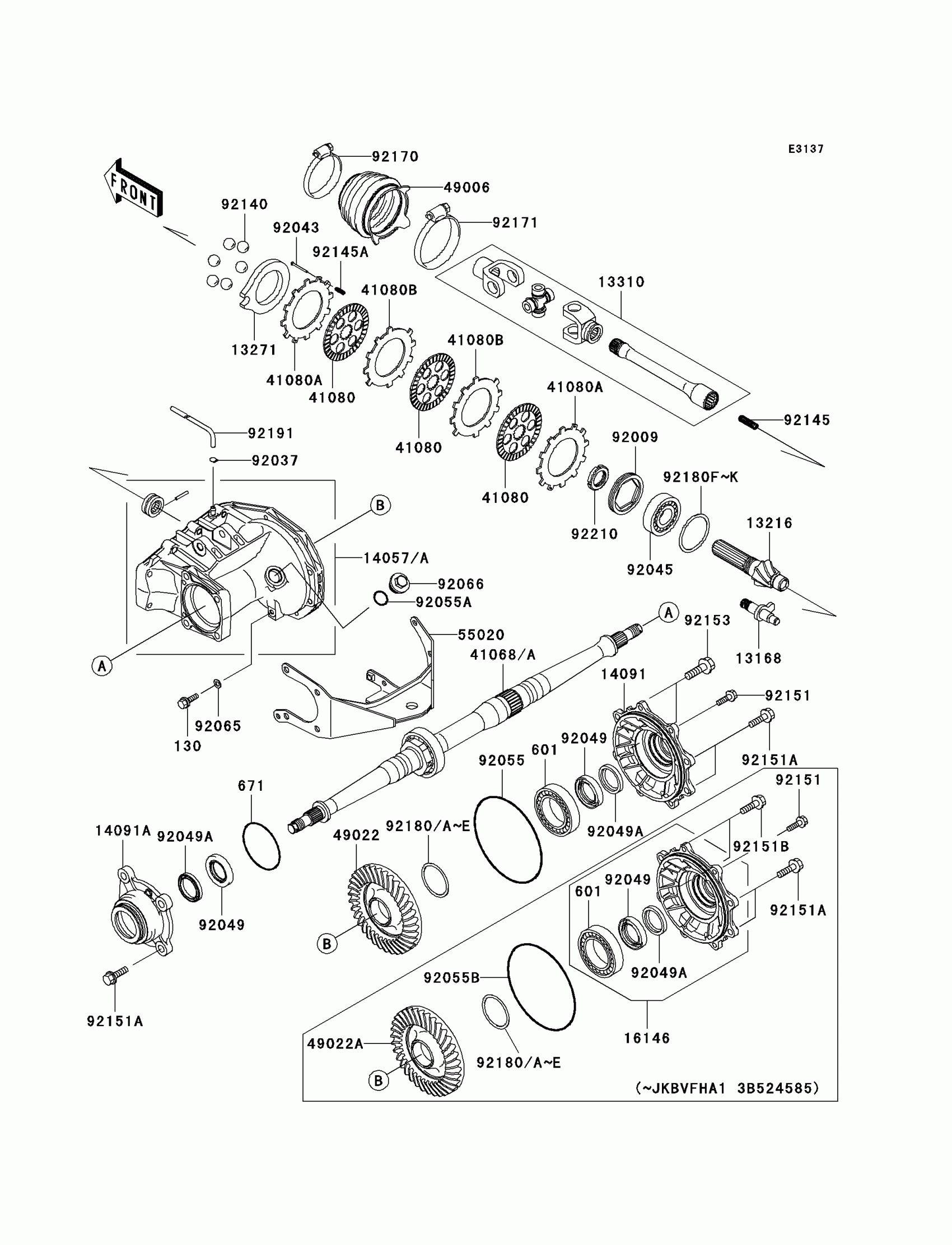

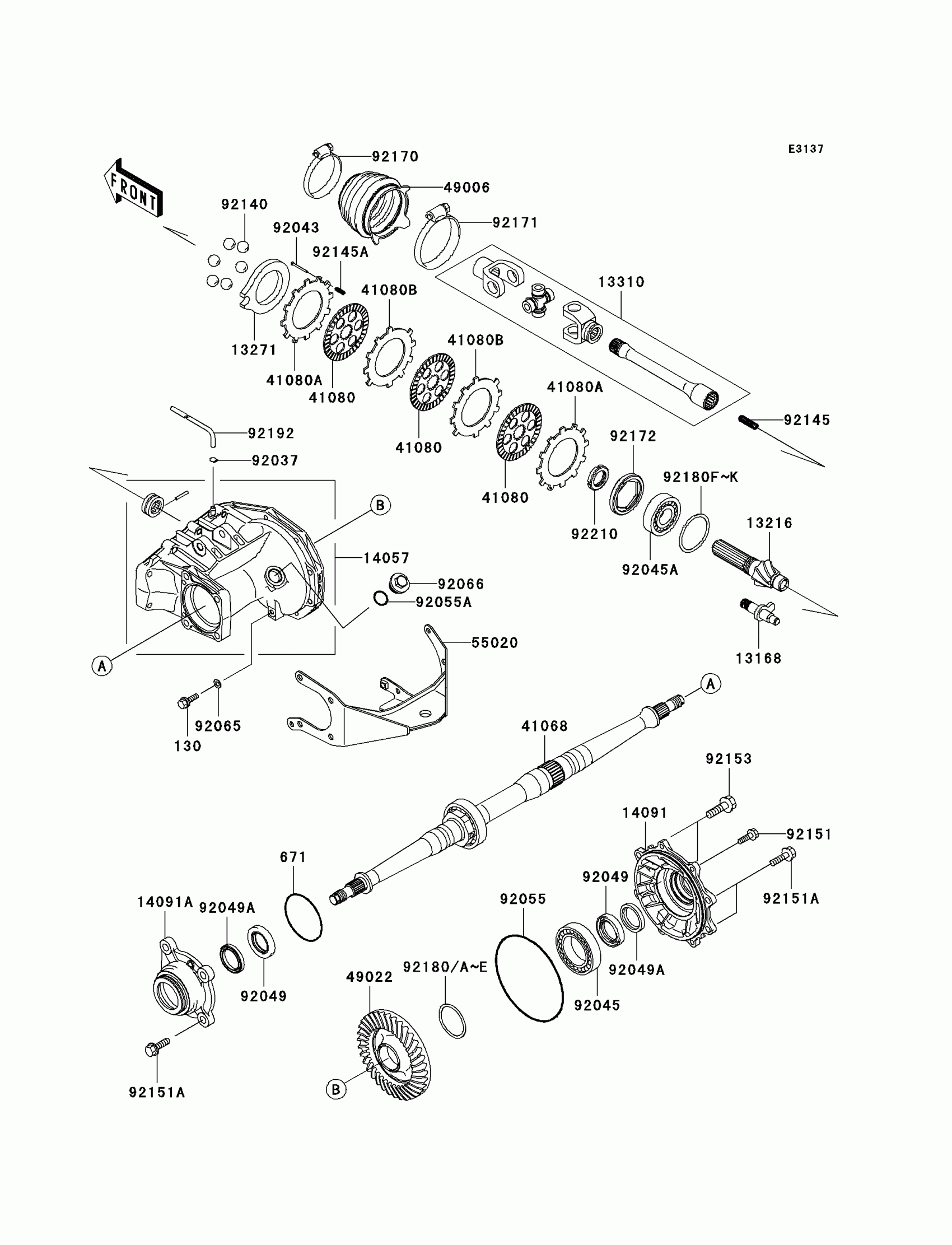

Kawasaki Prairie 360 4X4 Drive Shaft-Rear Diagram

#

Description
Price

13168

LEVER,BRAKE

13168-1687

Unavailable

13216

GEAR-COMP,RR,8T

13216-1188

Unavailable

13271

PLATE,CAM

13271-1367

Unavailable

13310

SHAFT-ASSY,RR DRIVE SHAFT

13310-1028

$189.28

14057

CASE-COMP-GEAR

14057-0001

$270.66

14091

COVER,RH

14091-0028

$75.25

14091A

COVER,LH

14091-1422

$65.10

41068

AXLE

41068-1453

$480.71

41080

DISC,FRICTION

41080-1482

$44.05

41080A

DISC,PRESSURE

41080-1483

$14.18

41080B

DISC,SEPARATER

41080-1484

$14.18

49006

BOOT,RR DRIVE SHAFT

49006-1358

$13.78

49022

GEAR-BEVEL,RR,35T

49022-0003

$245.98

55020

GUARD,RR CASE

55020-0038

Unavailable

92009

SCREW-SET-SOCKET,75X10

92009-1667

$90.10

92037

CLAMP-HOSE

92037-1104

$1.09

92043

PIN,3X35

92043-1617

$1.73

92045

BEARING-BALL,BX30-1C3 UR3

92045-1391

Unavailable

92049

SEAL-OIL,HTC40X58X8

92049-0012

$13.62

92049A

SEAL-OIL,SC40X52X7

92049-0013

$8.89

92055

RING-O,156.3X3.7

92055-0004

$10.29

92055A

RING-O,25.7X2.4

92055-1136

$3.81

92065

GASKET,8.5X16X1

92065-023

$2.63

92066

PLUG

92066-1303

$9.85

92140

BALL,D/O#12

92140-1064

$1.71

130

BOLT-FLANGED,8X16

130G0816

Unavailable

601

BEARING-BALL

601A6011

$38.77

671

O RING

671D2585

$6.08

92145

SPRING,RR DRIVE SHAFT

92145-1300

$2.36

92145A

SPRING,RR BRAKE

92145-1301

$1.36

92151

BOLT,8X30

92151-1908

$2.29

92151A

BOLT,10X35

92151-1909

$2.63

92153

BOLT,12X35

92153-0311

$3.75

92170

CLAMP

92170-1763

$4.29

92171

CLAMP

92171-1383

$3.35

92180

SHIM,55X64X0.15

92180-1417

Unavailable

92180A

SHIM,55X64X0.20

92180-1418

Unavailable

92180B

SHIM,55X64X0.50

92180-1419

Unavailable

92180C

SHIM,55X64X0.80

92180-1420

Unavailable

92180D

SHIM,55X64X1.00

92180-1421

Unavailable

92180E

SHIM,55X64X1.20

92180-1422

Unavailable

92180F

SHIM,60X72X0.15

92180-1423

Unavailable

92180G

SHIM,60X72X0.20

92180-1424

Unavailable

92180H

SHIM,60X72X0.50

92180-1425

Unavailable

92180I

SHIM,60X72X0.80

92180-1426

Unavailable

92180J

SHIM,60X72X1.00

92180-1427

Unavailable

92180K

SHIM,60X72X1.20

92180-1428

Unavailable

92191

TUBE,BREATHER

92191-1595

$17.25

92210

NUT,30MM

92210-1294

$41.60
