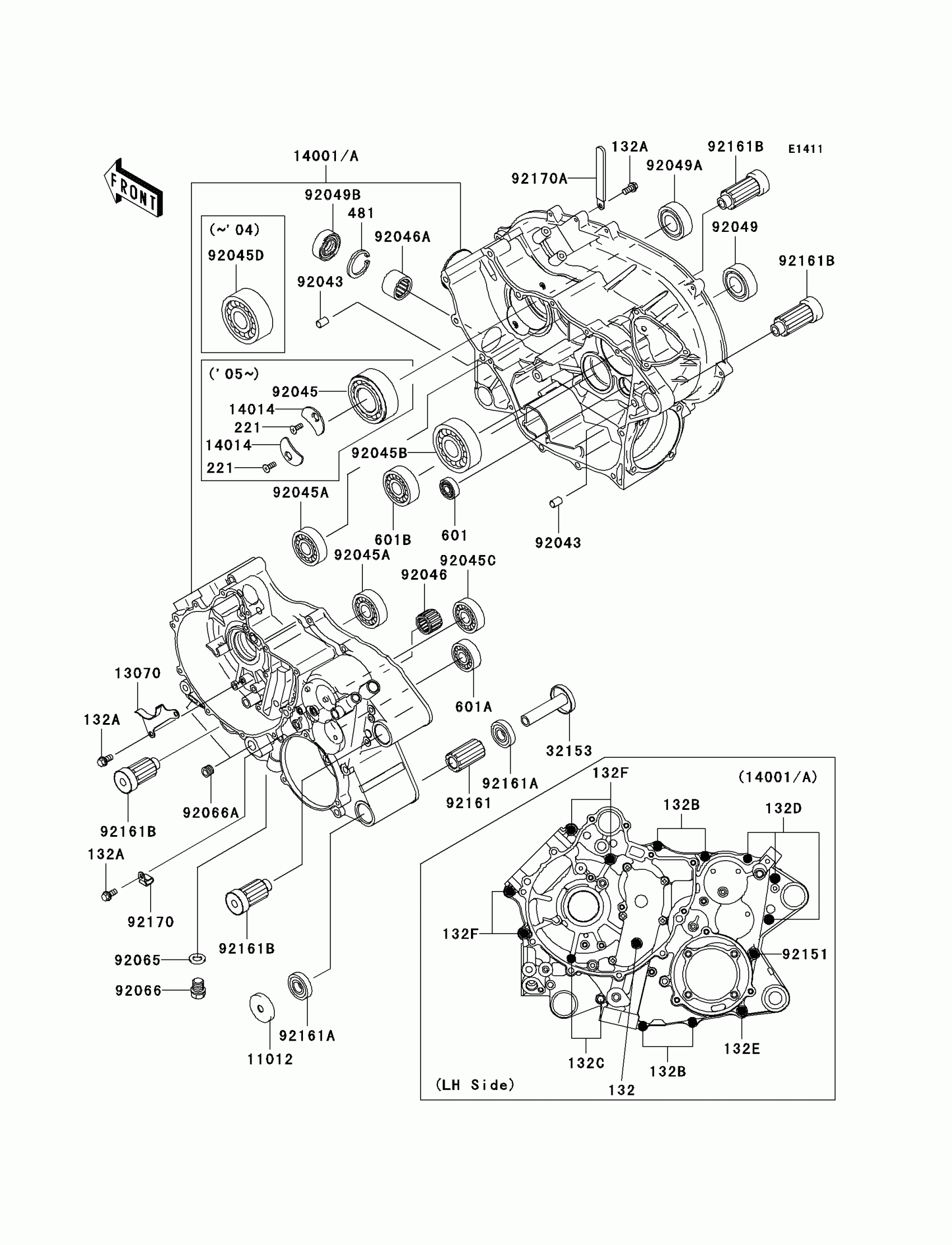

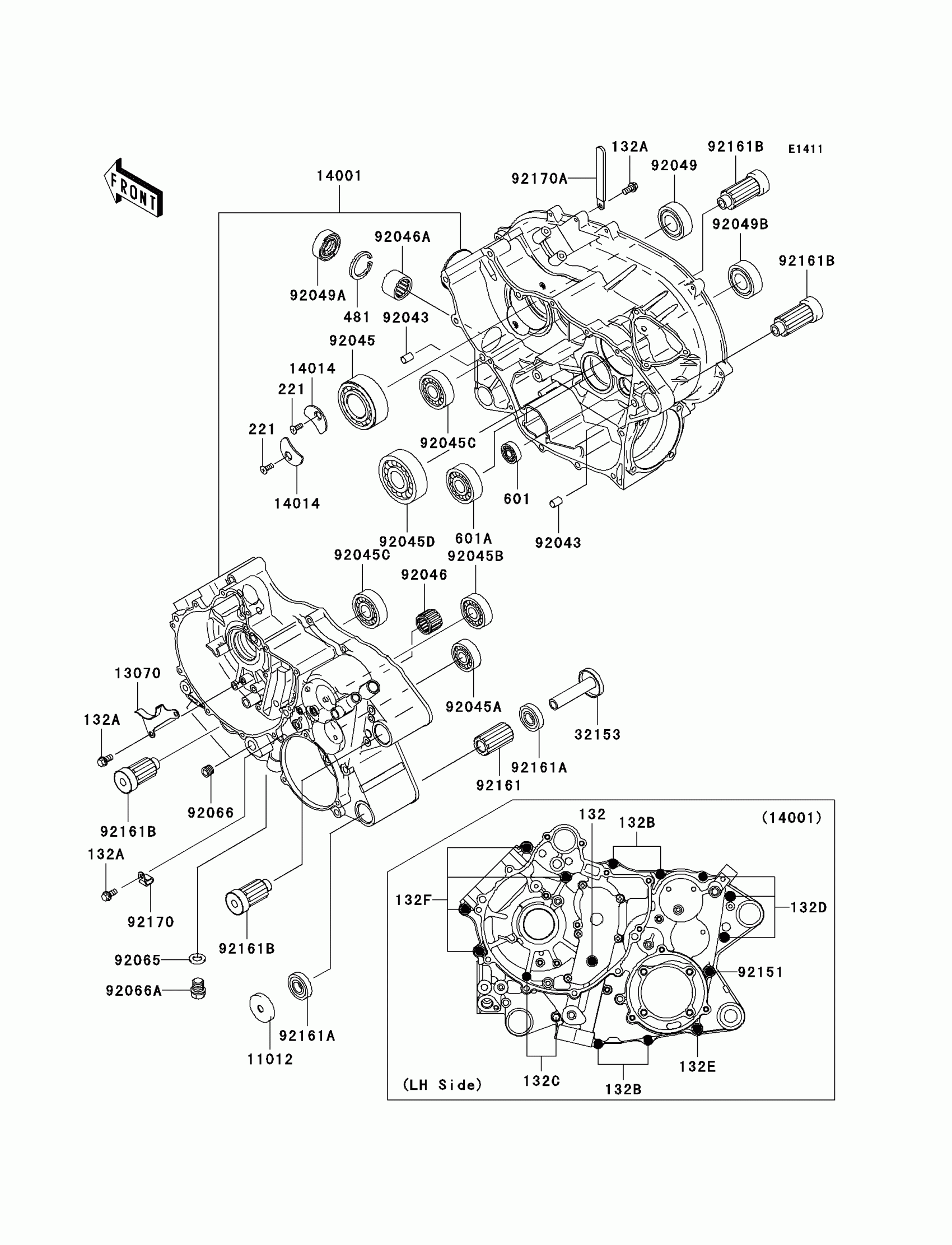

Kawasaki Prairie 360 4X4 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132J0885

$3.88

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

$1.92

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80

132C

BOLT-FLANGED-SMALL

132Y0665

$4.44

132D

BOLT-FLANGED-SMALL

132Y0685

$5.82

132E

BOLT-FLANGED-SMALL,8X110

132Y08110

$4.86

132F

BOLT-FLANGED-SMALL,8X75

132Y0875

$2.92

221

SCREW-CSK-CROS,6X16

221B0616

$0.59

481

CIRCLIP-TYPE-C,37MM

481J3700

$3.04

601

BEARING-BALL

601A6000

$12.89

601A

BEARING-BALL,#6004

601A6004

$11.91

601B

BEARING-BALL,#6304

601A6304

$14.55

11012

CAP,ENGINE BRACKET

11012-1228

$7.61

13070

GUIDE,CHAIN

13070-1255

$6.46

14001

SET-CRANKCASE

14001-0031

$761.22

14014

PLATE-POSITION

14014-0016

$14.96

32153

PIPE

32153-1873

$15.28

92043

PIN,10X14

92043-1506

$3.32

92045

BEARING-BALL,5207-X1ECG45

92045-0027

$86.83

92045A

BEARING-BALL,TMB304CCM

92045-1142

$40.43

92045B

BEARING-BALL,6306SH2

92045-1190

$40.80

92045C

BEARING-BALL,6303LUA

92045-1389

$21.65

92046

BEARING-NEEDLE

92046-1143

Unavailable

92046A

BEARING-NEEDLE

92046-1277

$24.97

92049

SEAL-OIL,TC30458

92049-1451

$14.60

92049A

SEAL-OIL,TC 35X50X8

92049-1452

$13.75

92049B

SEAL-OIL,TCY 28X42X8

92049-1570

$17.31

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

92066A

PLUG,PT3/8X10

92066-1262

$3.31

92151

BOLT,8X110

92151-1689

$5.00

92161

DAMPER,BACK UNDER,PIPE

92161-1257

$7.99

92161A

DAMPER,BACK UNDER

92161-1258

$5.24

92161B

DAMPER,L=63.5

92161-1259

$23.05

92170

CLAMP

92170-1577

$3.83

92170A

CLAMP

92170-1925

$2.40
