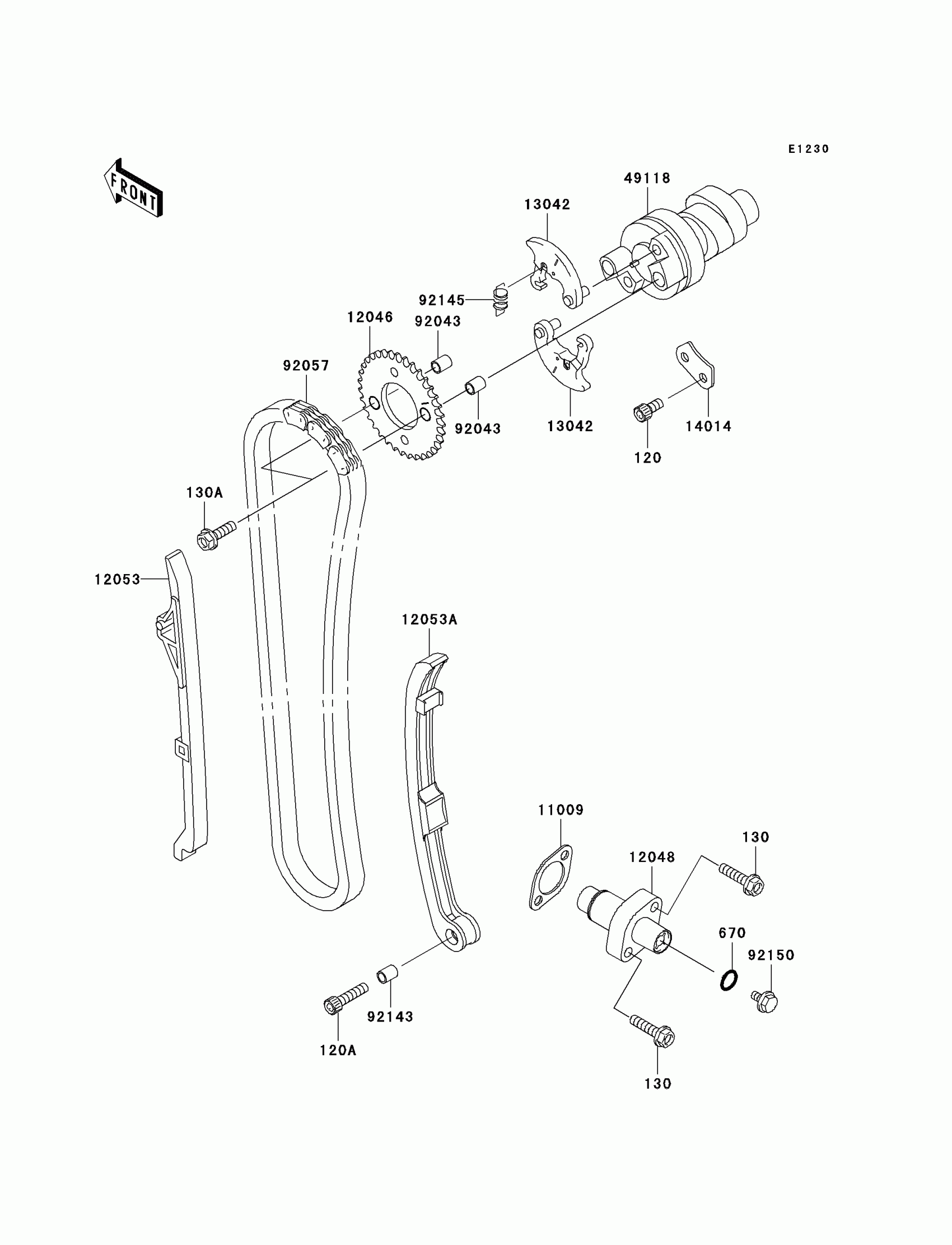

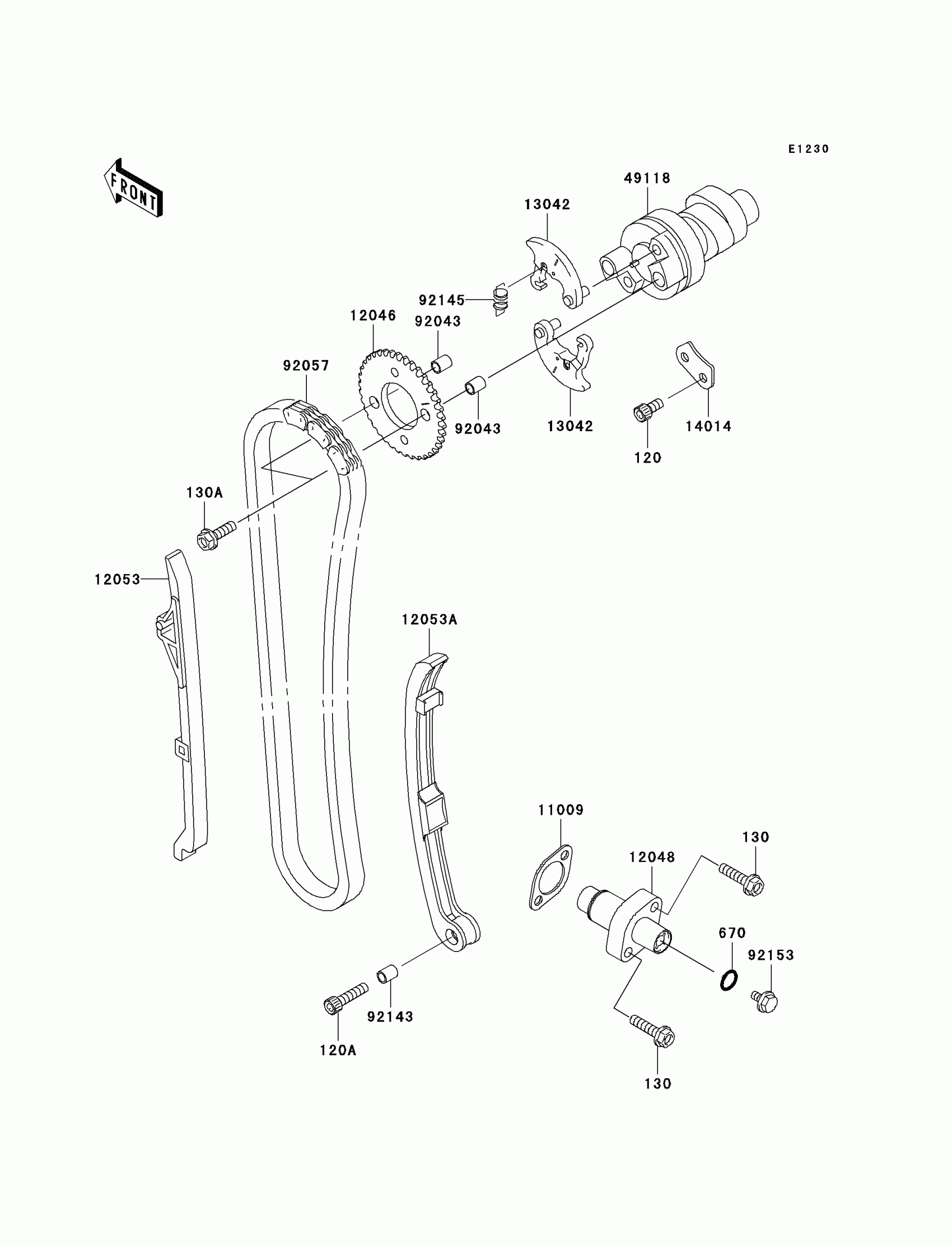

Kawasaki Prairie® 360 4X4 Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X12

120CA0612

$1.71

120A

BOLT-SOCKET,6X25

120CA0625

$2.06

130

BOLT-FLANGED,6X25

130BB0625

$2.80

130A

BOLT-FLANGED,6X20

130CD0620

$1.76

670

O RING,10MM

670D2010

$1.94

11009

GASKET,TENSIONER

11009-1858

$4.61

12046

SPROCKET,38T

12046-1225

$60.55

12048

TENSIONER-ASSY

12048-1193

$146.46

12053

GUIDE-CHAIN,FR

12053-1423

$47.58

12053A

GUIDE-CHAIN,TENSIONER

12053-1451

$69.82

13042

WEIGHT,DECOMP

13042-1149

$42.76

14014

PLATE-POSITION

14014-1095

$5.54

49118

CAMSHAFT-COMP

49118-1217

$264.20

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92057

CHAIN,CAM,82RH2010-118L

92057-1256

$129.67

92143

COLLAR,6X8X10.2

92143-1253

$5.78

92145

SPRING,DECOMP

92145-1495

$4.14

92153

BOLT,6X6

92153-1380

$1.78
