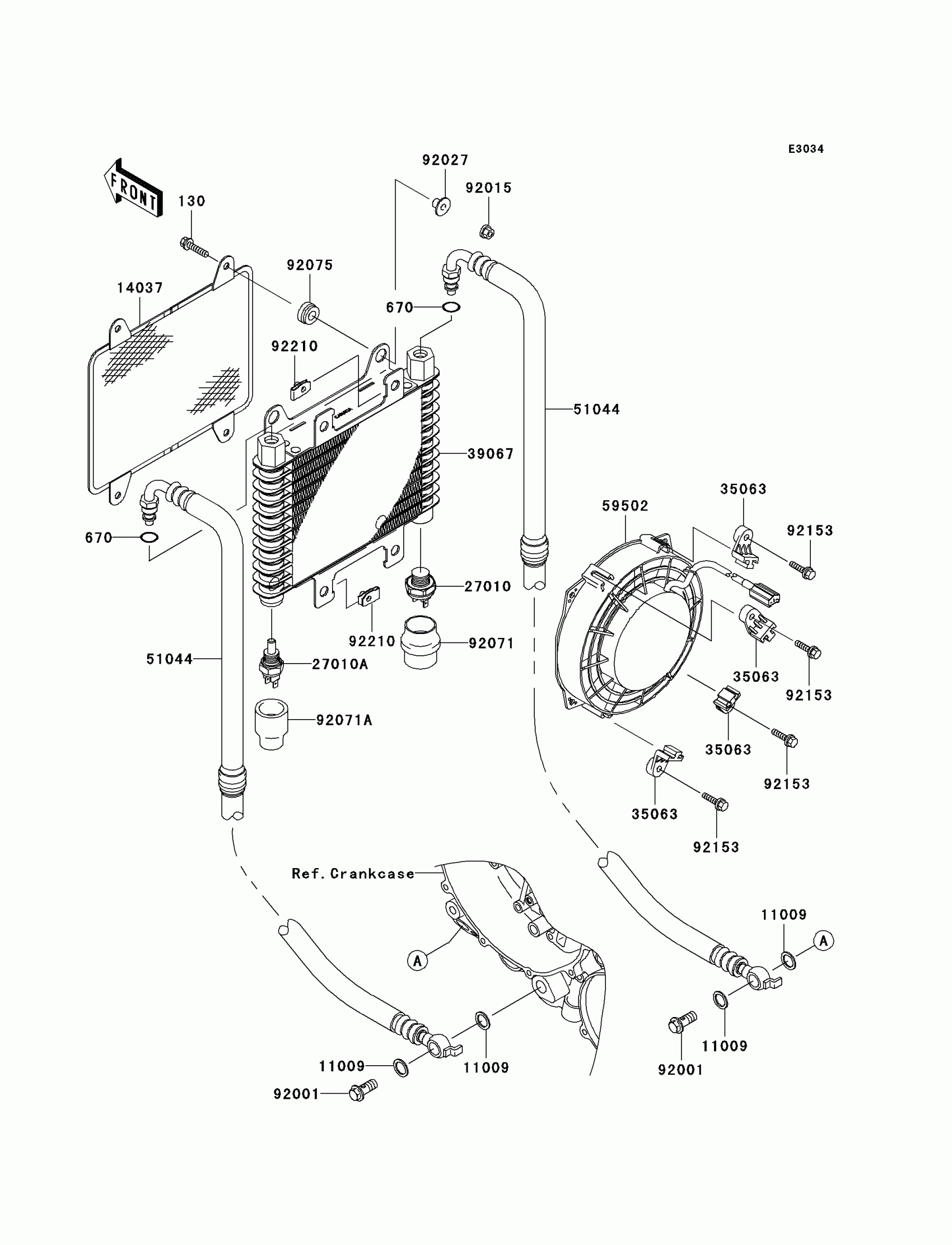

Kawasaki Prairie 360 4X4 Advantage Classic Oil Cooler(C1) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130J0625

$2.62

670

O RING,8MM

670D1508

$4.31

11009

GASKET,14X19.5X1.4

11009-1461

$4.96

14037

SCREEN,OIL COOLER

14037-1313

$32.11

27010

SWITCH

27010-1428

$72.52

27010A

SWITCH,OIL COOLER,LH

27010-1472

$84.45

35063

STAY

35063-1212

$4.19

39067

COOLER-OIL

39067-1070

$440.87

51044

TUBE-ASSY,L=1080

51044-1227

$182.58

59502

FAN-ASSY

59502-1138

$451.24

92001

BOLT,14X28.5

92001-1930

$9.51

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92027

COLLAR

92027-1767

$5.52

92071

GROMMET,SWITCH OIL COOLER,RH

92071-1272

$10.94

92071A

GROMMET,SWITCH OIL COOLER,LH

92071-1273

$9.68

92075

DAMPER

92075-277

$2.84

92153

BOLT,6X22

92153-1087

$1.72

92210

NUT

92210-1331

$5.53
