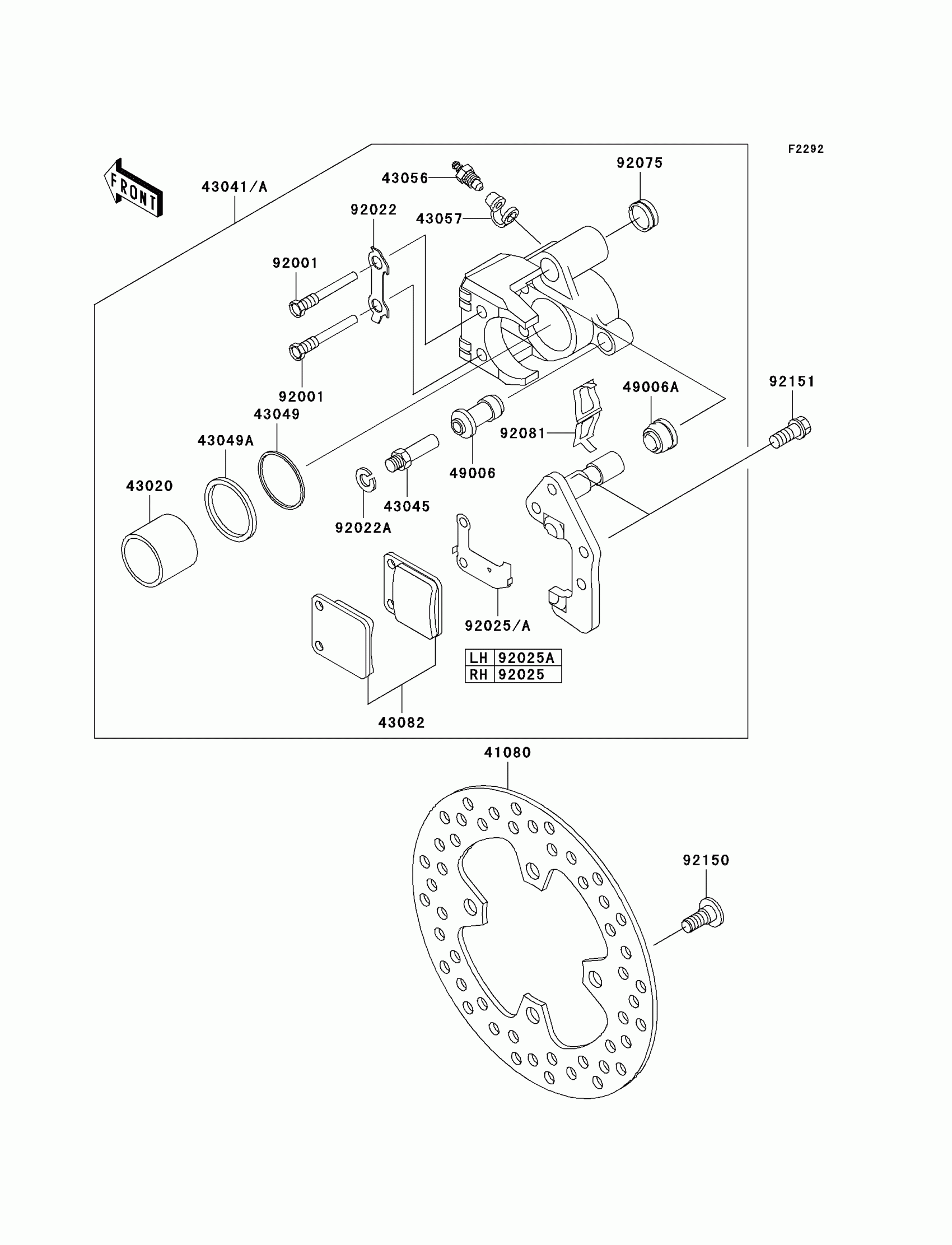

Kawasaki Prairie 360 4X4 Advantage Classic Front Brake(C1) Diagram

Description

Price

41080

DISC,FR

41080-1513

Unavailable

43020

PISTON-COMP-BRAKE

43020-1114

$68.28

43041

CALIPER-ASSY,FR,LH

43041-1816

$378.67

43041A

CALIPER-ASSY,FR,RH

43041-1817

$378.67

43045

SHAFT-CALIPER

43045-1010

$20.77

43049

PACKING

43049-1081

$7.77

43049A

PACKING

43049-1082

$11.06

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43082

PAD-ASSY-BRAKE

43082-1201

Unavailable

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1089

$7.38

92001

BOLT,PAD HOLDER

92001-1723

$7.79

92022

WASHER,LOCK

92022-1372

$5.24

92022A

WASHER,WAVE

92022-1373

$3.92

92025

SHIM,PAD

92025-1344

$15.14

92025A

SHIM,PAD

92025-1817

$9.28

92075

DAMPER

92075-1414

$7.34

92081

SPRING,PAD

92081-1502

$8.51

92150

BOLT,SOCKET,8X20

92150-1800

$7.29

92151

BOLT,FLANGED,8X19

92151-1793

$2.45
