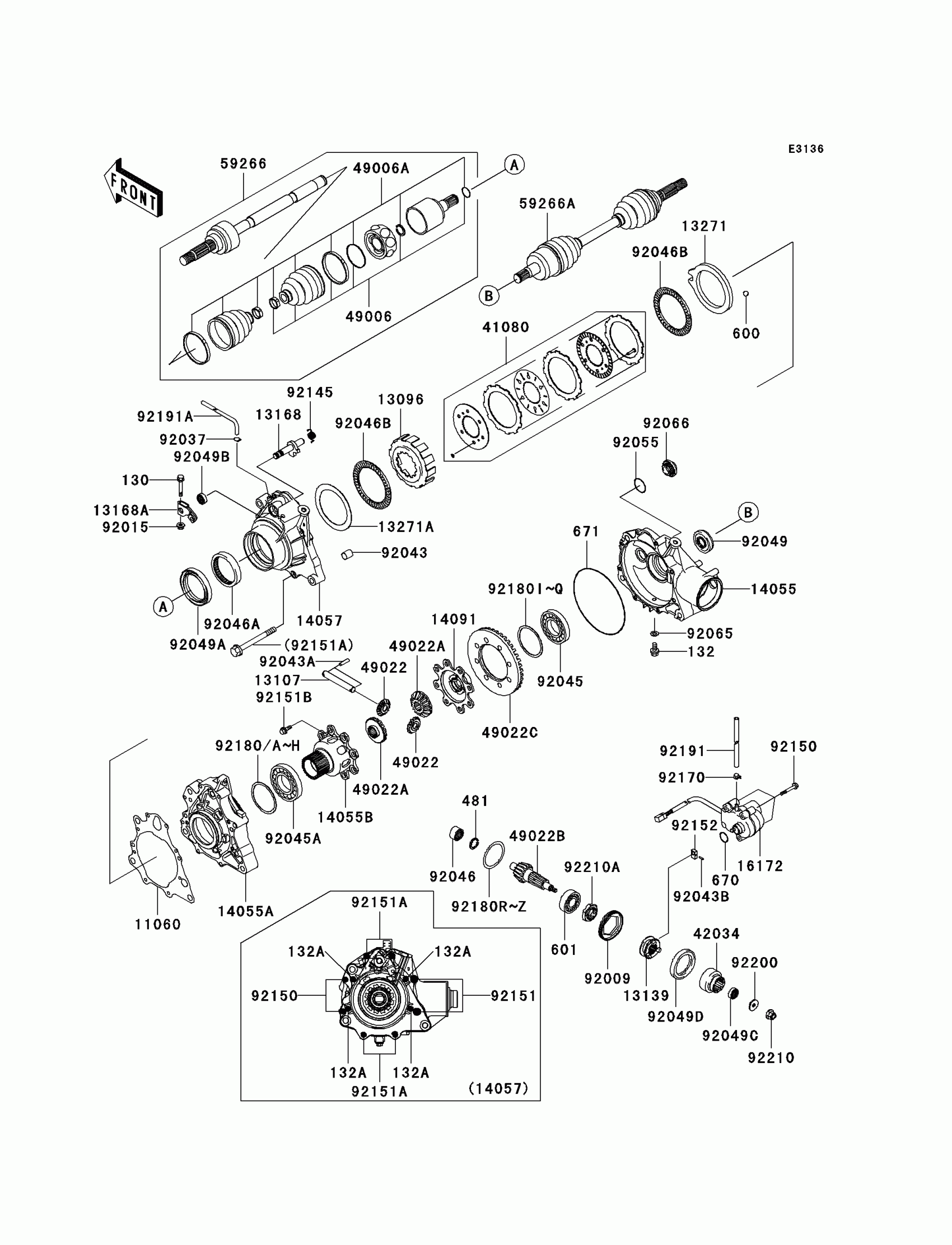

Kawasaki Prairie 360 4X4 Advantage Classic Drive Shaft-Front(C1) Diagram
#
11060
GASKET,DIFF CASE
11060-1982
$29.99
13096
HOUSING-CLUTCH,DISC
13096-1163
$45.60
13107
SHAFT,BEVEL
13107-1447
Unavailable
13139
SHIFTER,DIFFERENTIAL
13139-1095
Unavailable
13168
LEVER,DIFF
13168-1724
$41.94
13168A
LEVER,DIFFERENTIAL
13168-1725
$19.76
13271
PLATE,CAM
13271-1497
Unavailable
13271A
PLATE,DISC
13271-1503
$15.39
14055
CASE-GEAR,DIFFERENTIAL,RH
14055-1149
$161.98
14055A
CASE-GEAR,CENTER
14055-1155
$142.53
14055B
CASE-GEAR,BEVEL,LH
14055-1156
Unavailable
14057
CASE-COMP-GEAR,DIFF,LH
14057-1004
Unavailable
14091
COVER,BEVEL,RH
14091-1197
$64.18
16172
ACTUATOR,DIFFERENTIAL
16172-1057
$421.13
41080
DISC ASSY,DIFFERENTIAL LOCK
41080-1512
Unavailable
42034
COUPLING,BEVEL
42034-1187
$131.88
49006
BOOT,BALL JOINT,INSIDE
49006-1342
$44.63
49006A
BOOT,BALL JOINT,OUTSIDE
49006-1343
$48.91
49022
GEAR-BEVEL,10T
49022-1177
Unavailable
49022A
GEAR-BEVEL,16T
49022-1178
$155.92
49022B
GEAR-BEVEL,DIFF,8T
49022-1189
$462.00
49022C
GEAR-BEVEL,35T
49022-1190
Unavailable
59266
JOINT-BALL,LH
59266-1129
$685.40
59266A
JOINT-BALL,RH
59266-1130
$685.40
92009
SCREW,64MM
92009-1914
$29.63
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92037
CLAMP-HOSE
92037-1104
$1.45
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN
92043-1575
$2.46
92043B
PIN,2X9.8
92043-1649
$2.61
92045
BEARING-BALL,60/32
92045-1393
$27.70
92045A
BEARING-BALL,6910
92045-1394
$50.18
92046
BEARING-NEEDLE,AJ501515
92046-1281
$36.04
92046A
BEARING-NEEDLE,TA627412ZE02
92046-1282
Unavailable
92046B
BEARING-NEEDLE,AK1116
92046-1286
$54.92
92049
SEAL-OIL,SDD7 22X48X7HS
92049-1534
$18.37
92049A
SEAL-OIL,HTCY 62X81X10.5
92049-1536
$21.99
92049B
SEAL-OIL,TC 12X22X7
92049-1550
$5.00
92049C
SEAL-OIL,KB 13X19X13
92049-1572
$9.43
92049D
SEAL-OIL,TCY 48X65X8
92049-1573
$17.31
92055
RING-O,25.7X2.4
92055-1136
$5.00
92065
GASKET,8.5X16X1
92065-023
$3.88
92066
PLUG
92066-1303
$12.96
92145
SPRING,DIFF RETURN
92145-1344
$3.70
92150
BOLT,6X45
92150-1884
Unavailable
92151
BOLT,8X50
92151-1794
$2.80
92151A
BOLT,6X60
92151-1795
$2.41
92151B
BOLT,10X19.5
92151-1910
$3.26
92152
COLLAR
92152-1349
$40.82
92170
CLAMP
92170-2042
$1.30
92180
SHIM,62X71X0.15
92180-1390
Unavailable
92180A
SHIM,62X71X0.20
92180-1391
Unavailable
92180B
SHIM,62X71X0.50
92180-1392
Unavailable
92180C
SHIM,62X71X0.70
92180-1393
Unavailable
92180D
SHIM,62X71X0.80
92180-1394
Unavailable
92180E
SHIM,62X71X0.90
92180-1395
Unavailable
92180F
SHIM,62X71X1.00
92180-1396
Unavailable
92180G
SHIM,62X71X1.10
92180-1397
Unavailable
92180H
SHIM,62X71X1.20
92180-1398
Unavailable
92180I
SHIM,32X42X0.15
92180-1399
Unavailable
92180J
SHIM,32X42X0.20
92180-1400
Unavailable
92180K
SHIM,32X42X0.50
92180-1401
Unavailable
92180L
SHIM,32X42X0.70
92180-1402
Unavailable
92180M
SHIM,32X42X0.80
92180-1403
Unavailable
92180N
SHIM,32X42X0.90
92180-1404
Unavailable
92180O
SHIM,32X42X1.00
92180-1405
Unavailable
92180P
SHIM,32X42X1.10
92180-1406
Unavailable
92180Q
SHIM,32X42X1.20
92180-1407
Unavailable
92180R
SHIM,50X61X0.15
92180-1408
Unavailable
92180S
SHIM,50X61X0.20
92180-1409
Unavailable
92180T
SHIM,50X61X0.50
92180-1410
Unavailable
92180U
SHIM,50X61X0.70
92180-1411
Unavailable
92180V
SHIM,50X61X0.80
92180-1412
Unavailable
92180W
SHIM,50X61X0.90
92180-1413
Unavailable
92180X
SHIM,50X61X1.00
92180-1414
Unavailable
92180Y
SHIM,50X61X1.10
92180-1415
Unavailable
92180Z
SHIM,50X61X1.20
92180-1416
Unavailable
92191
TUBE,4.7X9.5X800
92191-1594
$12.19
92191A
TUBE,BREATHER
92191-1638
$10.55
92200
WASHER,8X24X0.10
92200-1574
$4.49
130
BOLT-FLANGED,6X35
130G0635
$0.93
132
BOLT-FLANGED-SMALL,8X16
132J0816
$3.84
132A
BOLT-FLANGED-SMALL,6X30
132Y0630
$3.41
481
CIRCLIP-TYPE-C,25MM
481J2500
$3.07
600
BALL-STEEL,11/32"
600A1100
$0.64
601
BEARING-BALL,#6305
601A6305
$18.63
670
O RING
670D3022
$2.80
671
O RING
671D25145
$20.09
92210
NUT,FLANGED,LOCK,8MM
92210-0005
$4.67
92210A
NUT,25MM
92210-1225
$15.39
