2002 Kawasaki Prairie 300 Suspension Diagram

← All diagrams

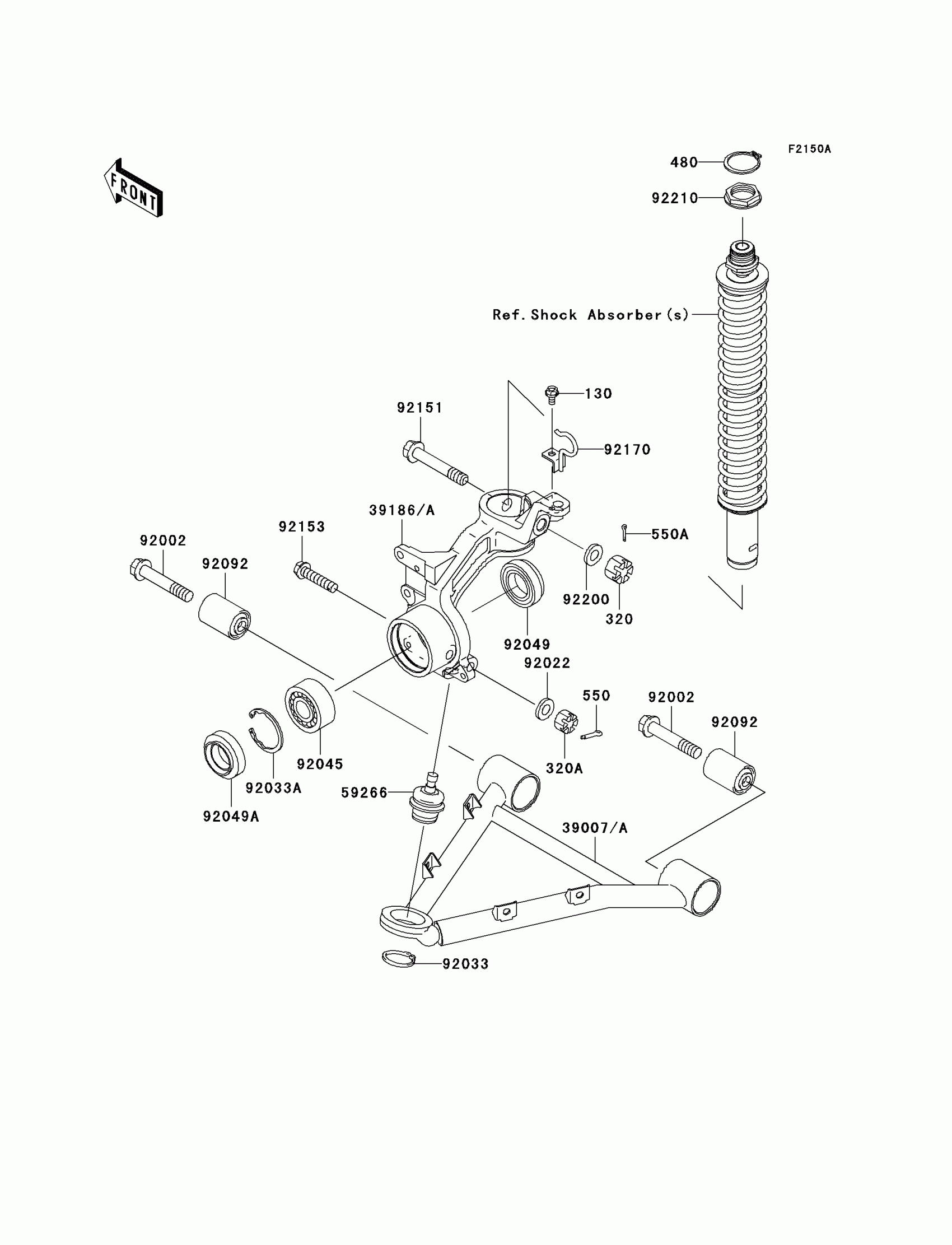

Find the part on the Suspension diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 300 Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

320

NUT-CASTLE

320G1200

1
Out of stock

320A

NUT-CASTLE

320H1000

1
Out of stock

480

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock

550A

PIN-COTTER,3.0X25

550D3025

1
Out of stock

39007

ARM-SUSP,FR,LWR,LH

39007-1290

1

$101.06

In stock

39007A

ARM-SUSP,FR,LWR,RH

39007-1291

1

$101.06

In stock

39186

KNUCKLE,FR,LH

39186-0008

1

$297.26

In stock

39186A

KNUCKLE,FR,RH

39186-0009

1

$269.96

In stock

59266

JOINT-BALL

59266-1115

1
Out of stock

92002

BOLT,FLANGED,12X67

92002-1861

1
Out of stock

92022

WASHER,10.2X16X1

92022-1829

1
Out of stock

92033

RING-SNAP,30MM

92033-1218

1
Out of stock

92033A

RING-SNAP,55MM

92033-1274

1
Out of stock

92045

BEARING-BALL,DAC3055C2RKCD3

92045-1222

1
Out of stock

92049

SEAL-OIL,MT038N1

92049-1476

1
Out of stock

92049A

SEAL-OIL,SDD04 38 55 8

92049-1477

1
Out of stock

92092

BUSHING-RUBBER

92092-1076

1
Out of stock

92151

BOLT,FLANGED,12X65.5

92151-1101

1
Out of stock

92153

BOLT,FLANGED,10X44

92153-0579

1
Out of stock

92170

CLAMP,HOSE

92170-1720

1
Out of stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock

92210

NUT,35MM

92210-1066

1
Out of stock
