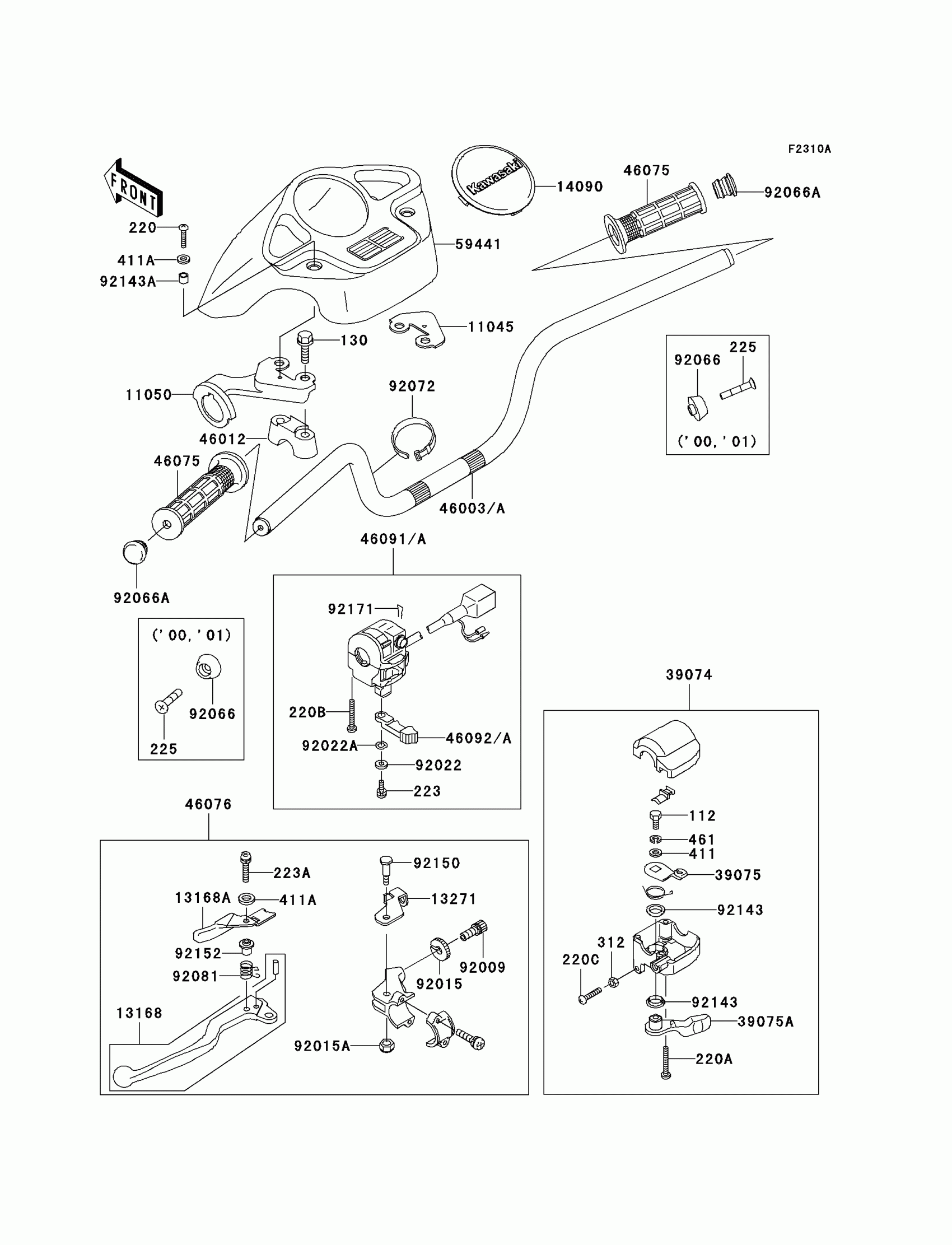

2002 Kawasaki Prairie 300 Handlebar Diagram
Find the part on the Handlebar diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
130
BOLT-FLANGED,8X60
130P0860
1
Out of stock
220
SCREW-PAN-CROS,4X20
220C0420
1
Out of stock
220A
SCREW-PAN-CROS,5X30
220C0530
1
Out of stock
13168A
LEVER,LOCK
13168-1673
1
Out of stock
13271
PLATE,LOCK
13271-1259
1
Out of stock
39075A
LEVER-THROTTLE
39075-1059
1
Out of stock
92009
SCREW,CABLE ADJUST,8MM
92009-1435
1
Out of stock
92022
WASHER,5MM
92022-1837
1
Out of stock
92022A
WASHER,WAVE,5MM
92022-1838
1
Out of stock
92150
BOLT
92150-1420
1
Out of stock
223A
SCREW-PAN-WS-CROS
223C0520
1
Out of stock
312
NUT-HEX,6MM,BLACK
312C0600
1
Out of stock
411A
WASHER-PLAIN,5MM,BLACK
411F0500
1
Out of stock
