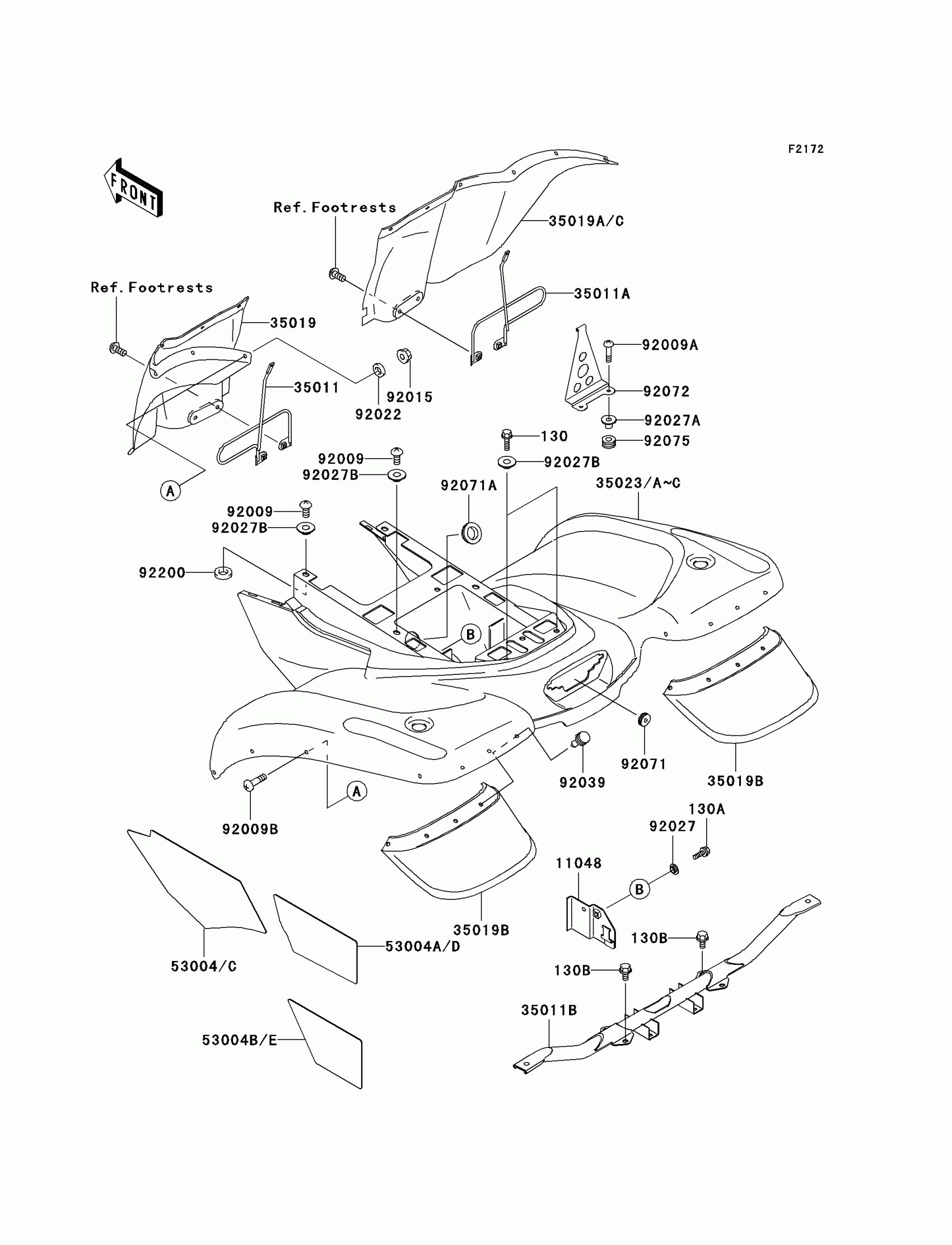

Kawasaki Prairie 300 Rear Fender(s) Diagram
#
Description
Price
130
BOLT-FLANGED,6X18
130C0618
$1.69
130A
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
130B
BOLT-FLANGED,8X16
130J0816
$1.66
11048
BRACKET,ELECTRIC
11048-1966
$54.31
35011
STAY,REAR FLAP,LH
35011-1759
Unavailable
35011A
STAY,REAR FLAP,RH
35011-1760
Unavailable
35011B
STAY,REAR FENDER
35011-1782
$60.70
35019
FLAP,RR,FR,LH,F.BLACK
35019-1334-6Z
$53.31
35019B
FLAP,RR,RR,F.BLACK
35019-1336-6Z
$22.71
35019C
FLAP,RR,FR,RH,F.BLACK
35019-1375-6Z
$53.31
35023B
FENDER-REAR,L.GREEN
35023-1579-6A
$240.80
35023C
FENDER-REAR,F.RED
35023-1579-6L
$229.18
53004C
MAT,REAR FENDER
53004-1149
Unavailable
53004D
MAT,REAR FENDER
53004-1150
Unavailable
53004E
MAT,REAR FENDER
53004-1151
Unavailable
92009
SCREW,TAPPING,6X16
92009-1166
$5.52
92009A
SCREW,6X25
92009-1465
$3.92
92009B
SCREW,6X16
92009-1621
Unavailable
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,6.5X16X1.0
92022-1093
$2.08
92027
COLLAR,L=3.5
92027-1018
$5.24
92027A
COLLAR,FLANGED,L=12.1,BLACK
92027-1651
$5.57
92027B
COLLAR,L=4.7
92027-1964
$7.34
92039
RIVET
92039-1229
$1.19
92071
GROMMET,SENSOR LEAD
92071-1058
$5.73
92071A
GROMMET
92071-1237
$7.90
92072
BAND
92072-1361
$11.63
92075
DAMPER,CASE
92075-222
$7.34
92200
WASHER,8.5X20X2.3
92200-1055
$3.94
