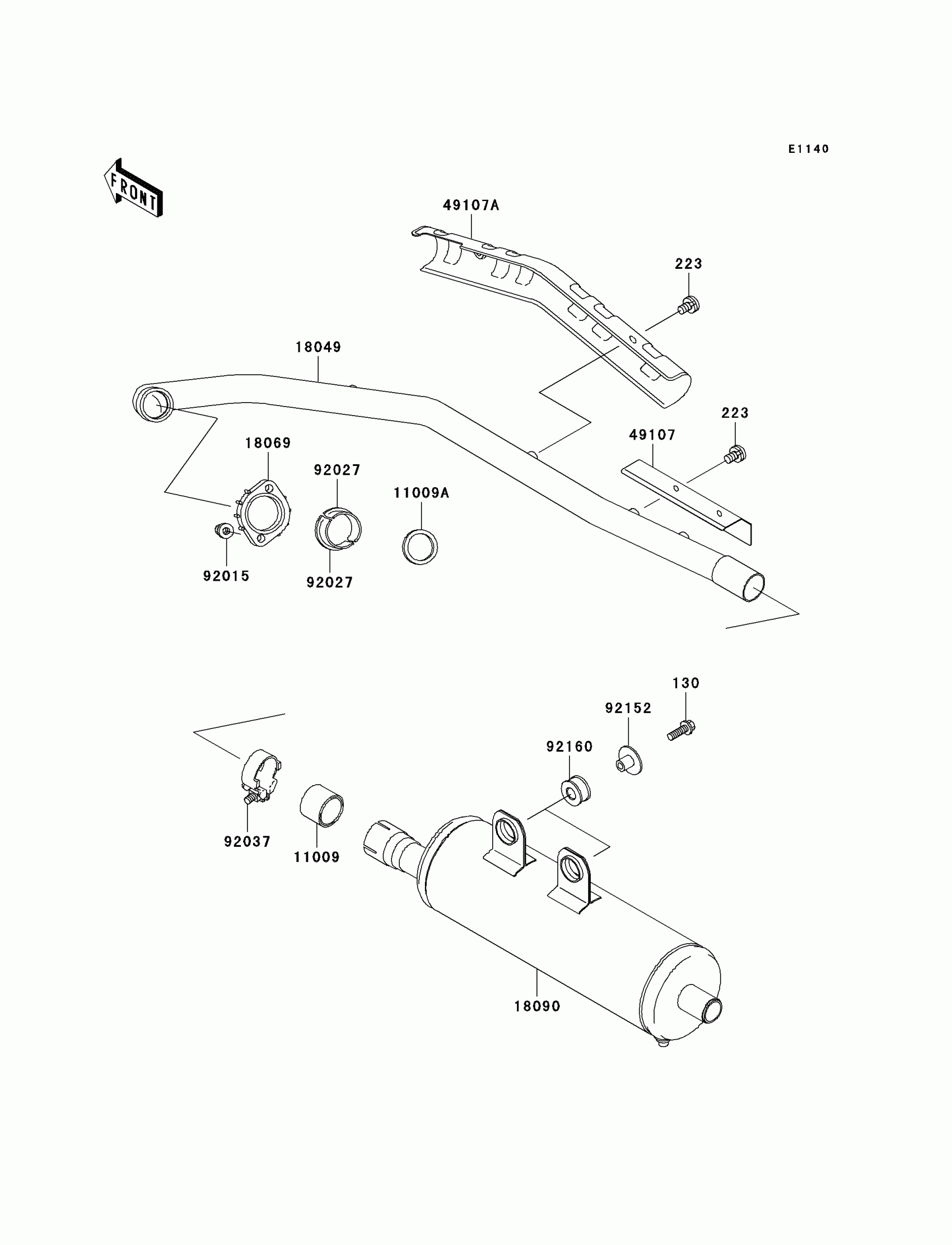

Kawasaki Prairie 300 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X30

130J0830

$4.15

223

SCREW-PAN-WS-CROS

223C0610

$4.12

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$22.90

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

18049

PIPE-EXHAUST

18049-1884

$85.29

18069

HOLDER-EXHAUST PIPE

18069-1014

$18.82

18090

BODY-COMP-MUFFLER

18090-1675

$314.91

49107

COVER-EXHAUST PIPE

49107-1130

$34.39

49107A

COVER-EXHAUST PIPE

49107-1135

$54.22

92015

NUT,8MM

92015-1402

$4.69

92027

COLLAR,EXHAUST PIPE

92027-264

$4.73

92037

CLAMP,42MM

92037-1349

$12.95

92152

COLLAR,MUFFLER

92152-1152

$7.98

92160

DAMPER,MUFFLER

92160-1990

$5.24
