Description

Price

130

BOLT-FLANGED

130J0610

$2.33

13151A

SWITCH-COMP,D.C.TERMINAL

13151-1094

$144.64

14024

COVER,KEY

14024-1551

$6.29

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$58.77

26030

HARNESS

26030-1058

$17.71

27005A

SWITCH-ASSY-IGNITION

27005-1229

$122.45

27008

KEY-LOCK,BLANK

27008-1041

$17.98

27008A

KEY-LOCK,BLANK

27008-1042

$17.98

27008B

KEY-LOCK,BLANK

27008-1043

$17.98

27008C

KEY-LOCK,BLANK

27008-1044

$17.98

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$18.72

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$18.72

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$18.72

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$18.72

27010

SWITCH,BRAKE LAMP

27010-025

$29.24

27010A

SWITCH,BRAKE

27010-1294

$35.18

32059

BRACKET-SWITCH,REAR BRAKE

32059-1136

$8.03

49006

BOOT

49006-1261

$22.51

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=186

92072-056

$5.00

92144

SPRING,BRAKE LAMP SWITCH

92144-1343

$8.18

92210

NUT,IGNITION SWITCH

92210-1109

$6.22

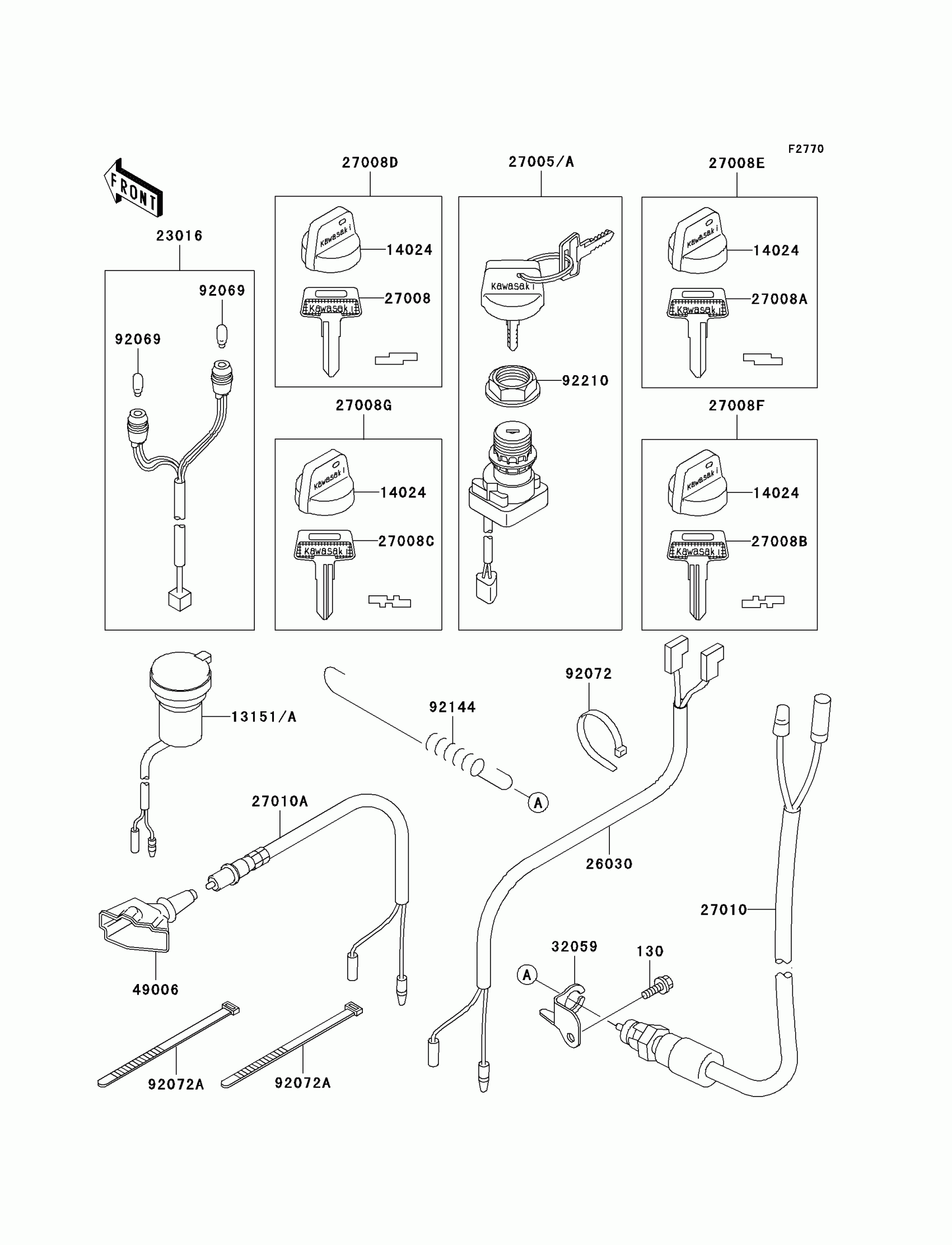

Kawasaki Prairie 300 Ignition Switch Diagram

BOLT-FLANGED

SWITCH-COMP,D.C.TERMINAL

COVER,KEY

LAMP-ASSY,NEUTRAL&REVERSE

HARNESS

SWITCH-ASSY-IGNITION

KEY-LOCK,BLANK

KEY-LOCK,BLANK

KEY-LOCK,BLANK

KEY-LOCK,BLANK

KEY-LOCK,BLANK,W/COVER

KEY-LOCK,BLANK,W/COVER

KEY-LOCK,BLANK,W/COVER

KEY-LOCK,BLANK,W/COVER

SWITCH,BRAKE LAMP

SWITCH,BRAKE

BRACKET-SWITCH,REAR BRAKE

BOOT

BULB,12V 3W,T7

BAND,L=149

BAND,L=186

SPRING,BRAKE LAMP SWITCH

NUT,IGNITION SWITCH
