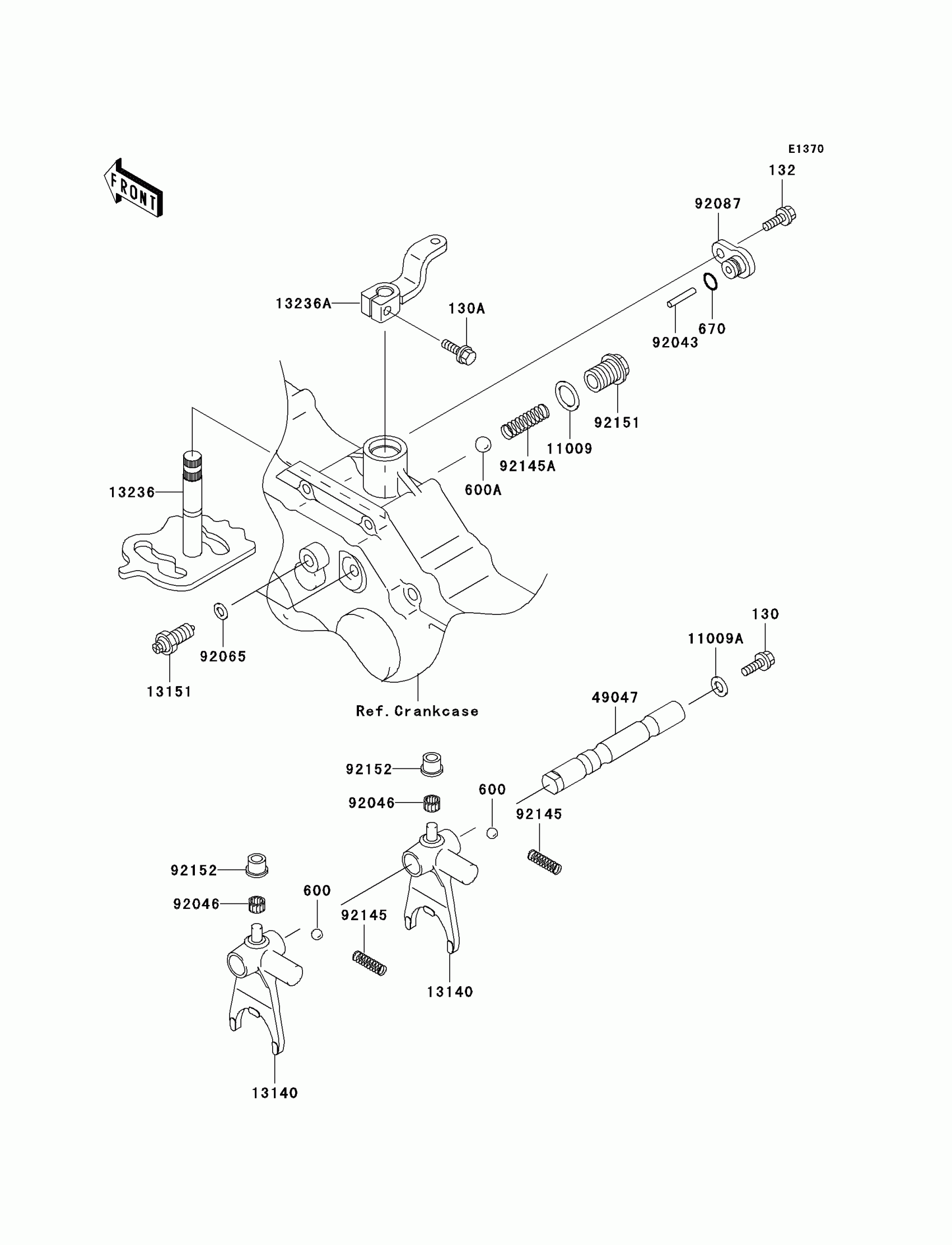

Kawasaki Prairie 300 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X18

130G0618

$1.44

130A

BOLT-FLANGED,6X20

130P0620

$1.70

132

BOLT-FLANGED-SMALL

132J0614

$2.33

600

BALL-STEEL,11/32"

600A1100

$0.64

600A

BALL-STEEL,13/32"

600A1300

$0.94

670

O RING,10MM

670D1510

$4.69

11009

GASKET,15.5X22X1

11009-1008

$3.63

11009A

GASKET,6.5X12X1.0

11009-1568

$4.35

13140

FORK-SHIFT

13140-1277

$102.97

13151

SWITCH-COMP,NEUTRAL

13151-1069

$27.37

13236

LEVER-COMP

13236-1325

$70.47

13236A

LEVER-COMP,FORWARD/REVERSE

13236-1327

Unavailable

49047

ROD-SHIFT

49047-1099

Unavailable

92043

PIN,4X34.8

92043-1579

$2.46

92046

BEARING-NEEDLE

92046-1262

$7.34

92065

GASKET,10.5X16X1

92065-058

$3.96

92087

BUSHING-METER GEAR

92087-1058

$8.03

92145

SPRING,L=27.9

92145-1178

$4.26

92145A

SPRING

92145-1216

$3.95

92151

BOLT

92151-1451

$15.24

92152

COLLAR

92152-1091

Unavailable
