Description

Price

183

BOLT-UPSET-WS-SMALL

183G0822

$5.21

312

NUT-HEX,6MM,BLACK

312C0600

$3.57

320

NUT-CASTLE

320H1000

$7.88

550

PIN COTTER 2.0X15

550D2015

$1.04

550A

PIN-COTTER,2.5X18

550D2518

$0.59

32160A

FRAME-COMP

32160-1675

Unavailable

39111

ROD-TIE

39111-1090

$32.37

39112

RODEND-TIE

39112-1063

$92.76

39112B

RODEND-TIE

39112-1083

$90.56

39114B

SHAFT-COMP-STRG

39114-1089

Unavailable

59266

JOINT-BALL

59266-1105

$174.18

92015

NUT,LOCK,10MM

92015-1460

$6.52

92015A

NUT,LOCK,10MM

92015-1494

$6.22

92015B

NUT,LOCK,FLANGED,10MM

92015-1717

$9.91

92022

WASHER,10.5X20X1

92022-239

$3.92

92027

COLLAR,10X21.3X7

92027-1817

$15.14

92037

CLAMP,STEERING SHAFT

92037-1975

$69.53

92049

SEAL-OIL,SR7 25 34 7.8 NS

92049-1278

$7.29

92066

PLUG

92066-1220

$4.96

92150

BOLT

92150-1058

$7.29

92161

DAMPER

92161-1101

$14.17

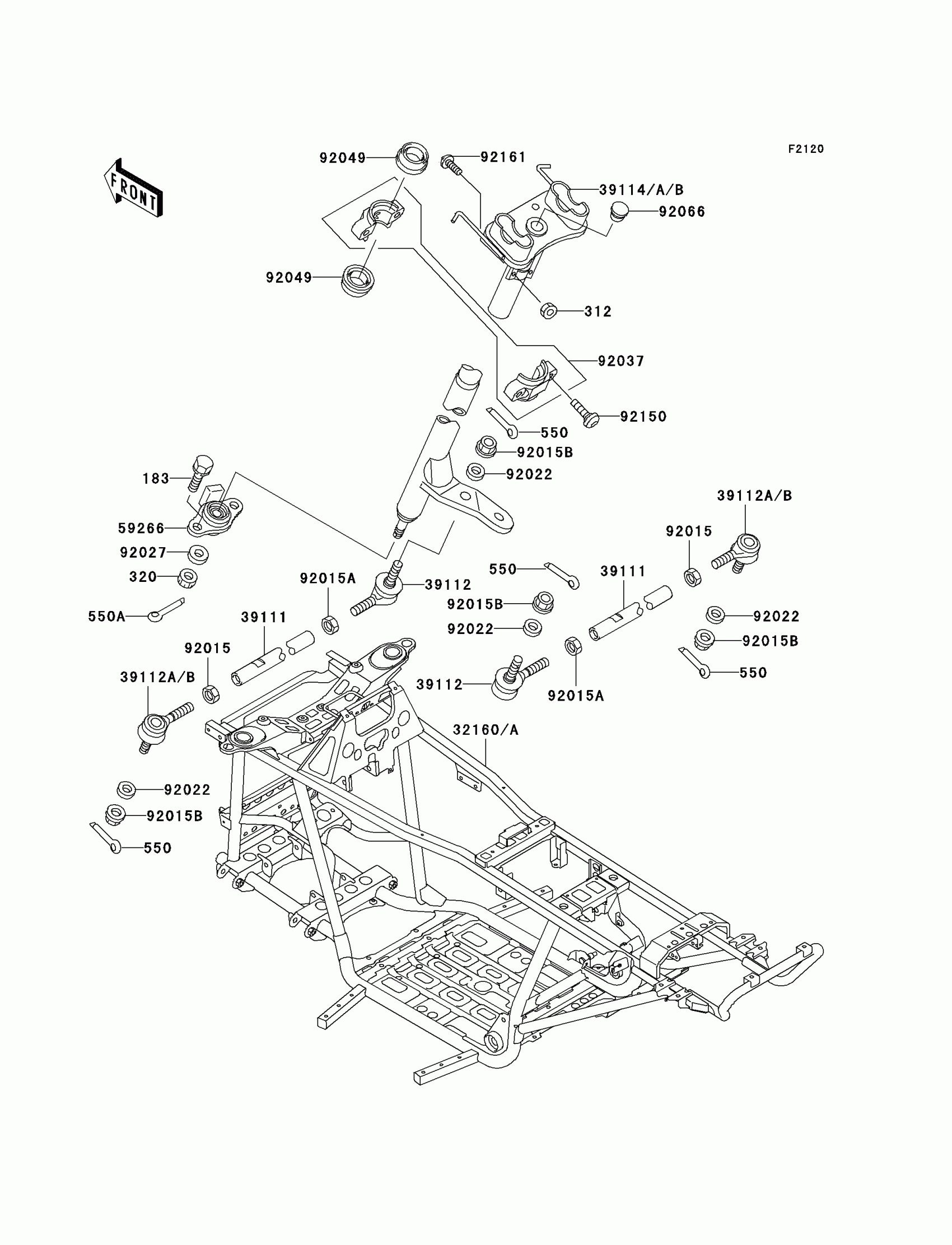

Kawasaki Prairie 300 Frame Diagram

BOLT-UPSET-WS-SMALL

NUT-HEX,6MM,BLACK

NUT-CASTLE

PIN COTTER 2.0X15

PIN-COTTER,2.5X18

FRAME-COMP

ROD-TIE

RODEND-TIE

RODEND-TIE

SHAFT-COMP-STRG

JOINT-BALL

NUT,LOCK,10MM

NUT,LOCK,10MM

NUT,LOCK,FLANGED,10MM

WASHER,10.5X20X1

COLLAR,10X21.3X7

CLAMP,STEERING SHAFT

SEAL-OIL,SR7 25 34 7.8 NS

PLUG

BOLT

DAMPER
