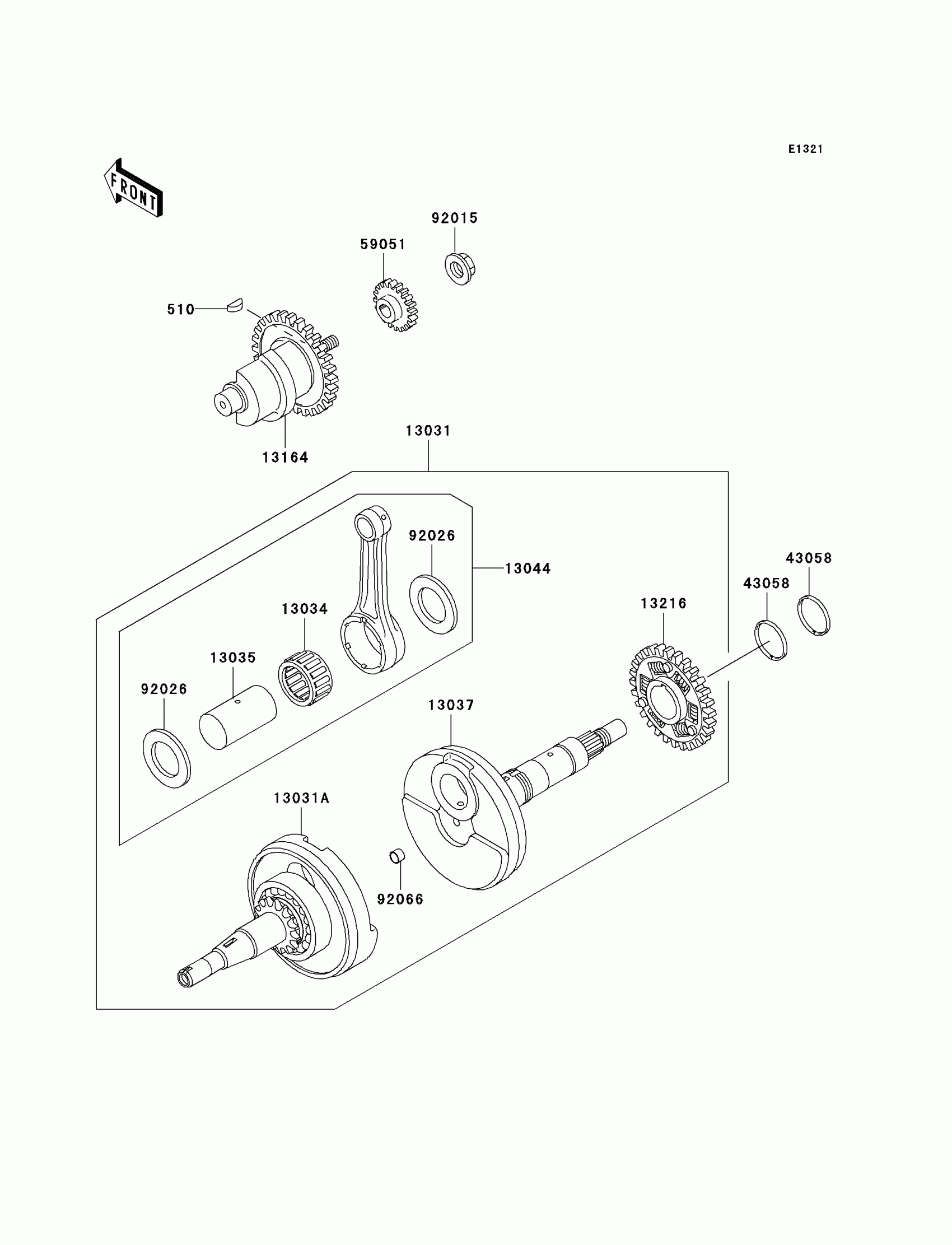

Kawasaki Prairie 300 Crankshaft Diagram

Description

Price

510

KEY-WOODRUFF

510A3100

$2.70

13031

CRANKSHAFT-COMP

13031-1440

Unavailable

13031A

CRANKSHAFT-COMP,LH

13031-1445

$411.90

13034

BEARING-BIG END,PK32X43X22.4

13034-1061

$47.92

13035

PIN-CRANK

13035-1067

$68.02

13037

CRANKSHAFT,RH

13037-1582

Unavailable

13044

SET-CONNECTING ROD

13044-5066

$305.98

13164

BALANCER-COMP

13164-1010

Unavailable

13216

GEAR-COMP,BALANCER

13216-1171

$147.39

43058

RING

43058-1091

Unavailable

59051

GEAR-SPUR,OIL PUMP

59051-1378

Unavailable

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92026

SPACER,32X51.5X1.2

92026-1232

$14.64

92066

PLUG,CRANKSHAFT

92066-1159

Unavailable
