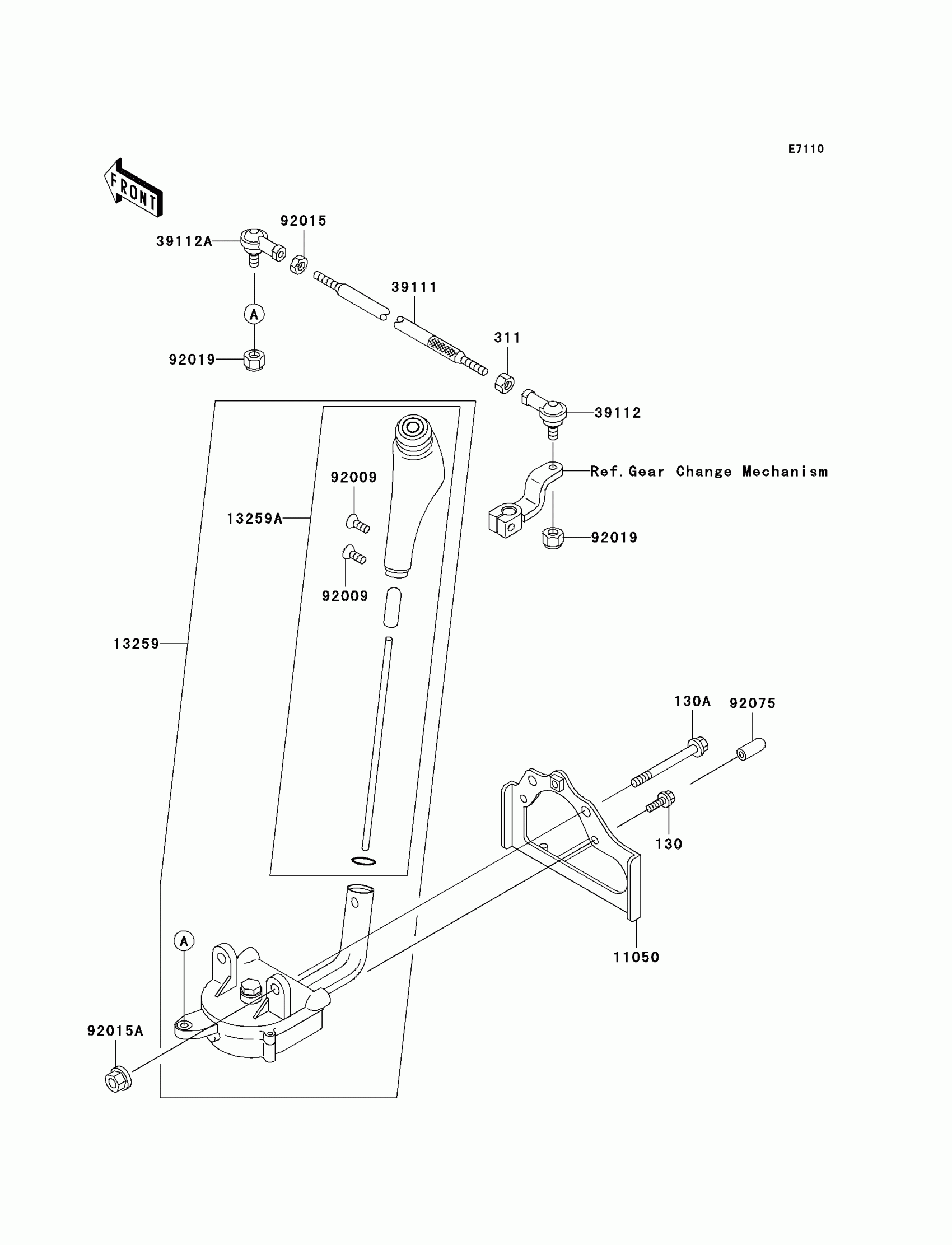

Kawasaki Prairie 300 Control Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

130A

BOLT-FLANGED,8X60

130J0860

$5.21

311

NUT-HEX

311J0600

$1.01

11050

BRACKET

11050-1700

Unavailable

13259

LEVER-ASSY-SHIFT CONTROL

13259-1010

$571.28

13259A

LEVER-ASSY-SHIFT CONTROL,KNOB

13259-1011

$170.63

39111

ROD-TIE

39111-1161

$23.77

39112

RODEND-TIE

39112-1006

$49.58

39112A

RODEND-TIE

39112-1070

$93.99

92009

SCREW,SHIFT CONTROL

92009-1885

$2.86

92015

NUT,LEFT HANDED,6MM

92015-1125

$4.31

92015A

NUT,LOCK,FLANGED,8MM

92015-1397

$4.31

92019

NUT,LOCK,6MM

92019-008

$4.26

92075

DAMPER

92075-1980

$5.33
