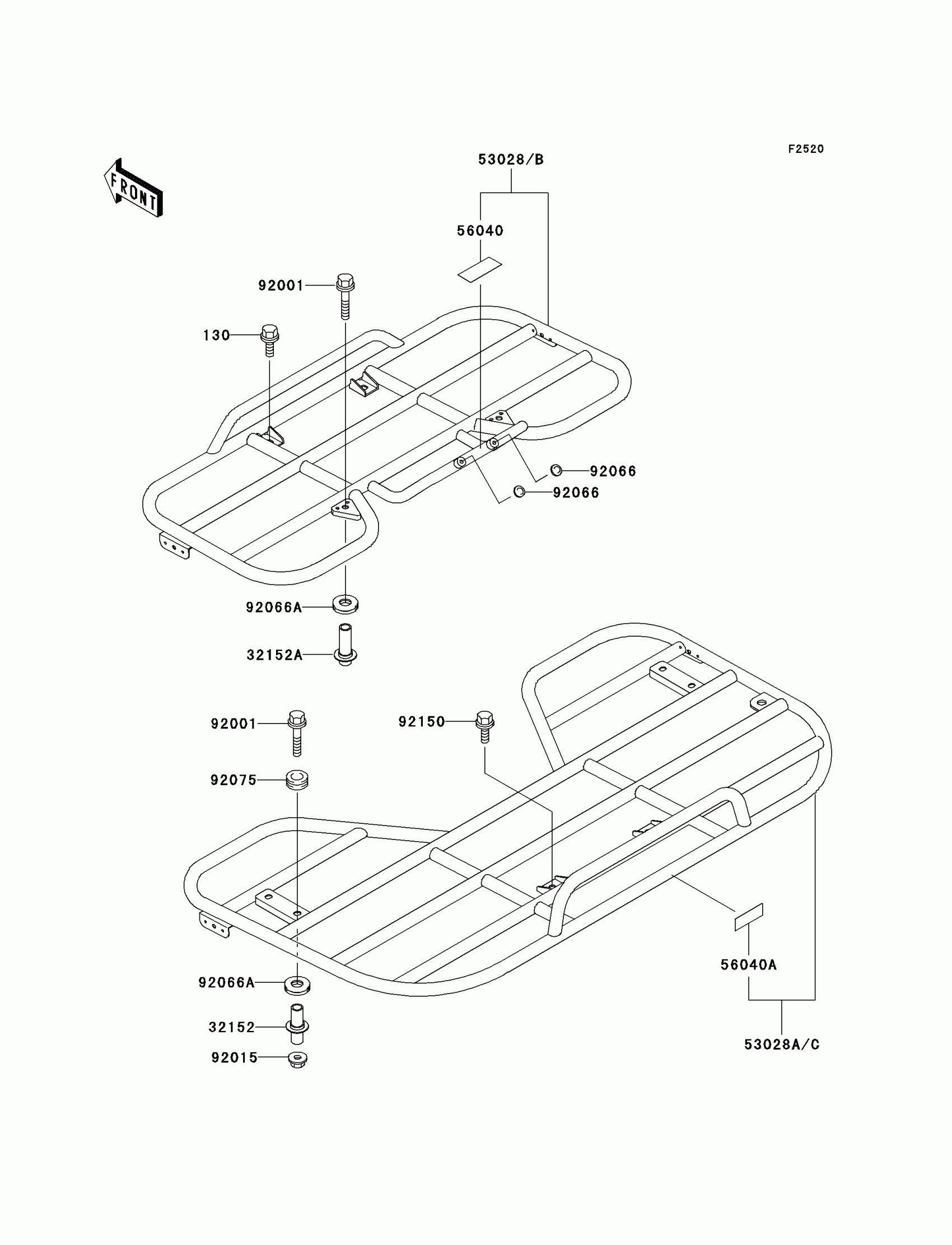

Kawasaki Prairie 300 Carrier(s) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

$0.67

32152

PIPE,REAR CARRIER

32152-1066

$11.56

32152A

PIPE,FRONT CARRIER

32152-1067

$12.97

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1321

$3.69

56040A

LABEL-WARNING,MAXIMUM LOAD

56040-1322

$3.69

92001

BOLT,FLANGED,8X75,BLA

92001-1642

$7.62

92015

NUT,FLANGED,LOCK,8MM

92015-1696

$4.67

92066

PLUG

92066-1216

$4.65

92066A

PLUG

92066-1438

$5.17

92075

DAMPER

92075-1086

Unavailable

92150

BOLT,8X12

92150-1780

$5.24

53028

CARRIER-ASSY,FR,P.C.GRAY

53028-1095-CQ

$147.77

53028A

CARRIER-ASSY,RR,P.C.GRAY

53028-1096-CQ

Unavailable

53028B

CARRIER-ASSY,FR,P.C.GRAY

53028-1099-CQ

Unavailable

53028C

CARRIER-ASSY,RR,P.C.GRAY

53028-1100-CQ

Unavailable
