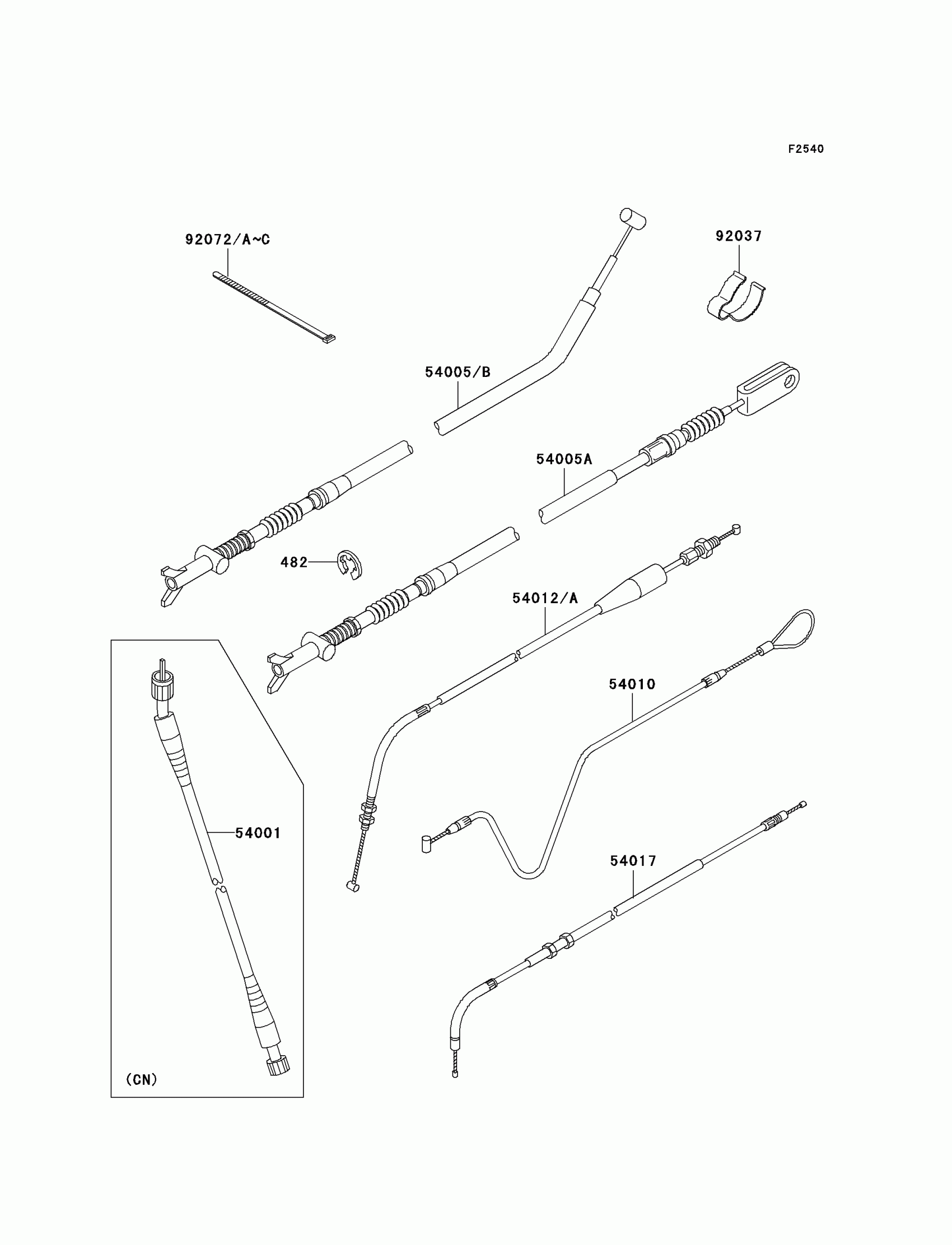

Kawasaki Prairie 300 Cables Diagram

Description

Price

482

CIRCLIP-TYPE-E,8MM

482K8000

$2.93

54005A

CABLE-BRAKE

54005-1186

$36.12

54005B

CABLE-BRAKE

54005-1206

$41.24

54010

CABLE,SEAT HOOK

54010-1105

$39.69

54012A

CABLE-THROTTLE

54012-1620

$34.52

54017

CABLE-STARTER

54017-1105

$12.05

92037

CLAMP,AIR VENT HOSE

92037-1092

$9.28

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=186

92072-056

$5.00

92072C

BAND,L=188

92072-1239

$1.73

54001

CABLE-SPEEDMETER

54001-1232

$30.76
