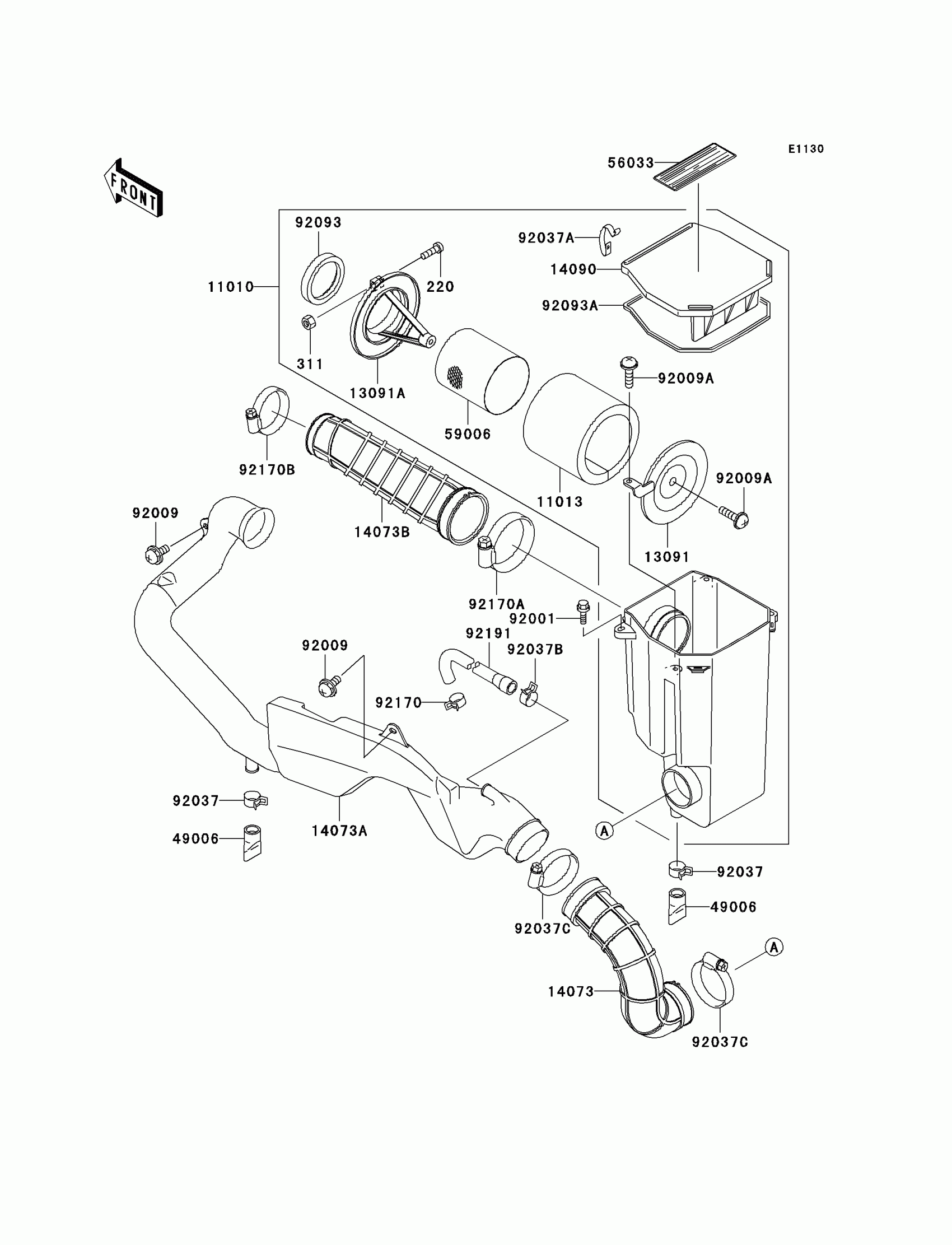

Kawasaki Prairie 300 Air Cleaner Diagram
#
Description
Price
220
SCREW PAN HEAD 5X16
220B0516
$2.06
311
NUT-HEX
311B0500
$0.47
11010
FILTER-ASSY-AIR
11010-1681
$302.24
11013
ELEMENT-AIR FILTER
11013-1255
$14.62
13091
HOLDER,ELEMENT
13091-1488
$19.96
13091A
HOLDER,AIR FILTER ELEMENT
13091-1565
$18.63
14073
DUCT
14073-1654
$60.94
14073A
DUCT
14073-1682
$31.20
14073B
DUCT
14073-1735
$40.99
14090
COVER,AIR FILTER
14090-1663
$41.07
49006
BOOT
49006-1292
$7.77
56033
LABEL-MANUAL,MAINTENANCE
56033-1079
$2.70
59006
ARRESTER-FLAME
59006-1052
$37.78
92001
BOLT,6X20
92001-1460
$3.92
92009
SCREW,6X16
92009-1276
$4.80
92009A
SCREW,6X16
92009-1890
$2.15
92037
CLAMP,HOSE CLIP
92037-1460
$10.81
92037A
CLAMP,AIR FILTER
92037-1783
$8.80
92037B
CLAMP
92037-1860
Unavailable
92037C
CLAMP
92037-3738
$6.89
92093
SEAL,DUST
92093-1322
$9.82
92093A
SEAL,FILTER CASE
92093-1404
$8.05
92170
CLAMP
92170-1491
$7.45
92170A
CLAMP
92170-1679
$6.63
92170B
CLAMP
92170-1764
$11.48
92191
TUBE
92191-1343
$11.38
