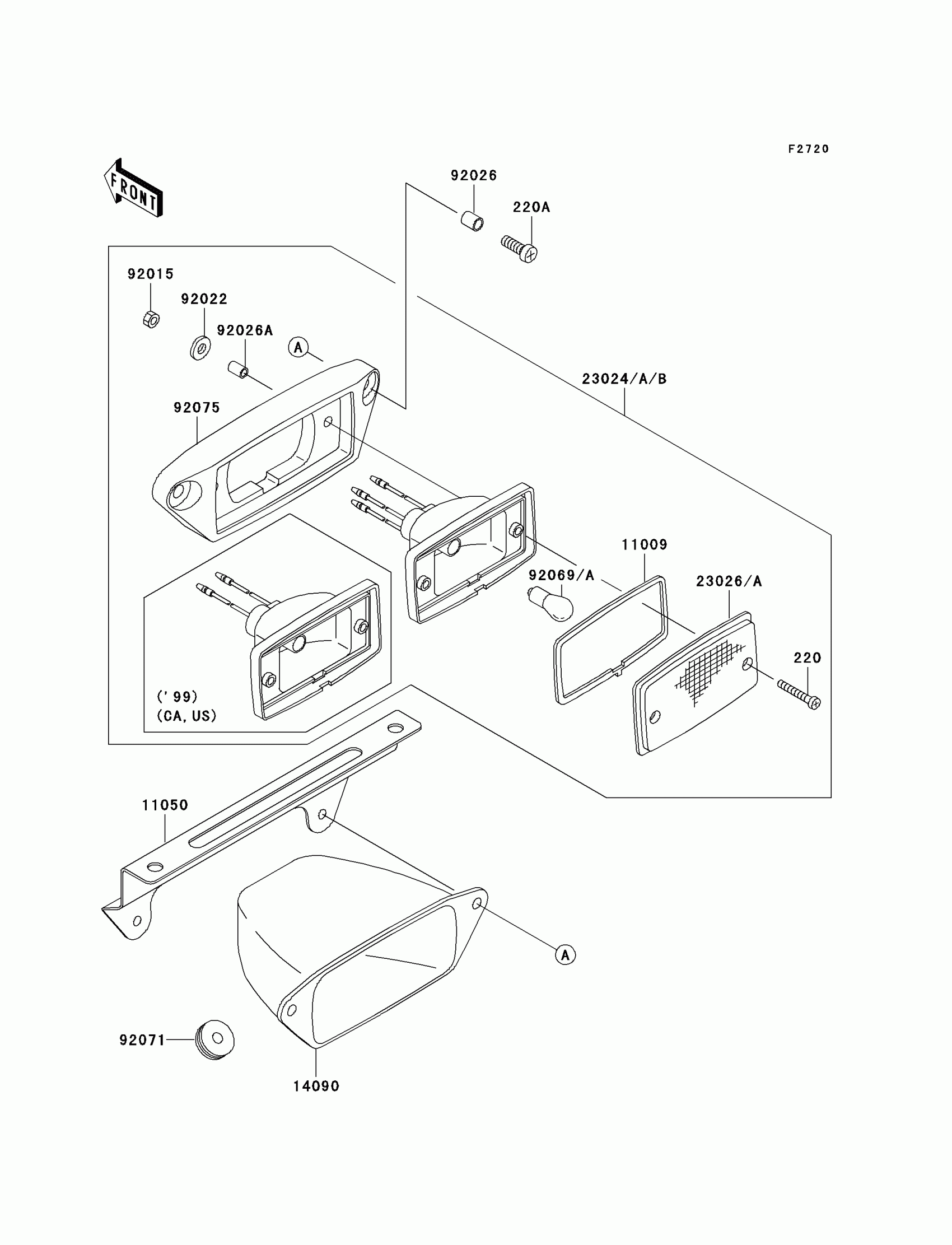

Kawasaki Prairie 300 4X4 Taillight(s) Diagram

Description

Price

220

SCREW-PAN-CROS

220C0430

$3.57

220A

SCREW-PAN-CROS, 6X20

220C0620

$1.47

11009

GASKET,TAIL LAMP

11009-4004

$7.61

11050

BRACKET,TAIL LAMP

11050-1718

$36.96

14090

COVER,TAIL LAMP

14090-1911

$6.01

23024B

LAMP-ASSY-TAIL

23024-1131

$136.19

23026

LENS,TAIL LAMP

23026-1239

$17.69

92015

NUT,4MM

92015-1550

$3.35

92022

WASHER,PLAIN,4MM

92022-1762

$3.35

92026

SPACER,6.3X8.3X10

92026-1260

$4.60

92026A

SPACER,4.5X6.5X10

92026-1261

$5.24

92069

BULB,12V 27/8W

92069-059

$8.12

92071

GROMMET,SENSOR LEAD

92071-1058

$5.73

92075

DAMPER,TAIL LAMP

92075-1782

$43.64
