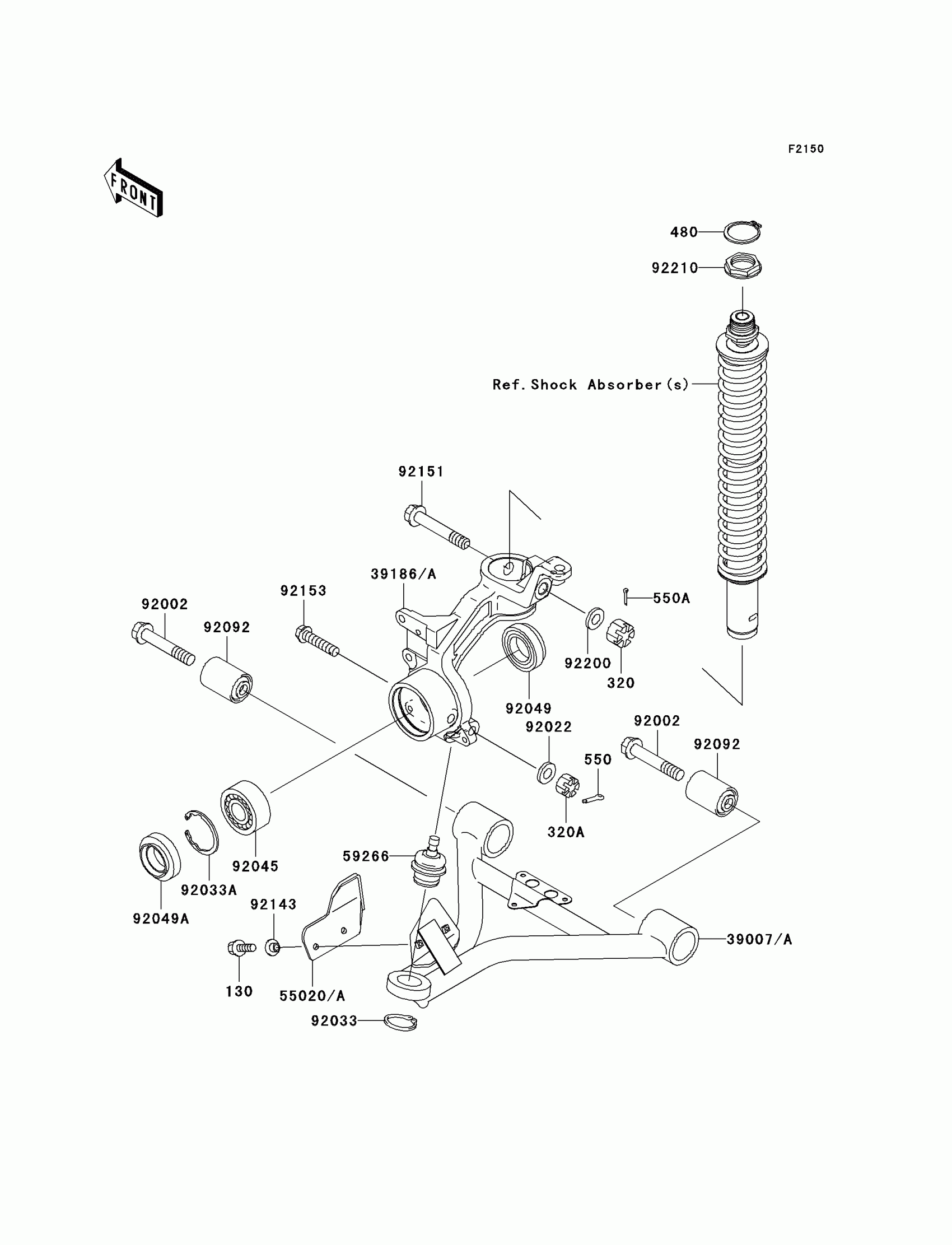

Kawasaki Prairie 300 4X4 Suspension(A1/A2) Diagram
#
Description
Price
130
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
320
NUT-CASTLE
320G1200
$3.47
320A
NUT-CASTLE
320H1000
$7.88
480
CIRCLIP-TYPE-C,32MM
480J3200
$1.77
550
PIN COTTER 2.0X15
550D2015
$1.04
550A
PIN-COTTER,3.0X25
550D3025
$0.58
39007
ARM-SUSP,FR,LWR,LH
39007-1275
$103.61
39007A
ARM-SUSP,FR,LWR,RH
39007-1276
$103.61
39186
KNUCKLE,FR,LH
39186-0008
$278.45
39186A
KNUCKLE,FR,RH
39186-0009
$252.90
55020
GUARD,LH
55020-1623
$16.73
55020A
GUARD,RH
55020-1624
$16.73
59266
JOINT-BALL
59266-1098
$106.71
92002
BOLT,FLANGED,12X67
92002-1861
$11.16
92022
WASHER,10.2X16X1
92022-1829
$4.31
92033
RING-SNAP,30MM
92033-1218
$8.12
92033A
RING-SNAP,55MM
92033-1274
$9.43
92045
BEARING-BALL,DAC3055C2RKCD3
92045-1222
$99.08
92049
SEAL-OIL,MT038N1
92049-1476
$14.60
92049A
SEAL-OIL,SDD04 38 55 8
92049-1477
$17.50
92092
BUSHING-RUBBER
92092-1076
$32.02
92143
COLLAR
92143-1331
$3.94
92151
BOLT,FLANGED,12X65.5
92151-1101
$13.29
92153
BOLT,FLANGED,10X44
92153-0579
$4.22
92200
WASHER,12.3X23X2.3
92200-1004
$4.69
92210
NUT,35MM
92210-1066
$19.42
