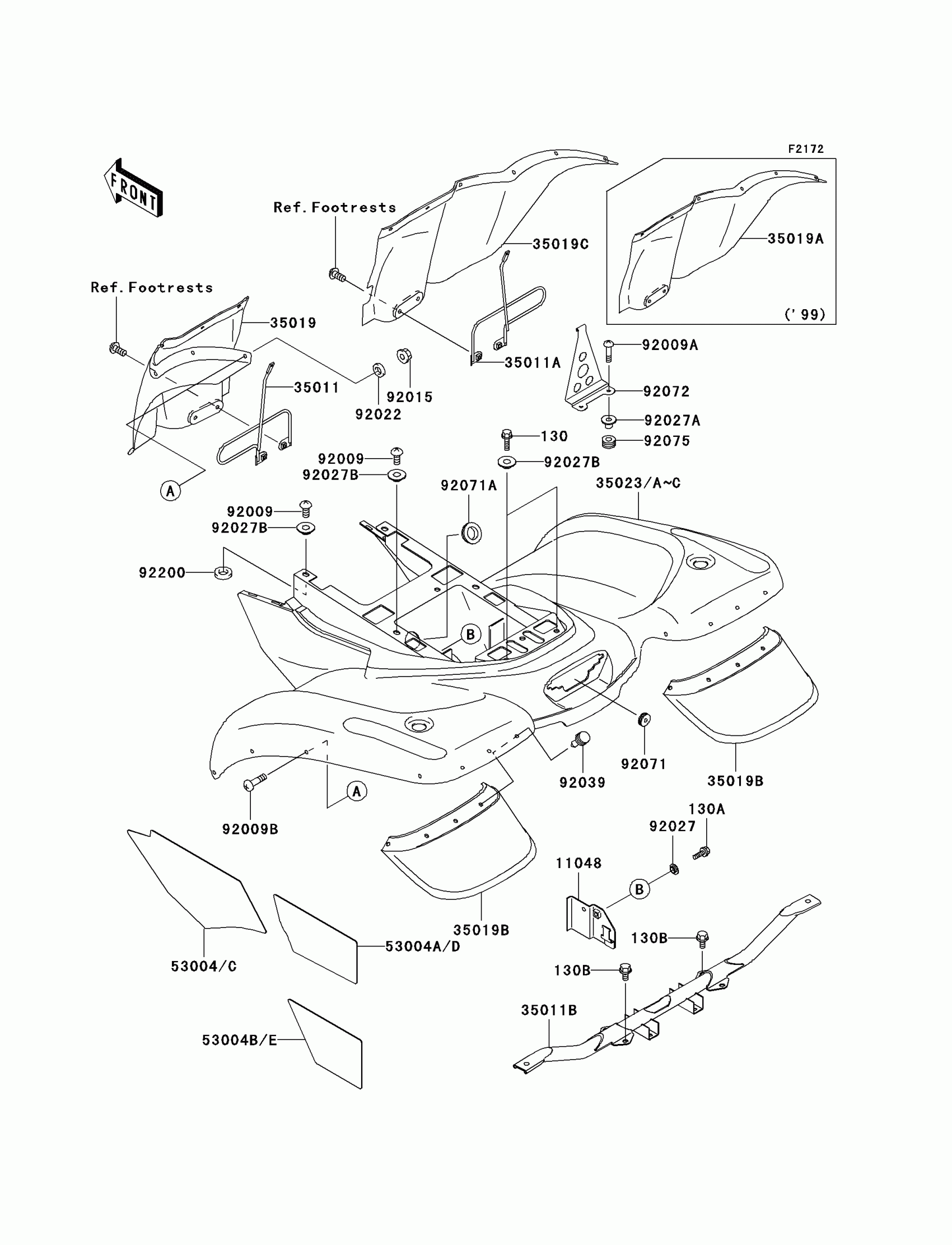

Kawasaki Prairie 300 4X4 Rear Fender(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X18

130C0618

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130B

BOLT-FLANGED,8X16

130J0816

Unavailable

11048

BRACKET,ELECTRIC

11048-1966

$55.37

35011

STAY,REAR FLAP,LH

35011-1759

Unavailable

35011A

STAY,REAR FLAP,RH

35011-1760

Unavailable

35011B

STAY,REAR FENDER

35011-1782

$65.92

35019

FLAP,RR,FR,LH,F.BLACK

35019-1334-6Z

$47.45

35019B

FLAP,RR,RR,F.BLACK

35019-1336-6Z

$21.17

35019C

FLAP,RR,FR,RH,F.BLACK

35019-1375-6Z

$47.45

35023B

FENDER-REAR,L.GREEN

35023-1579-6A

$245.61

35023C

FENDER-REAR,F.RED

35023-1579-6L

$250.73

53004C

MAT,REAR FENDER

53004-1149

Unavailable

53004D

MAT,REAR FENDER

53004-1150

Unavailable

53004E

MAT,REAR FENDER

53004-1151

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X25

92009-1465

$2.99

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92027

COLLAR,L=3.5

92027-1018

$3.98

92027A

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92027B

COLLAR,L=4.7

92027-1964

$5.61

92039

RIVET

92039-1229

$0.80

92071

GROMMET,SENSOR LEAD

92071-1058

$5.02

92071A

GROMMET

92071-1237

$7.73

92072

BAND

92072-1361

$8.84

92075

DAMPER,CASE

92075-222

$5.61

92200

WASHER,8.5X20X2.3

92200-1055

$3.56
