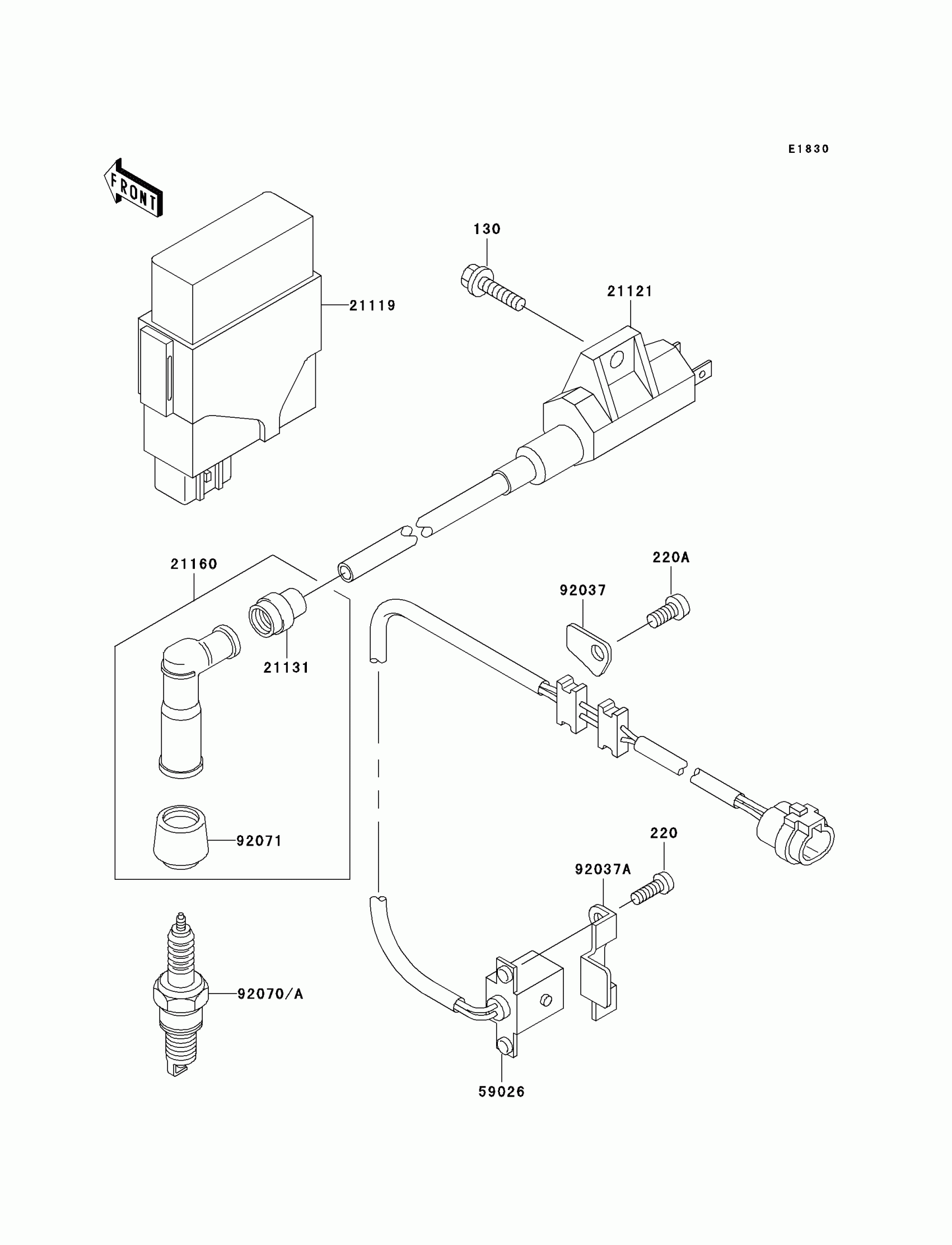

Kawasaki Prairie 300 4X4 Ignition System Diagram

Description

Price

130

BOLT-FLANGED

130D0616

$0.55

220

SCREW-PAN-CROS

220B0514

$4.04

220A

SCREW PAN HEAD 6X12

220B0612

Unavailable

21119

IGNITER

21119-1517

$615.82

21121

COIL-IGNITION

21121-1160

$156.27

21131

GROMMET,HIGH TENSION

21131-005

$6.16

21160

CAP-ASSY-PLUG

21160-1089

$35.79

59026

COIL-PULSING

59026-1146

$124.39

92037

CLAMP,WIRING HARNESS

92037-1656

$4.38

92037A

CLAMP

92037-1987

$8.76

92070A

PLUG-SPARK,DR8EA(NGK)

92070-1199

$3.62

92071

GROMMET,PLUG CAP

92071-1184

$6.16
