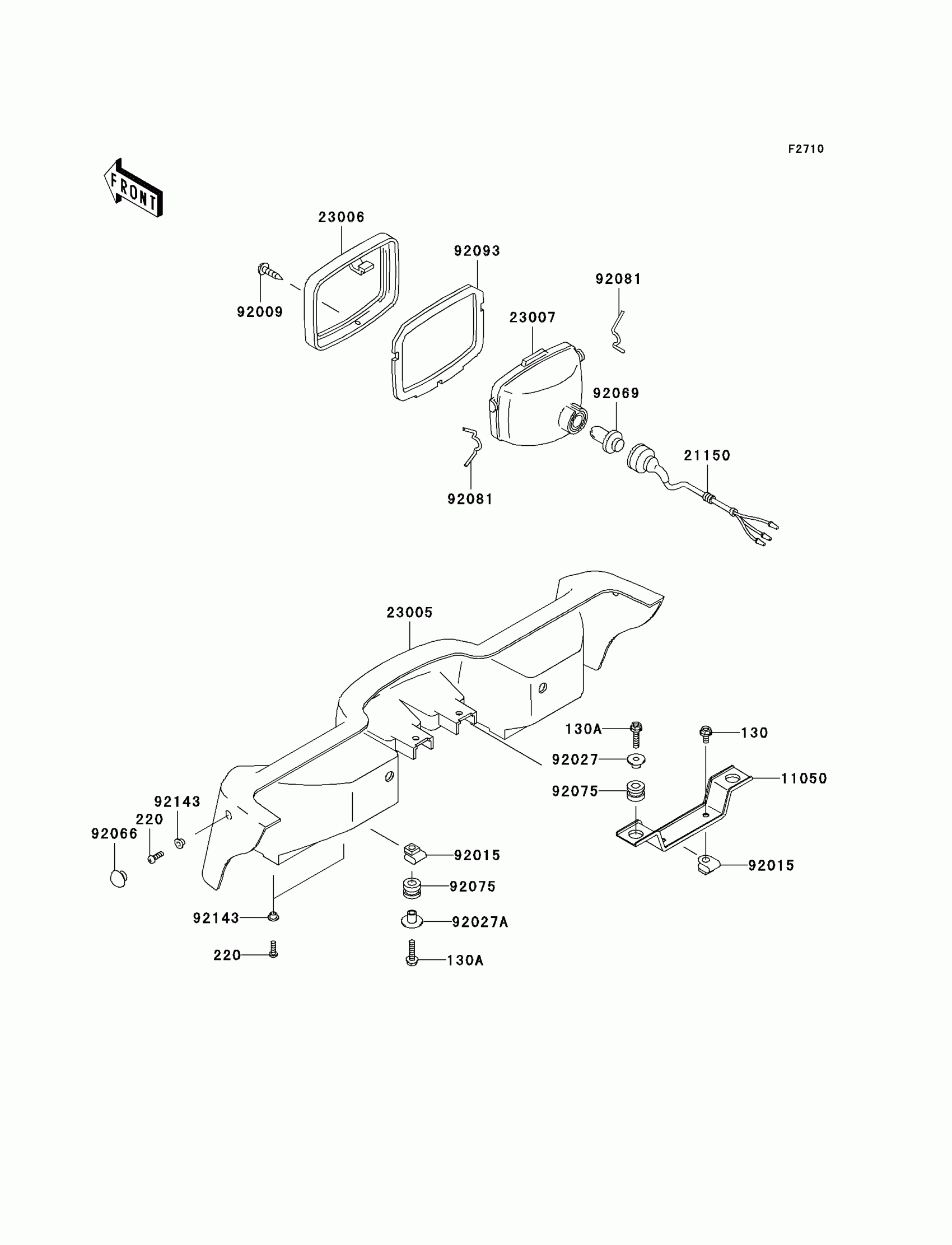

Kawasaki Prairie 300 4X4 Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

130A

BOLT-FLANGED,6X25

130J0625

$2.62

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

$1.71

11050

BRACKET,HEAD LAMP COVER

11050-1717

$17.04

21150

CORD-ASSY,HEAD LAMP

21150-1060

$72.63

23005

BODY-COMP-HEAD LAMP,F.BLACK

23005-1167-6Z

$106.85

23006

RIM-LAMP

23006-1073

$59.00

23007

LENS-COMP,HEAD LAMP

23007-1274

$47.74

92009

SCREW,TAPPING,4X30

92009-1139

$4.67

92015

NUT,CLIP,6MM

92015-1904

$6.57

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92027A

COLLAR,L=16.1

92027-1847

$6.22

92066

PLUG

92066-1485

$2.44

92069

BULB,12V 30/30W

92069-1080

$30.59

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,LAMP RIM

92081-1334

$5.40

92093

SEAL,HEAD LAMP

92093-1261

$14.87

92143

COLLAR

92143-1234

$4.31
