Partiron

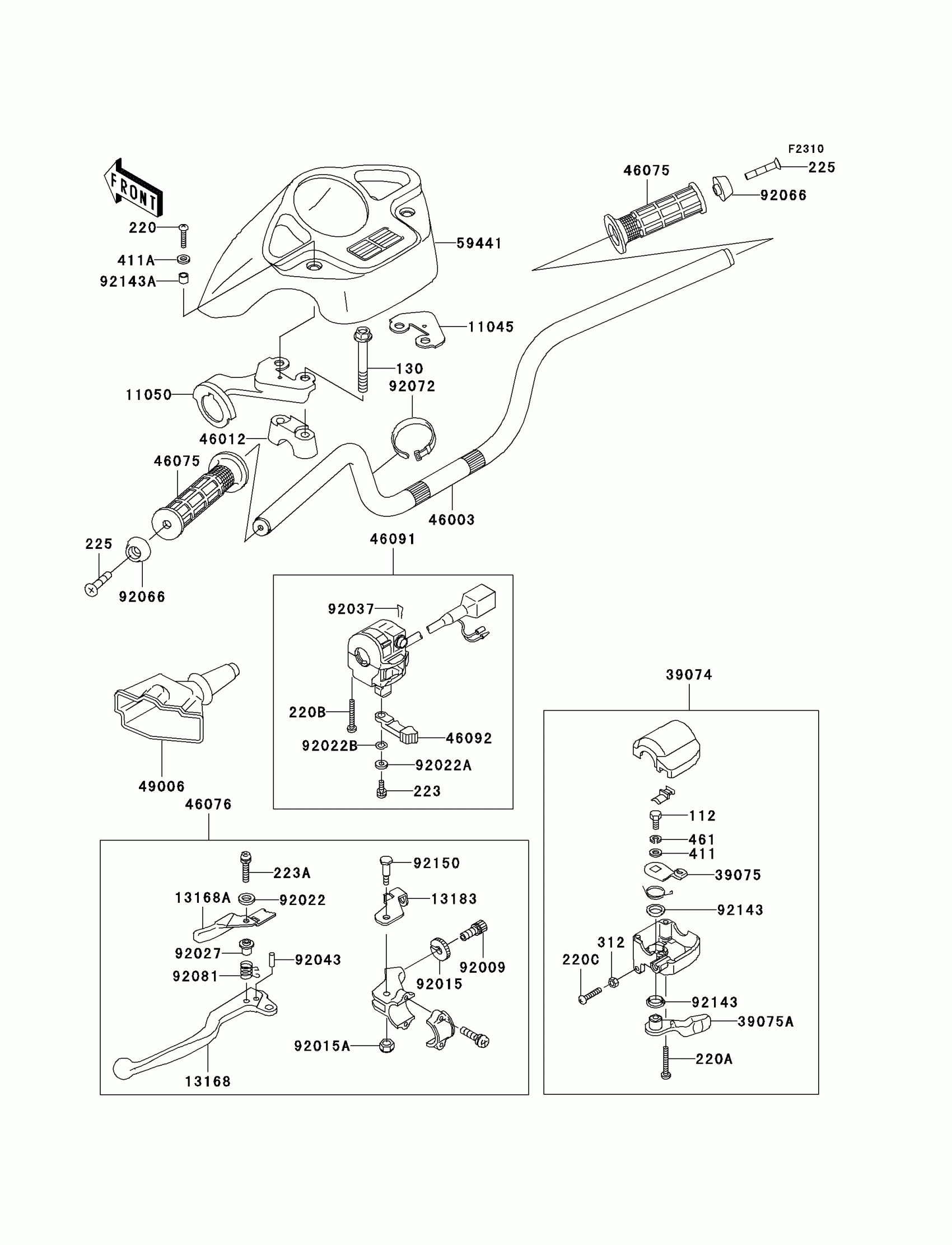

Kawasaki Prairie 300 4X4 Handlebar(A1) Diagram

#

Description
Price

112

BOLT-UPSET

112D0614

$0.49

130

BOLT-FLANGED,8X60

130P0860

$1.74

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.69

11050

BRACKET,HANDLE COVER,LH

11050-1727

$17.55

13168

LEVER,LH

13168-1449

$41.68

13168A

LEVER,LOCK

13168-1450

$29.01

13183

PLATE,LOCK

13183-1609

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-1055

$79.09

39075

LEVER-THROTTLE,ARM

39075-1054

$11.51

39075A

LEVER-THROTTLE

39075-1059

$33.25

46003

HANDLE

46003-1452

$90.09

46012

HOLDER-HANDLE

46012-1168

$16.33

46075

GRIP

46075-1056

$25.83

46076

LEVER-ASSY-GRIP,LH

46076-1178

$52.54

46091

HOUSING-ASSY-CONTROL,LH

46091-1726

$228.81

46092

LEVER-GRIP,CHOKE

46092-1205

$5.47

49006

BOOT,CLUTCH LEVER

49006-1057

$21.09

59441

COVER-HANDLE,F.BLACK

59441-1135-6Z

$39.13

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$16.33

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92015A

NUT

92015-1829

$4.26

92022

WASHER,4MM

92022-1647

$4.21

92022A

WASHER,5MM

92022-1837

$3.35

92022B

WASHER,WAVE,5MM

92022-1838

$3.35

92027

COLLAR,RETURN SPRING

92027-1336

$13.68

92037

CLAMP,CLIP

92037-1836

$5.33

92043

PIN,SPRING,3X16

92043-1268

$10.28

92066

PLUG,HANDLE

92066-1191

Unavailable

92072

BAND,L=149

92072-031

$5.00

92081

SPRING,LOCK RETURN

92081-1358

$5.46

92143

COLLAR

92143-1138

$3.56

92143A

COLLAR,5.6X8X7

92143-1336

$1.24

92150

BOLT

92150-1420

Unavailable

220

SCREW-PAN-CROS,4X20

220C0420

$0.94

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$2.06

220C

SCREW-PAN HEAD,6X30

220C0630

$1.89

223

SCREW-PAN-WS-CROS,4X20

223D0420

$4.42

223A

SCREW-PAN-WS-CROS

223C0520

$1.53

225

SCREW-PAN-WSP-CROS,6X20

225C0620

$3.84

312

NUT-HEX,6MM,BLACK

312C0600

$3.57

411

WASHER-PLAIN,6MM

411E0600

$1.31

411A

WASHER-PLAIN,5MM,BLACK

411F0500

$0.83

461

WASHER-SPRING

461L0600

$0.71
