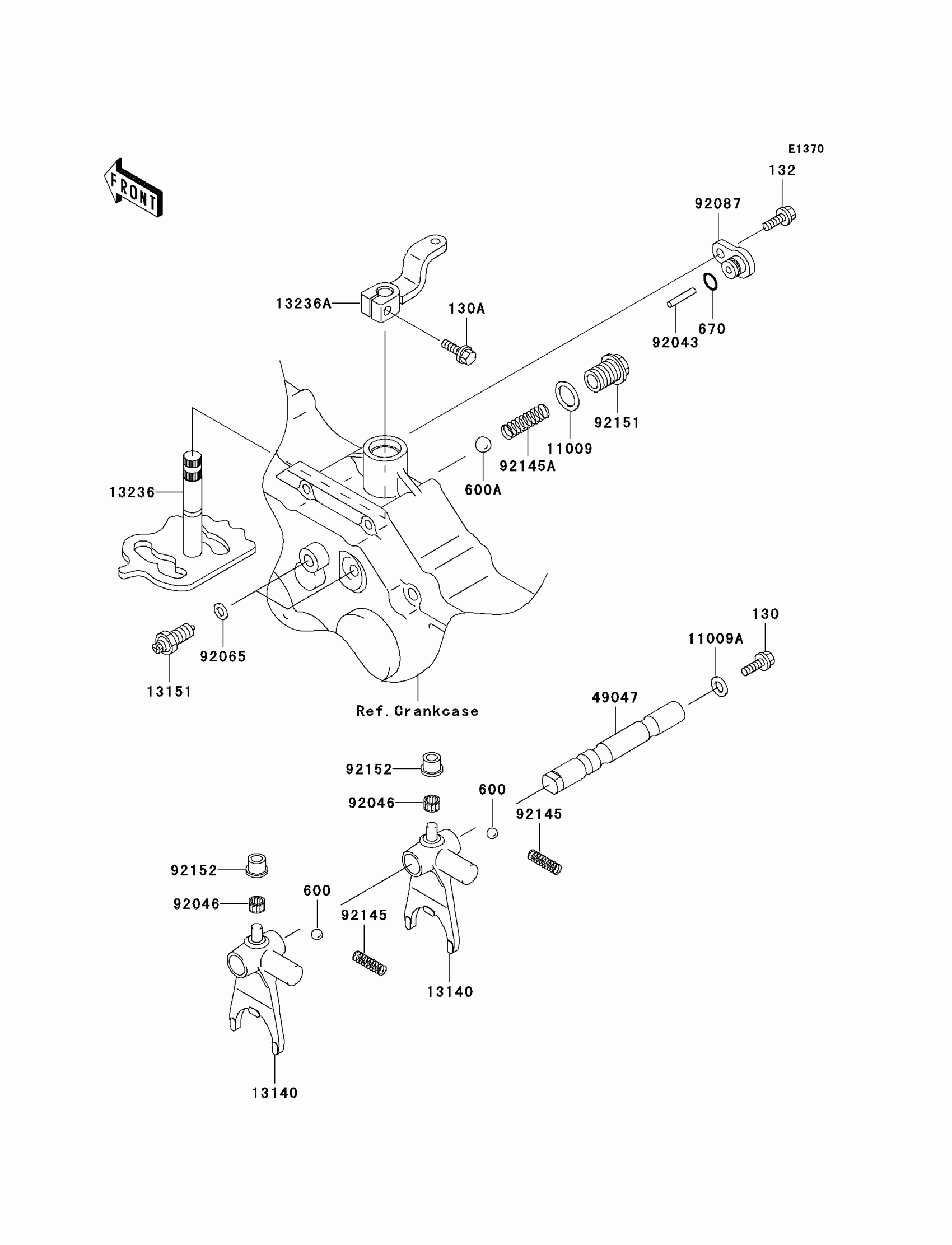

Kawasaki Prairie 300 4X4 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X18

130G0618

Unavailable

130A

BOLT-FLANGED,6X20

130P0620

$1.22

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

600

BALL-STEEL,11/32"

600A1100

$0.60

600A

BALL-STEEL,13/32"

600A1300

$0.78

670

O RING,10MM

670D1510

$3.57

11009

GASKET,15.5X22X1

11009-1008

$2.75

11009A

GASKET,6.5X12X1.0

11009-1568

$4.14

13140

FORK-SHIFT

13140-1277

$112.57

13151

SWITCH-COMP,NEUTRAL

13151-1069

$22.16

13236

LEVER-COMP

13236-1325

$75.00

13236A

LEVER-COMP,FORWARD/REVERSE

13236-1327

Unavailable

49047

ROD-SHIFT

49047-1099

Unavailable

92043

PIN,4X34.8

92043-1579

$2.03

92046

BEARING-NEEDLE

92046-1262

$7.42

92065

GASKET,10.5X16X1

92065-058

$3.03

92087

BUSHING-METER GEAR

92087-1058

$7.88

92145

SPRING,L=27.9

92145-1178

$3.90

92145A

SPRING

92145-1216

$3.66

92151

BOLT

92151-1451

$14.44

92152

COLLAR

92152-1091

Unavailable
