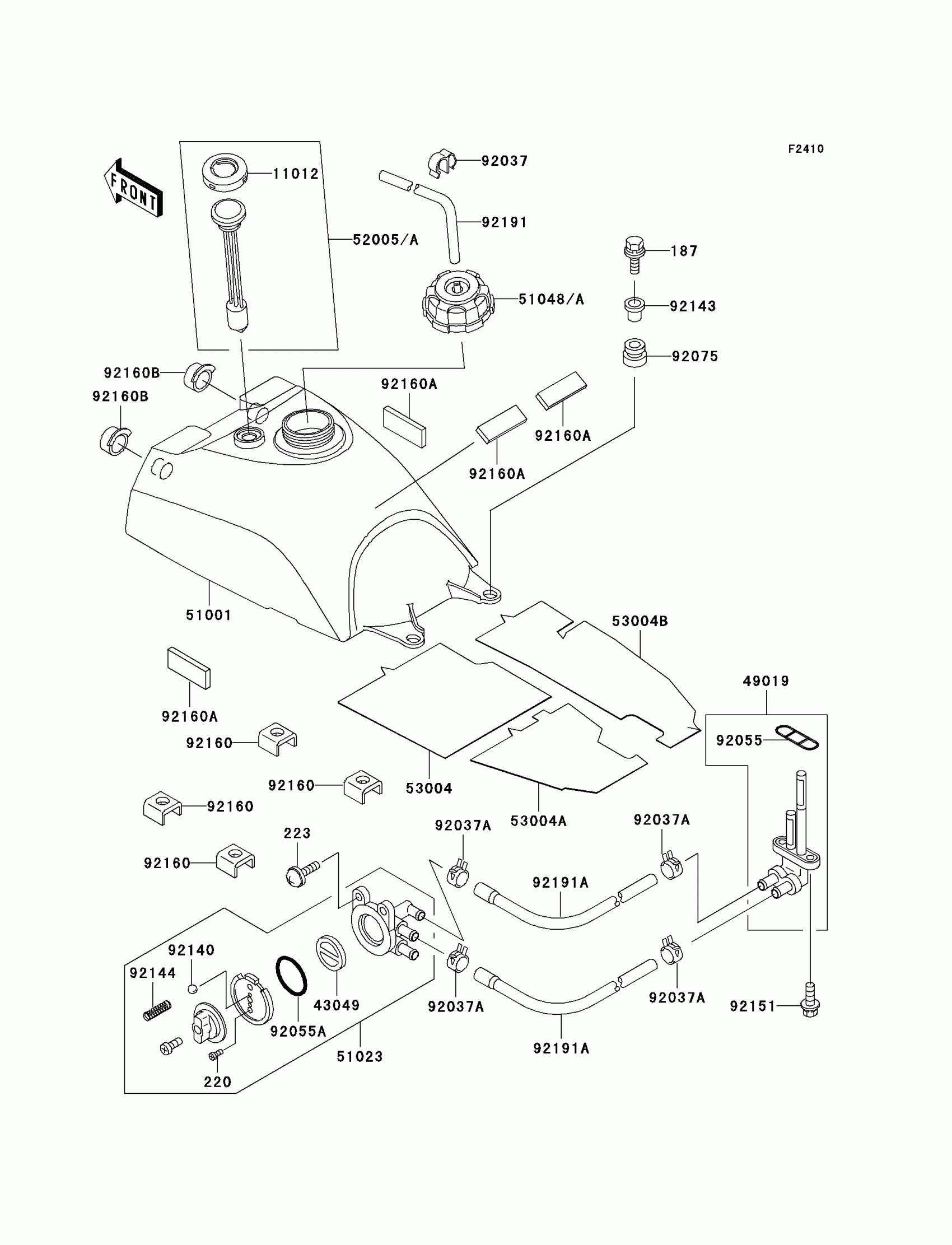

Kawasaki Prairie 300 4X4 Fuel Tank Diagram

#

Description
Price

187

BOLT-UPSET-WSP,6X35

187G0635

$1.18

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

223

SCREW-PAN-WS-CROS

223C0610

$4.12

11012

CAP,FUEL GAUGE

11012-1627

$17.07

43049

PACKING,TAP VALVE

43049-1066

$7.26

49019

FILTER-FUEL

49019-1084

$24.22

51001

TANK-COMP-FUEL

51001-1542

$272.39

51023

TAP-ASSY,FUEL

51023-1247

$141.02

51048A

CAP-ASSY-TANK,FUEL

51048-1133

$63.66

52005A

GAUGE,FUEL

52005-1131

Unavailable

53004

MAT,FUEL TANK,LH

53004-1125

Unavailable

53004A

MAT,FUEL TANK,CNT,RR

53004-1126

Unavailable

53004B

MAT,FUEL TANK,RH

53004-1127

Unavailable

92037

CLAMP

92037-1458

$6.52

92037A

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92075

DAMPER

92075-1787

$6.57

92140

BALL,STAINLESS,5/32"

92140-1051

$4.74

92143

COLLAR,L=19.6

92143-1100

$7.79

92144

SPRING,FUEL TAP KNOB

92144-1212

$4.35

92151

BOLT,6X14

92151-1198

$4.38

92160

DAMPER

92160-1773

$3.74

92160A

DAMPER

92160-1834

$5.78

92160B

DAMPER

92160-1909

$16.01

92191

TUBE,5X9.4X450

92191-1107

Unavailable

92191A

TUBE

92191-1247

$13.35
