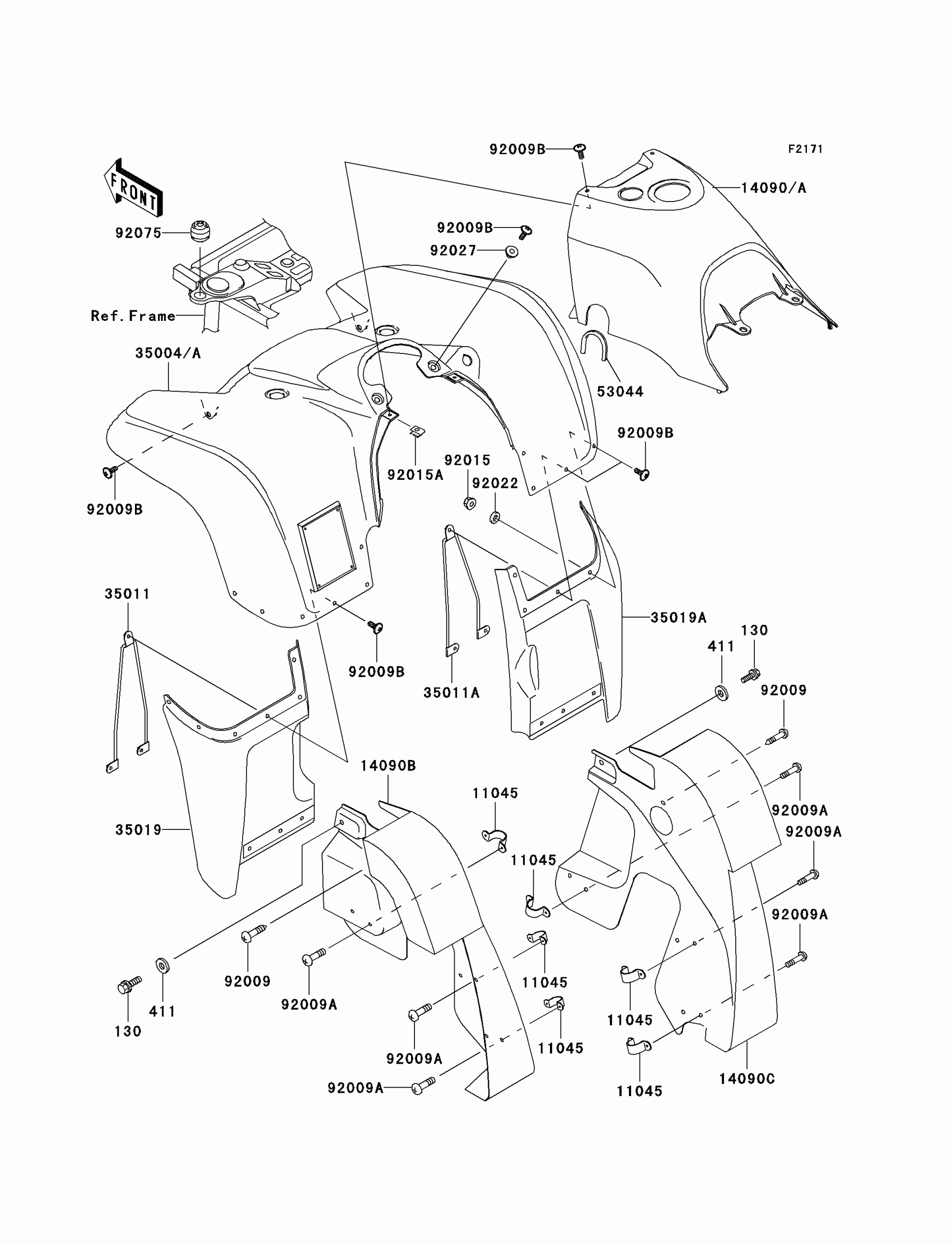

Kawasaki Prairie 300 4X4 Front Fender(s) Diagram

Description

Price

130

BOLT-FLANGED

130C0814

Unavailable

411

WASHER PLAIN

411F0800

$1.66

11045

BRACKET,FENDER

11045-1882

$7.69

14090

COVER,FUEL TANK,H.GREEN

14090-1666-6A

$35.01

14090A

COVER,FUEL TANK,F.RED

14090-1666-6L

$35.01

14090B

COVER,FRONT INNER FLAP,LH

14090-1933

$31.70

14090C

COVER,FRONT INNER FLAP,RH

14090-1934

$31.70

35004

FENDER-FRONT,H.GREEN

35004-1378-6A

$323.32

35004A

FENDER-FRONT,F.RED

35004-1378-6L

$308.69

35011

STAY,FRONT FLAP,LH

35011-1761

$30.25

35011A

STAY,FRONT FLAP,RH

35011-1784

$24.62

35019

FLAP,FR,LH,F.BLACK

35019-7501-6Z

$25.17

35019A

FLAP,FR,RH,F.BLACK

35019-7502-6Z

$25.17

53044

TRIM,L=150

53044-1303

$4.38

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,TAPPING,5X10

92009-1332

$3.92

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92027

COLLAR,L=4.7

92027-1964

$7.34

92075

DAMPER

92075-1744

$8.50
