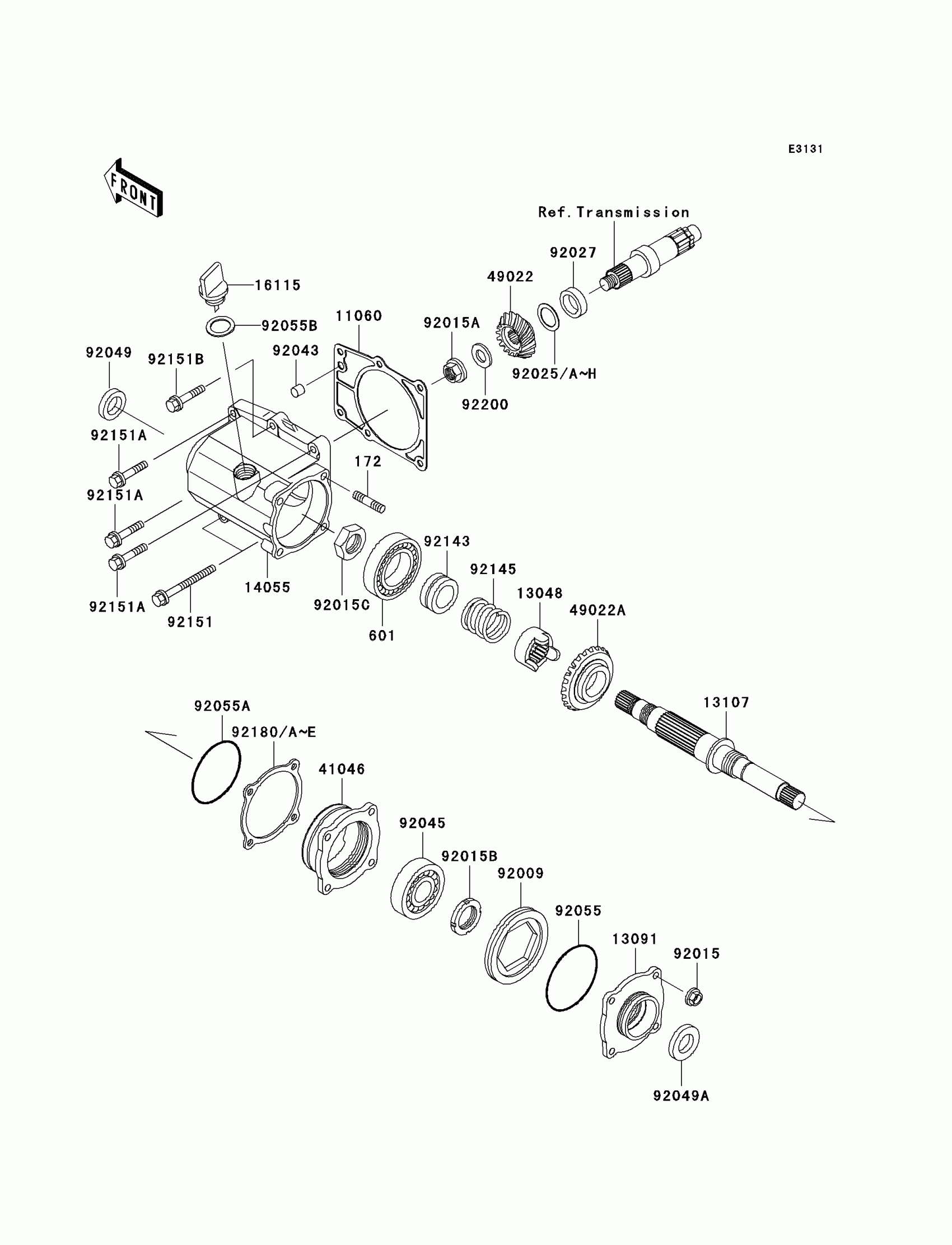

Kawasaki Prairie 300 4X4 Front Bevel Gear Diagram
#
11060
GASKET,GEAR CASE
11060-1728
$9.86
13048
CAM-DAMPER
13048-1080
$43.93
13091
HOLDER
13091-1950
$68.86
13107
SHAFT
13107-1388
$174.41
14055
CASE-GEAR
14055-1127
$204.20
16115
CAP-OIL FILLER
16115-1065
$16.75
41046
HOUSING-BEARING
41046-1094
$171.09
49022
GEAR-BEVEL,14T
49022-1151
$175.42
49022A
GEAR-BEVEL,20T
49022-1180
$233.65
92009
SCREW-SET-SOCKET,75X10
92009-1667
$88.39
92015
NUT,8MM
92015-1402
$4.69
92015A
NUT,16MM
92015-1581
$19.64
92015B
NUT,30MM
92015-1858
$32.95
92015C
NUT,26MM
92015-1990
$15.60
92025
SHIM,25.3X36X0.15
92025-1688
Unavailable
92025A
SHIM,25.3X36X0.50
92025-1689
Unavailable
92025B
SHIM,25.3X36X0.60
92025-1690
Unavailable
92025C
SHIM,25.3X36X0.70
92025-1691
Unavailable
92025D
SHIM,25.3X36X0.80
92025-1692
Unavailable
92025E
SHIM,25.3X36X0.90
92025-1693
Unavailable
92025F
SHIM,25.3X36X1.00
92025-1694
Unavailable
92025G
SHIM,25.3X36X1.10
92025-1695
Unavailable
92025H
SHIM,25.3X36X1.20
92025-1696
Unavailable
92027
COLLAR,25.3X36X10
92027-1968
$24.11
92043
PIN,8.2X10X14
92043-1264
$0.64
92045
BEARING-BALL,6306SH2
92045-1190
$40.80
92049
SEAL-OIL,AE1252E0
92049-1395
$11.07
92049A
SEAL-OIL,AE1265E0
92049-1400
$11.07
92055
"O" RING
92055-081
$17.91
92055A
RING-O,79.5MM
92055-1230
$8.12
92055B
RING-O,20X3
92055-2185
$1.03
92143
COLLAR
92143-1900
$37.77
92145
SPRING,BEVEL
92145-1209
$30.87
92151
BOLT,8X100
92151-1431
Unavailable
92151A
BOLT,8X35
92151-1432
$3.18
92151B
BOLT,8X32
92151-1446
$3.49
92180
SHIM,T=1.00
92180-1126
Unavailable
92180A
SHIM,T=0.10
92180-1127
Unavailable
92180B
SHIM,T=0.15
92180-1128
Unavailable
92180C
SHIM,T=0.50
92180-1129
Unavailable
172
BOLT-STUD,8X30
172G0830
$2.56
601
BEARING-BALL
601A6209
$46.70
92180D
SHIM,T=0.80
92180-1130
Unavailable
92180E
SHIM,T=1.20
92180-1131
Unavailable
92200
WASHER,16.3X31X3.2
92200-1104
$6.16
