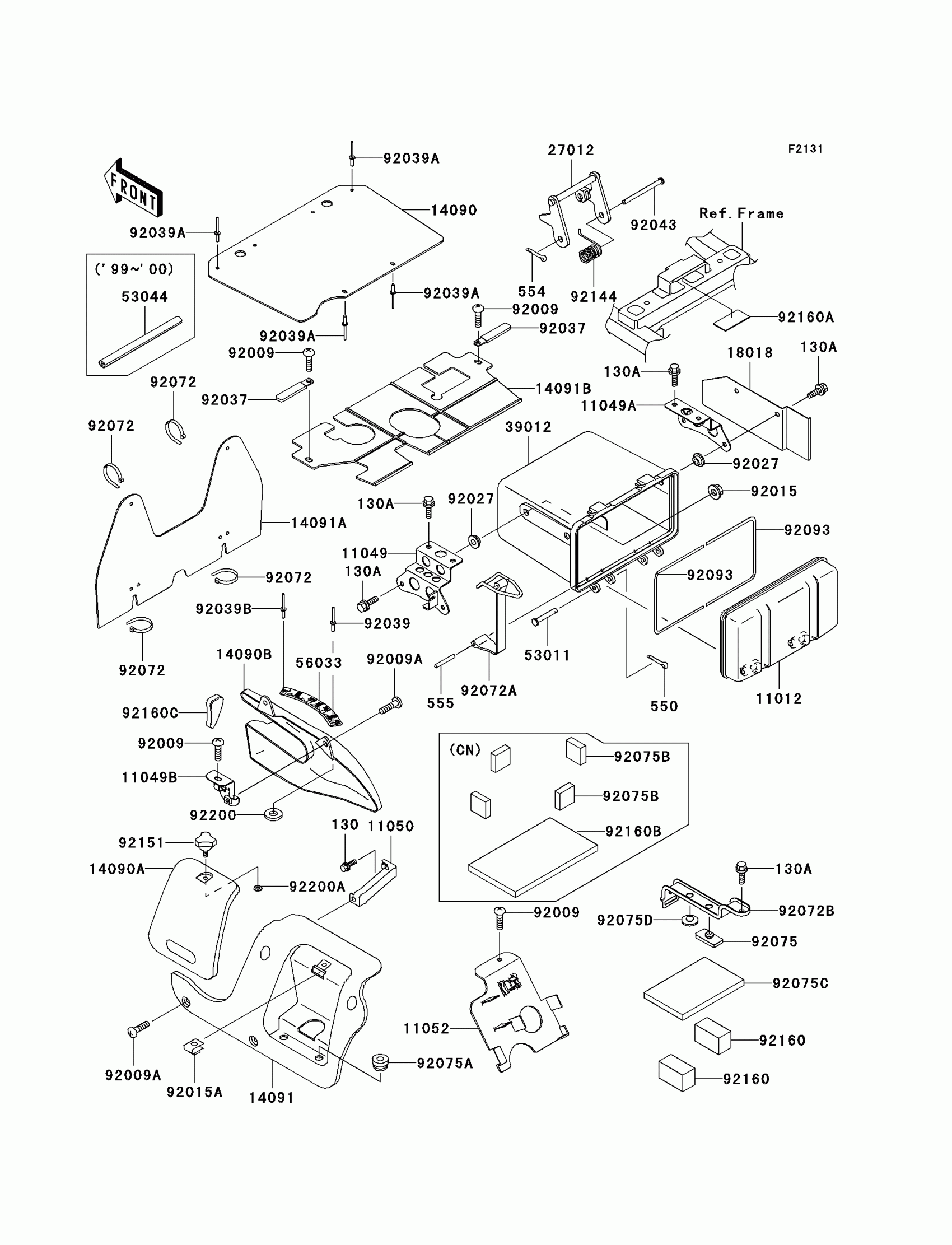

Kawasaki Prairie 300 4X4 Frame Fittings Diagram

#

Description
Price

11012

CAP,STORAGE CASE

11012-1951

$6.76

11049

BRACKET,STORAGE CASE,LH

11049-1733

$14.54

11049A

BRACKET,STORAGE CASE,RH

11049-1734

$13.44

11049B

BRACKET

11049-1738

$4.95

11050

BRACKET,ENGINE COVER,LH

11050-1726

$16.92

11052

BRACKET,ELECTRIC BASE

11052-7529

$7.90

14090

COVER,FRONT COVER

14090-1723

$17.61

14090A

COVER,ENGINE COVER,LH,F.BLACK

14090-1910-6Z

Unavailable

14090B

COVER,SHIFT LEVER

14090-1973

$10.24

14091

COVER,ENGINE,LH,F.BLACK

14091-1073-6Z

$16.63

14091A

COVER

14091-1083

$21.78

14091B

COVER,REAR COVER

14091-1379

Unavailable

18018

PLATE-HEAT GUARD

18018-1127

$12.92

27012

HOOK,SEAT

27012-1381

$36.50

39012

CASE-STORAGE

39012-1059

Unavailable

53011

PIN, DUAL SEAT PIVOT

53011-006

$4.61

56033

LABEL-MANUAL,SHIFT PATTERN

56033-1142

Unavailable

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,CLAMP,6MM

92015-1678

$4.18

92027

COLLAR,L=5.6

92027-1933

$4.37

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92039

RIVET

92039-1244

$1.43

92039A

RIVET

92039-1260

$1.95

92039B

RIVET,3.2X8

92039-3763

$1.33

92043

PIN,6X77

92043-1367

$7.64

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,STORAGE CASE

92072-1337

$27.26

92072B

BAND,BATTERY

92072-7501

$5.41

92075

DAMPER

92075-1054

$3.81

92075A

DAMPER

92075-1067

$3.57

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

550

PIN-COTTER,2.0X12

550D2012

$0.89

554

PIN,SNAP

554A0600

Unavailable

555

PIN-SPRING

555A0436

$3.74

92075D

DAMPER,RUBBER

92075-261

$3.85

92093

SEAL

92093-1457

$6.81

92144

SPRING,SEAT HOOK

92144-1174

$5.92

92151

BOLT,6MM

92151-1317

Unavailable

92160A

DAMPER

92160-1846

Unavailable

92160C

DAMPER

92160-1946

$7.80

92200

WASHER,3.5X8X1

92200-1251

$0.84

92200A

WASHER,5.5X12X0.8

92200-1416

Unavailable

92075B

DAMPER,FUEL TANK,RR

92075-1483

$10.73

92075C

DAMPER,BATTERY

92075-1997

$8.75

92160

DAMPER

92160-1744

$4.85

92160B

DAMPER,BATTERY

92160-1926

Unavailable
