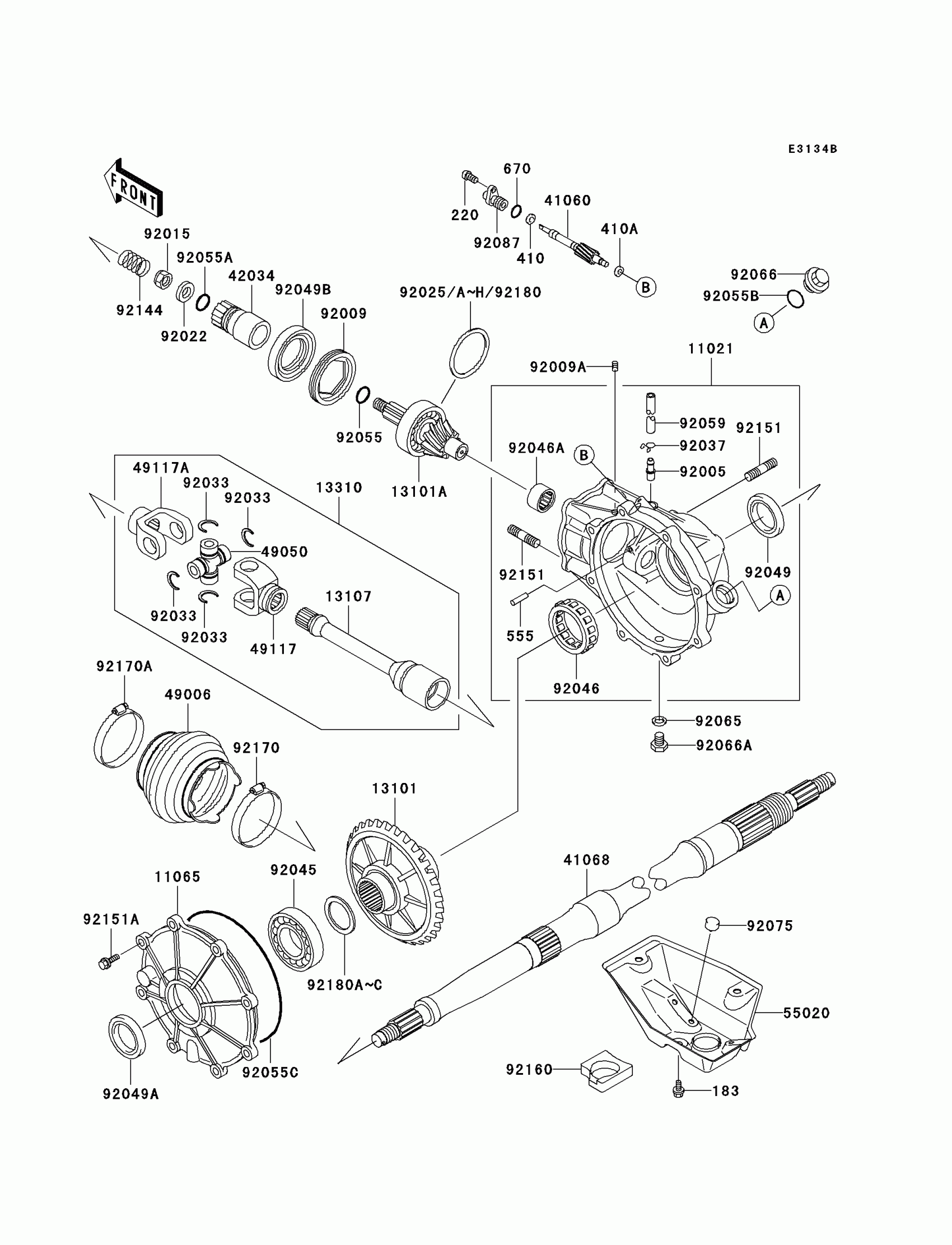

Kawasaki Prairie 300 4X4 Drive Shaft(Rear) Diagram

#

Description
Price

11021

CASE-ASSY,DRIVE SHAFT

11021-1128

Unavailable

11065

CAP

11065-1103

$214.71

13101

GEAR-ASSY,39T

13101-1277

$373.44

13101A

GEAR-ASSY,9T

13101-1283

$272.46

13107

SHAFT,DRIVE

13107-1408

$188.62

13310

SHAFT-ASSY,DRIVE

13310-1024

Unavailable

41060

GEAR-METER SCREW

41060-1157

Unavailable

41068

AXLE

41068-1388

$437.72

42034

COUPLING

42034-1145

$149.34

49006

BOOT

49006-1307

$27.35

49050

SPIDER

49050-1002

$141.20

49117

YOKE,DRIVE

49117-1085

$58.98

49117A

YOKE,DRIVE

49117-1086

$58.98

55020

GUARD

55020-1551

Unavailable

92005

FITTING,BREATHER

92005-1127

$16.10

92009

SCREW

92009-1528

Unavailable

92009A

SCREW,6X12

92009-1896

$2.10

92015

NUT,12MM

92015-1182

$7.69

92022

WASHER,12.3X25X3.2

92022-1293

$5.75

92025

SHIM,52.5X61.5X0.15

92025-1669

Unavailable

92025A

SHIM,52.5X61.5X0.18

92025-1670

Unavailable

92025B

SHIM,52.5X61.5X0.8

92025-1671

Unavailable

92025C

SHIM,52.5X61.5X0.9

92025-1672

Unavailable

92025D

SHIM,52.5X61.5X1.0

92025-1673

Unavailable

92025E

SHIM,52.5X61.5X1.1

92025-1674

Unavailable

92025F

SHIM,52.5X61.5X1.2

92025-1675

Unavailable

92025G

SHIM,52.5X61.5X1.3

92025-1676

Unavailable

92025H

SHIM,52.5X61.5X1.4

92025-1677

Unavailable

92033

RING-SNAP

92033-1030

$3.15

92037

CLAMP,TUBE

92037-147

$5.61

92045

BEARING-BALL,#6009

92045-1015

$35.46

92046

BEARING-NEEDLE

92046-1247

$47.66

92046A

BEARING-NEEDLE

92046-1265

$45.09

92049

SEAL-OIL

92049-1248

$17.15

92049A

SEAL-OIL

92049-1287

$9.95

92049B

SEAL-OIL

92049-1460

$19.58

92055

RING-O

92055-012

$0.82

92055A

RING-O,27MM

92055-1119

$3.81

92055B

RING-O,25.7X2.4

92055-1136

$3.81

92055C

RING-O,160X2.6

92055-1599

Unavailable

183

BOLT-UPSET-WS-SMALL

183H0814

$0.76

220

SCREW-PAN-CROS

220X0614

Unavailable

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

555

PIN-SPRING

555A0422

$4.61

670

O RING,12MM

670B2012

$2.22

92059

TUBE,4.7X9.5X900

92059-1929

$8.85

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-1303

$9.85

92066A

PLUG,DRAIN,10X8

92066-1490

Unavailable

92075

DAMPER

92075-021

$4.61

92087

BUSHING-METER GEAR

92087-1057

$22.88

92144

SPRING

92144-1278

$3.95

92151

BOLT

92151-1424

$3.97

92151A

BOLT,8X25

92151-1506

$2.68

92160

DAMPER

92160-1956

$8.32

92170

CLAMP

92170-1676

$7.04

92170A

CLAMP

92170-1764

$8.62

92180

SHIM,52.5X61.5X0.10

92180-1115

Unavailable

92180A

SHIM,T=1.0

92180-1205

Unavailable

92180B

SHIM,T=0.1

92180-1206

Unavailable

92180C

SHIM,T=0.5

92180-1207

Unavailable
