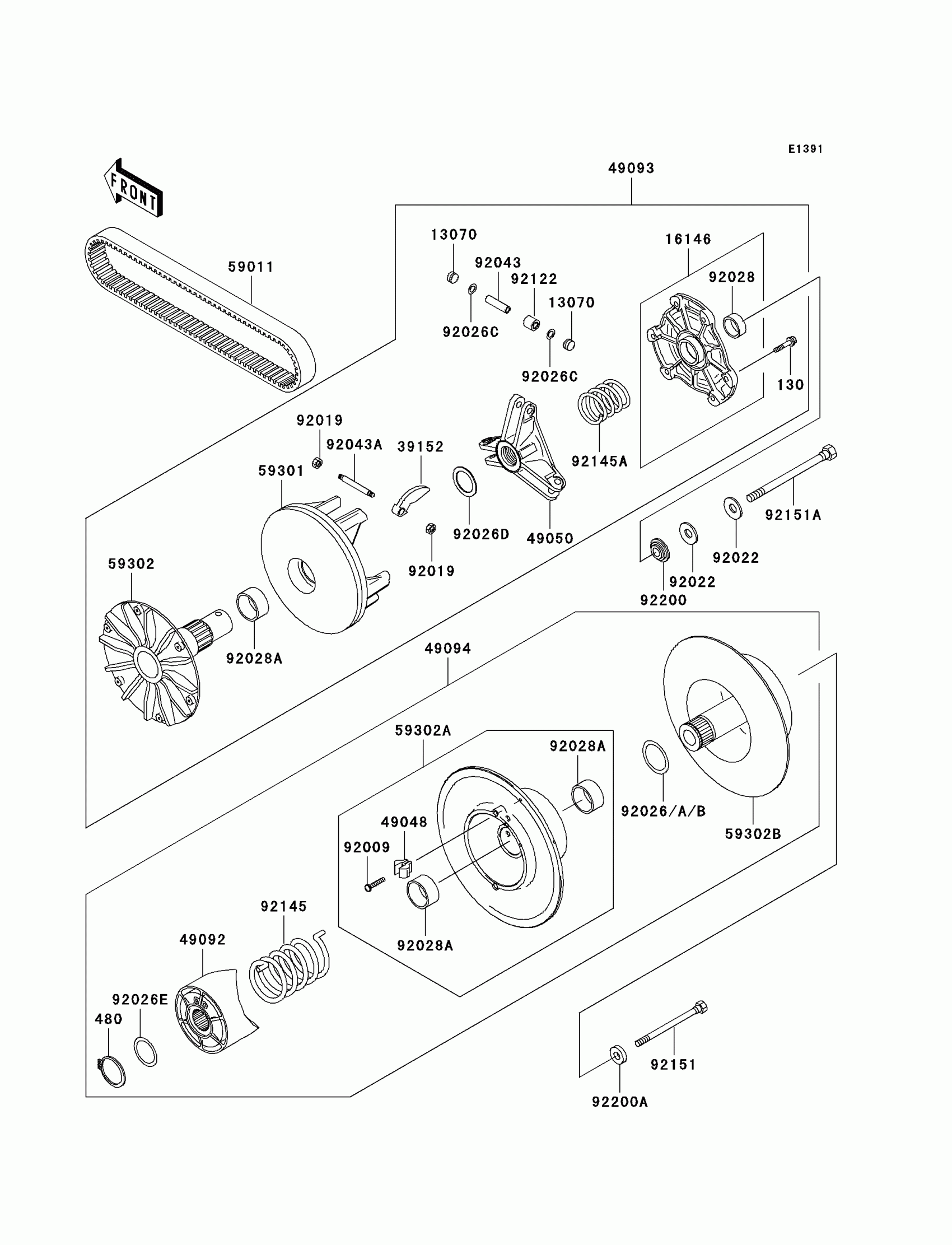

Kawasaki Prairie 300 4X4 Drive Converter Diagram
#
130
BOLT-FLANGED,6X30
130P0630
$2.33
480
CIRCLIP
480J3400
$2.31
13070
GUIDE
13070-1330
$27.61
16146
COVER-ASSY
16146-1194
$60.93
39152
WEIGHT-RAMP
39152-1061
$42.80
49048
SHOE
49048-1060
$6.22
49050
SPIDER
49050-1064
$140.29
49092
RAMP
49092-1063
$59.13
49093
CONVERTER-ASSY-DRIVE
49093-1059
$888.41
49094
CONVERTER-ASSY-DRIVEN
49094-1058
$636.51
59011
BELT
59011-1065
$118.78
59301
SHEAVE-MOVABLE
59301-1060
Unavailable
59302
SHEAVE-COMP,FIXED
59302-1070
$351.53
59302A
SHEAVE-COMP,MOVABLE
59302-1072
$375.29
59302B
SHEAVE-COMP,FIXED
59302-1073
Unavailable
92009
SCREW,SHOE
92009-1849
$2.46
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER,SPECIAL CONICAL
92022-1901
$6.57
92026
SPACER,39X50X0.50
92026-1507
Unavailable
92026A
SPACER,39X50X0.60
92026-1508
Unavailable
92026B
SPACER,39X50X0.80
92026-1510
Unavailable
92026C
SPACER
92026-1512
$1.59
92026D
SPACER,32.3X44.3X1.60
92026-1520
$7.81
92026E
SPACER,34X44X0.80
92026-1521
$5.00
92028
BUSHING
92028-1861
$7.26
92028A
BUSHING
92028-1864
$8.90
92043
PIN
92043-1572
$3.94
92043A
PIN
92043-1573
$13.04
92122
ROLLER
92122-1202
$6.29
92145
SPRING,CONVERTER DRIVEN
92145-1129
$26.56
92145A
SPRING,CONVERTER DRIVE
92145-1187
$25.61
92151
BOLT,10X95
92151-1315
$7.31
92151A
BOLT,12X165
92151-1393
$24.22
92200
WASHER
92200-1401
$16.64
92200A
WASHER,10.2X37X5.0
92200-1402
$15.60
