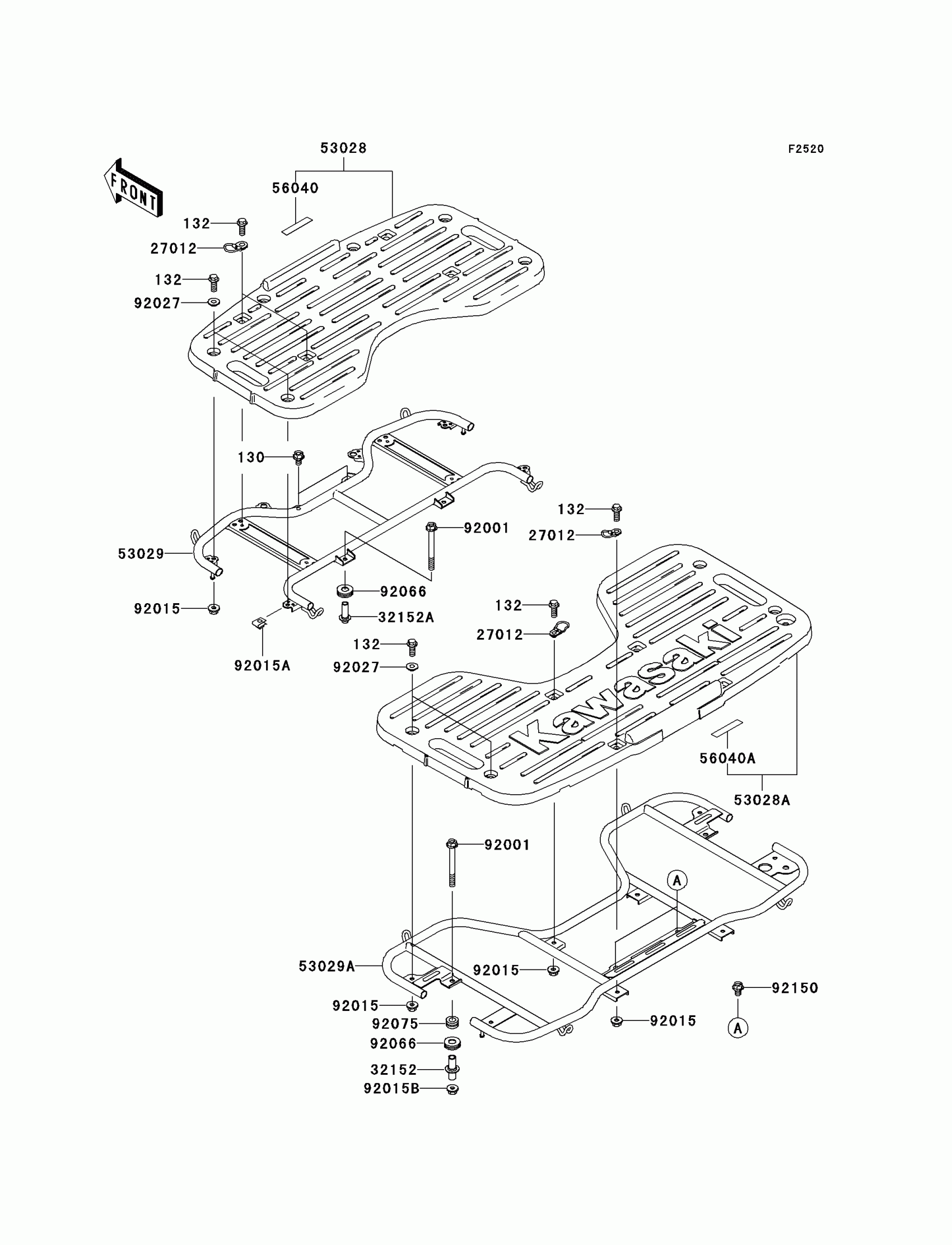

Kawasaki Prairie 300 4X4 Carrier(s) Diagram

Description

Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

132

BOLT-FLANGED-SMALL,8X20

132J0820

Unavailable

27012

HOOK

27012-1577

$13.71

32152

PIPE,REAR CARRIER

32152-1066

$11.34

32152A

PIPE,FRONT CARRIER

32152-1067

$9.85

53028

CARRIER-ASSY,FR,F.BLACK

53028-1093-6Z

$191.48

53028A

CARRIER-ASSY,RR,F.BLACK

53028-1094-6Z

Unavailable

53029

CARRIER,FR

53029-1197

$66.32

53029A

CARRIER,RR

53029-1198

$136.98

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1321

$3.24

56040A

LABEL-WARNING,MAXIMUM LOAD

56040-1322

$3.24

92001

BOLT,FLANGED,8X75,BLA

92001-1642

$6.08

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$4.07

92015A

NUT,CLIP,8MM

92015-1691

$8.58

92015B

NUT,FLANGED,LOCK,8MM

92015-1696

$3.55

92027

COLLAR

92027-1908

$8.37

92066

PLUG

92066-1438

$3.91

92075

DAMPER

92075-1086

Unavailable

92150

BOLT,8X12

92150-1780

$3.98
