TRACK - SUSPENSION

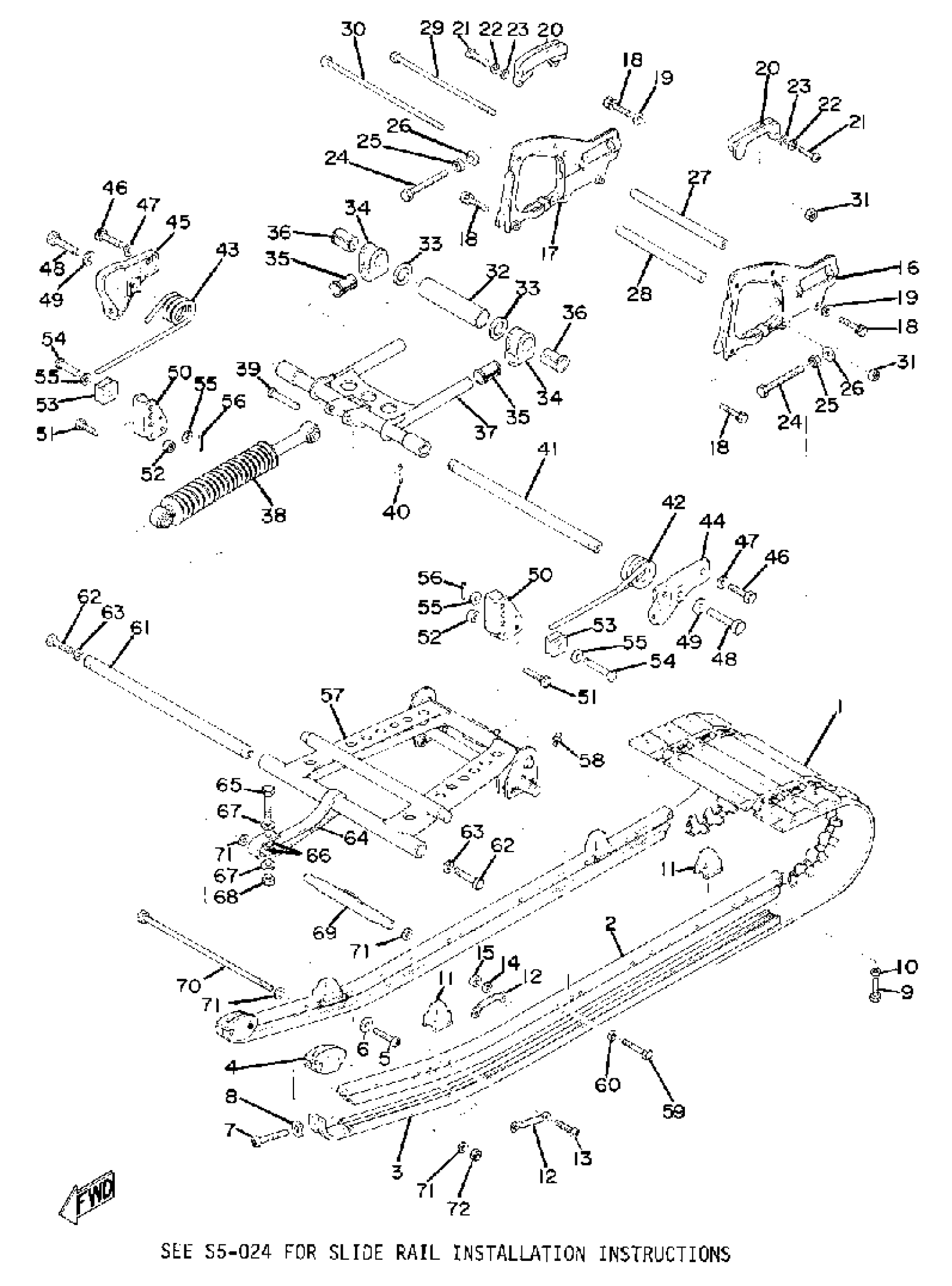

Yamaha PR440 1976 TRACK - SUSPENSION Diagram
#
1
TRACK ASSEMBLY
(890-47110-00-00)
Unavailable
2
FRAME, SLIDING 1
(8A1-47411-00-00)
Unavailable
3
RUNNER, SLIDING 1 (890-47421-00)
890-47421-90-XX
Unavailable
4
RUNNER, SLIDING 3
885-47423-00-00
Unavailable
5
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
6
WASHER, PLATE 8221447500
90201-06057-00
$5.60
7
SCREW PAN HEAD
98580-06040-00
$8.49
8
WASHER, PLATE
90201-06M02-00
Unavailable
9
BOLT(3RV)
97014-06035-00
$2.75
10
WASHER, SPRING
92995-06100-00
Unavailable
11
DAMPER 2
885-47457-00-00
Unavailable
12
PLATE, DAMPER
885-47458-01-00
Unavailable
13
SCREW, PAN HEAD
98517-05030-00
$10.49
14
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
15
NUT, HEXAGON (663)
95380-05600-00
$8.49
16
FRAME, SLIDING 2
(885-47412-00-00)
Unavailable
17
FRAME, SLIDING 3
(885-47413-00-00)
Unavailable
18
BOLT, WITH WASHER
90119-08008-00
Unavailable
19
WASHER, PLATE
90201-08020-00
Unavailable
20
RUNNER, SLIDING
8E3-47422-00-00
Unavailable
21
SCREW PAN HEAD
98580-06020-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
24
BOLT, HEXAGON (899 TRACK)
90101-10293-00
Unavailable
25
NUT (682)
95380-10700-00
Unavailable
26
WASHER, PLATE
92990-10600-00
Unavailable
27
COLLAR (899 SUSPENSION)
90387-08497-00
Unavailable
28
COLLAR (899 SUSPENSION)
90387-08496-00
Unavailable
29
BOLT, HEXAGON (97101-08245)
97321-08245-00
Unavailable
30
BOLT (8M8)
90101-08374-00
Unavailable
31
NUT, U
95617-08100-00
Unavailable
32
COLLAR
(90387-25471-00)
Unavailable
33
WASHER, PLATE
90201-25499-00
Unavailable
34
SLIDER 1
885-47441-00-00
Unavailable
35
BUSH, SPEC''L NYLON
90386-19081-00
Unavailable
36
BUSH, SPEC''L NYLON
(90386-25082-00)
Unavailable
37
ARM, PIVOT 2
(890-47332-00-00)
Unavailable
38
SHOCK ABSORBER
(8A0-47480-00-00)
Unavailable
39
PIN, CLEVIS(8N0)
90240-12115-00
Unavailable
40
PIN, COTTER
91490-30030-00
Unavailable
41
SHAFT 2
(899-47475-00-00)
Unavailable
42
SPRING, TORSION
90508-99296-00
Unavailable
43
SPRING, TORSION
90508-99297-00
Unavailable
44
BRACKET, REAR 1
(890-47426-00-00)
Unavailable
45
BRACKET, REAR 2
(890-47425-00-00)
Unavailable
46
BOLT(JA9)
90101-08691-00
Unavailable
47
WASHER, CONICAL SPRING
90208-08011-00
Unavailable
48
BOLT (8J7)
97013-10030-00
Unavailable
49
WASHER 823214910000
90208-10012-00
Unavailable
50
BRACKET 5
890-47463-00-00
Unavailable
51
BOLT
97013-08035-00
Unavailable
52
UNAVAILABLE IN PRICE BOOK
92601-08100-00
Unavailable
53
HOOK 2
890-47447-00-00
Unavailable
54
PIN WITH HOLE (890)
90249-12113-00
Unavailable
55
WASHER, PLATE
90201-12047-00
Unavailable
56
PIN, COTTER
91490-30030-00
Unavailable
57
ARM, PIVOT 1
(8A1-47331-01-00)
Unavailable
58
NIPPLE, GREASE
93700-06M03-00
Unavailable
59
BOLT(3RV)
97014-06035-00
$2.75
60
WASHER, SPRING
92995-06100-00
Unavailable
61
SHAFT 1
899-47465-00-00
Unavailable
62
BOLT (8J7)
97013-10030-00
Unavailable
63
WASHER 823214910000
90208-10012-00
Unavailable
64
STOPPER 1
890-47495-01-00
Unavailable
65
BOLT(3RV)
97014-06035-00
$2.75
66
WASHER, PLATE
90201-06747-00
Unavailable
67
WASHER PLATE 137241870000
90201-06072-00
Unavailable
68
NUT, SELF-LOCKING
95617-06100-00
Unavailable
69
BRACKET 1
899-47415-00-00
Unavailable
70
BOLT (8M8)
90101-08374-00
Unavailable
71
.. WASHER, PLATE
92990-08600-00
Unavailable
72
NUT, U
95617-08100-00
Unavailable
